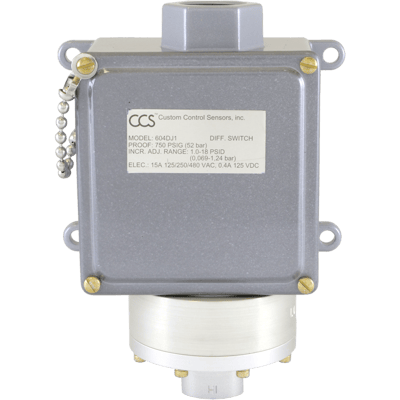

Images are representations only.

604DZJ2-7011

Series: 604DZ-7011 Series Pressure Switch Brand: Custom Control Sensors

CCS DUAL-SNAP Differential Pressure Switch, Non-Haz. Area, 1/4" NPT SST Port & Diaphragm, Viton

Price
Request a Quote
Stock
5 - 7 weeks
Request Information
  • Adjustable Set Point Range:
  • Increasing: 9 to 75 psid,
  • Decreasing: 3 to 69 psid,

  • Deadband: Approximately 6 psi,
  • System Pressure (Maximum): 400 psig, 2757.90 kPa, 28 bar
  • Proof Pressure:
    • Both Ports: 750 psig, 5171.07 kPa, 52 bar
    • High: 400 psig, 2757.90 kPa, 28 bar
    • Low: 100 psig, 689.47 kPa, 6.9 bar

  • Wetted Materials:
    • Pressure Port: 1/4" FNPT 300 Stainless Steel
    • Diaphragm: Stainless Steel
    • O-Ring: Viton

  • Relay: SPDT
  • UL, CSA, CRN, CE Mark, General Purpose



ACTIVATION REQUIRED




MINIMUM PURCHASE 5 PCS
  • Adjustable Set Point Range:
  • Increasing: 9 to 75 psid,
  • Decreasing: 3 to 69 psid,

  • Deadband: Approximately 6 psi,
  • System Pressure (Maximum): 400 psig, 2757.90 kPa, 28 bar
  • Proof Pressure:
    • Both Ports: 750 psig, 5171.07 kPa, 52 bar
    • High: 400 psig, 2757.90 kPa, 28 bar
    • Low: 100 psig, 689.47 kPa, 6.9 bar

  • Wetted Materials:
    • Pressure Port: 1/4" FNPT 300 Stainless Steel
    • Diaphragm: Stainless Steel
    • O-Ring: Viton

  • Relay: SPDT
  • UL, CSA, CRN, CE Mark, General Purpose



ACTIVATION REQUIRED




MINIMUM PURCHASE 5 PCS
Close

Specifications

Brand

Adjustment Type

  • Field Adjustable

Approvals & Certifications

  • CE
  • CRN
  • CRN - Alberta
  • CRN - British Columbia
  • CRN - Manitoba
  • CRN - N.W. Territories
  • CRN - Saskatchewan
  • CSA
  • cUL
  • EMC
  • LVD
  • PED
  • RoHS
  • UL

Deadband, Approximate

  • bar: 0.103 to 0.414
  • kPa: 10.4 to 41.3
  • psi: 1.5 to 6

Diaphragm Material

  • Stainless Steel

Electrical Connectors

  • Terminal Strip - Internal

Electrical Contacts

  • Gold
  • Silver

Electrical Rating

  • 1 A at 125 Vac, 50/60 Hz
  • 15 A at 125/250/480 Vac Resistive, 0.4 A at 125 DC, 0.2 A at 250 DC
  • 5 A at 125/250 Vac Resistive, 5 A at 28 Vdc, 0.5 A at 125 Vdc

Enclosure, Body Material

  • Aluminum

Environmental Protection

  • IP65
  • IP66
  • NEMA 13
  • NEMA 4, 13 / IP65, 66
  • Non-Hazardous Area

NACE & NIST

  • NACE

NPT Connection

  • 1/4” NPT Female

Operating Temperature

  • -40° to 86° C (-40° to 187° F)

O-Ring Material

  • Ethylene Propylene (EPR)
  • Viton

Process Connection Material

  • 316 Stainless Steel

Proof Pressure - Both Ports

  • bar: 52
  • kPa: 5,171
  • psig: 750

Proof Pressure - High Over Low

  • bar: 28
  • kPa: 2,758
  • psig: 400

Proof Pressure - Low Over High

  • bar: 6.9
  • kPa: 689.47
  • psig: 100

Service

  • Sweet (Oil & Gas)

Set Point - Decreasing

  • bar: 0.034 to 4.76
  • kPa: 3.5 to 475.7
  • psid: 0.5 to 69

Set Point - Increasing

  • bar: 0.138 to 5.2
  • kPa: 13.8 to 517.1
  • psid: 2 to 75

Standard Features

  • Internal Case Ground
  • Weatherproof

Switch Type

  • DPDT
  • SPDT

System Pressure

  • bar: 28
  • kPa: 2,758
  • psig: 400
Close
