MPX-E2-CN-P2WB-104-N-N1A2-S-0/98

Series: MPX-E/R Level Sensor Brand: Automation Products Group - APG

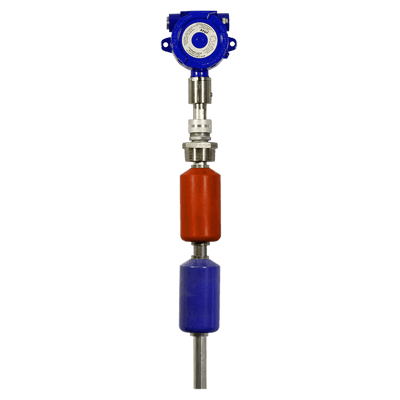

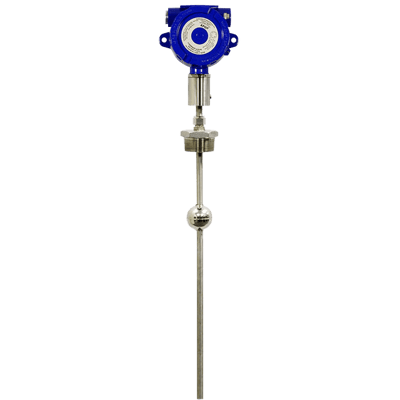

APG MPX Magnetostrictive Sensor, 4-20 mA, Loop Pwr 2-wire, 2" NPT Plug, Welded, 316L SST, 104" NCNR

Price
$1,557.78USD
Stock
4 - 6 weeks
Request Information
  • MPX: Explosion Proof Continuous Float Level Transmitter (Magnetostrictive)
  • E: Stem Type: 1/2” Diameter
  • 2: Output: Single float, 4-20 mA (loop powered, 2 wire)
  • C: Float 1: 316L SS Cylindrical (0.65 SG)
    • Top Float: 1.38H x 1.63W SS FL .65SG

  • N: Float 2: Not Required
  • P2: Process Connection: 2”NPT Plug, 150#
  • W: Mounting Connection: Welded (fixed)
  • B: Stem Material: 316L SS
  • 104: Stem Length in inches
  • End Plug: Flat End (Standard)
  • Float Stop: 1 Piece with set screw, top and bottom
  • Setpoint Type: Standard Locations
    • 4mA Set Point 0.00 inches from the bottom (0mm)
    • 20mA Set Point: 98 inches from the bottom (2489mm)

  • Operating Voltage: 12-24 V
  • Typical Current: 22mA
  • Operating Temperature: -40 to 85°C (-40 to 185°F)
  • Safety Rating: CSA Class 1 Div 1 Groups C & D
  • MPX: Explosion Proof Continuous Float Level Transmitter (Magnetostrictive)
  • E: Stem Type: 1/2” Diameter
  • 2: Output: Single float, 4-20 mA (loop powered, 2 wire)
  • C: Float 1: 316L SS Cylindrical (0.65 SG)
    • Top Float: 1.38H x 1.63W SS FL .65SG

  • N: Float 2: Not Required
  • P2: Process Connection: 2”NPT Plug, 150#
  • W: Mounting Connection: Welded (fixed)
  • B: Stem Material: 316L SS
  • 104: Stem Length in inches
  • End Plug: Flat End (Standard)
  • Float Stop: 1 Piece with set screw, top and bottom
  • Setpoint Type: Standard Locations
    • 4mA Set Point 0.00 inches from the bottom (0mm)
    • 20mA Set Point: 98 inches from the bottom (2489mm)

  • Operating Voltage: 12-24 V
  • Typical Current: 22mA
  • Operating Temperature: -40 to 85°C (-40 to 185°F)
  • Safety Rating: CSA Class 1 Div 1 Groups C & D
Close

Specifications

Brand

Accuracy

  • ± 0.05 % of Span

Approvals & Certifications

  • CSA Class I, Div. 1, Groups C, D T4 (Ta 84° C) Class I, Zone 1, AEx d IIB T4 Class I, Zone 2, AE

Communication

  • Interface with RS-485 Modbus RTU
  • Interface with RST-4100 Programming Module

Electrical Connectors

  • Terminal Block

Enclosure, Body Material

  • Aluminum, Epoxy Coated

Environmental Protection

  • IP65
  • IP66
  • NEMA 4X

Flange Size - 1” (DN 25)

  • 1” (DN 25) - 150#

Flange Size - 1-1/2” (DN 40)

  • 1-1/2” (DN 40) - 150#

Flange Size - 2” (DN 50)

  • 2” (DN 50) - 150#

Flange Size - 2-1/2” (DN 65)

  • 2-1/2” (DN 65) - 150#

Flange Size - 3” (DN 80)

  • 3” (DN 80) - 150#

Flange Size - 3-1/2” (DN 90)

  • 3-1/2” (DN 90) - 150#

Flange Size - 4” (DN 100)

  • 4” (DN 100) - 150#

Flange Size - 5” (DN 125)

  • 5” (DN 125) - 150#

Flange Size - 6” (DN 150)

  • 6” (DN 150) - 150#

NPT Connection

  • 1” NPT Male
  • 1-1/2” NPT Male
  • 2” NPT Male
  • 2-1/2” NPT Male
  • 3” NPT Male
  • 3-1/2” NPT Male
  • 4” NPT Male
  • 5” NPT Male
  • 6” NPT Male

Operating Temperature

  • -40° to 85° C (-40° to 185° F)

Output

  • 4-20 mA

Resolution

  • 0.04” (1 mm)

Sensor, Probe Style

  • Float

Supply Voltage

  • 12-24 Vdc

Tri-Clamp Connection

  • 1” Sanitary Clamp
  • 1-1/2” Sanitary Clamp
  • 2” Sanitary Clamp
  • 2-1/2” Sanitary Clamp
  • 3” Sanitary Clamp
  • 3-1/2” Sanitary Clamp
  • 4” Sanitary Clamp
  • 5” Sanitary Clamp
  • 6” Sanitary Clamp
