Images are representations only.

PG10-100-PSIG-F6-L0-E0-C0-P0-N1

Series: PG10 Digital Pressure Gauge Brand: Automation Products Group - APG

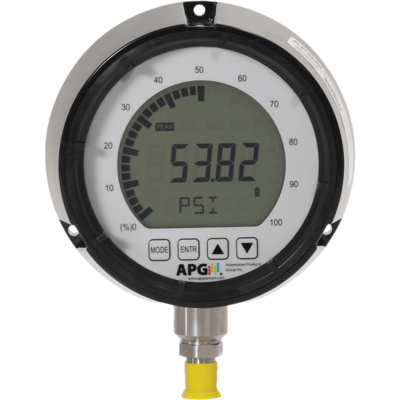

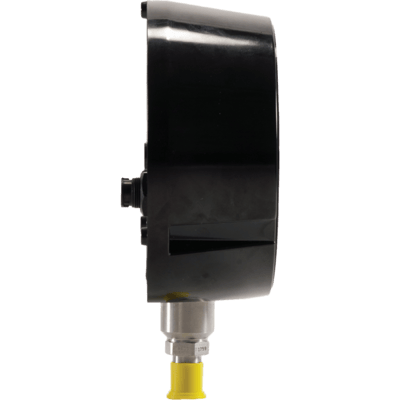

APG PG10 Digital Pressure Gauge, 100 PSIG, Rear Port w/Panel Bracket Inst, No Relay, 1/4-18 NPTM

Price
$859.12USD
Stock
3 - 5 weeks
Request Information
PG10 Series Digital Pressure Gauge
  • Pressure Range: 100
  • Pressure Type: PSIG
  • Pressure Port F6: Rear with panel brack (512600) Installed
  • Operation L0-E0: (2) AA Batteries
  • Relays C0: No Solid-State Relays
  • Process Connection P0: 1/4"-18 NPT Male
  • Accuracy N1: ±0.25% Full Scale Linear Accuracy + NIST Certificate.
  • Temperature Range:
    • Compensated: -7°C to +45°C (+20°F to +130°F)
    • Storage: -40°C to +71°C (-40°F to +160°F)
    • Operating: -18°C to +71°C (0°F to +160°F)

  • CE Approved
PG10 Series Digital Pressure Gauge
  • Pressure Range: 100
  • Pressure Type: PSIG
  • Pressure Port F6: Rear with panel brack (512600) Installed
  • Operation L0-E0: (2) AA Batteries
  • Relays C0: No Solid-State Relays
  • Process Connection P0: 1/4"-18 NPT Male
  • Accuracy N1: ±0.25% Full Scale Linear Accuracy + NIST Certificate.
  • Temperature Range:
    • Compensated: -7°C to +45°C (+20°F to +130°F)
    • Storage: -40°C to +71°C (-40°F to +160°F)
    • Operating: -18°C to +71°C (0°F to +160°F)

  • CE Approved
Close

Specifications

Brand

Accuracy

  • ± 0.1 % of Span
  • ± 0.25 % of Span

Approvals & Certifications

  • CE

BSP Connection

  • 1/4” BSP Male

Compensated Temperature

  • -7° to 54° C (20° to 130° F)

Display

  • 5-Digit LCD

Enclosure, Body Material

  • Weather-Resistant Injected Molded Phenolic Plastic

Environmental Protection

  • IP65

Mounting

  • Bottom Mounting
  • Rear Mounting
  • Rear Mounting with Panel Bracket

NACE & NIST

  • NIST Certification (Select Ranges)

NPT Connection

  • 1/4” NPT Male
  • 1/8” NPT Female

Operating Temperature

  • -18° to 71° C (0° to 160° F)

Output

  • 0 to 2 Vdc
  • 0-5 Vdc
  • 4-20 mA

Pressure Range

  • bar: 0 to 68.9
  • kPa: 0 to 6,894
  • psi: 0 to 10,000

Pressure Type

  • Gauge

Relay Operation

  • Solid State Relays

SAE Connection

  • 7/16”-20 SAE Male

Size

  • Face: 5.45”

Storage Temperature

  • -40° to 71° C (-40° to 160° F)

Supply Voltage

  • 3.6 V Lithium
  • 9-28 Vdc
  • 9 V Lithium Battery

Switch Type

  • SPDT

Wetted Materials

  • 316L Stainless Steel
Close
