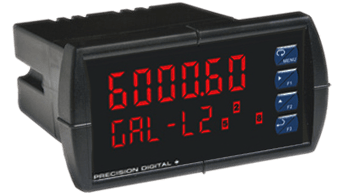

Images are representations only.

PD6000-6R3

Series: PD6000 ProVu Process Meter Brand: Precision Digital Corporation

PRECISION DIGITAL ProVu Process Meter, 85-265 VAC, 4-20 mA Output

Price
$497.63USD
Stock
2 - 4 weeks
Request Information
  • ProVu Dual-Line Process Meter
  • Display:
    • ​Upper: 0.60" (14mm) 6 Digit Red LED
    • Lower: 0.46" (12mm) 6 Digit Red LED

  • Performance:
    • ​Signal input conditioning for flow & round
    • Multi-pump alternation control

  • Inputs:
    • Field Selectable Analog
    • 0-20 mA
    • 4-20 mA
    • ±10 VDC (0-5, 1-5, 0-10 V)
    • Modbus PV (Slave)

  • Output: 4-20 mA Output
  • Power Supply: 85-265 VAC
  • Connections:
    • Screw Terminal Blocks
    • 12 to 22 AWG
    • RJ45
    • Digital I/O
    • Serial Communication Adapter

  • Communication Options:
    • I/O
    • Relay Expansion
    • Modbus Communication Modules

  • Operating Temperature: -40°C to +65°C (-40°F to + 149°F)
  • Enclosure Materials: Black high-impact plastic
  • Mounting:
    • 1/8 DIN Panel cutout required 3.622" x 1.772" (92mm x 45mm)
    • Two panel mounting bracket assemblies are provided

  • Environmental Protection:
    • NEMA 4X
    • IP65

  • Agency Approvals:
    • CE
    • c-UL

  • ProVu Dual-Line Process Meter
  • Display:
    • ​Upper: 0.60" (14mm) 6 Digit Red LED
    • Lower: 0.46" (12mm) 6 Digit Red LED

  • Performance:
    • ​Signal input conditioning for flow & round
    • Multi-pump alternation control

  • Inputs:
    • Field Selectable Analog
    • 0-20 mA
    • 4-20 mA
    • ±10 VDC (0-5, 1-5, 0-10 V)
    • Modbus PV (Slave)

  • Output: 4-20 mA Output
  • Power Supply: 85-265 VAC
  • Connections:
    • Screw Terminal Blocks
    • 12 to 22 AWG
    • RJ45
    • Digital I/O
    • Serial Communication Adapter

  • Communication Options:
    • I/O
    • Relay Expansion
    • Modbus Communication Modules

  • Operating Temperature: -40°C to +65°C (-40°F to + 149°F)
  • Enclosure Materials: Black high-impact plastic
  • Mounting:
    • 1/8 DIN Panel cutout required 3.622" x 1.772" (92mm x 45mm)
    • Two panel mounting bracket assemblies are provided

  • Environmental Protection:
    • NEMA 4X
    • IP65

  • Agency Approvals:
    • CE
    • c-UL

Close

Specifications

Brand

Alarm

  • Unused Alarm LEDs & Relays May be Disabled
  • User May Program Any Alarm for High or Low Trip Point

Approvals & Certifications

  • CE
  • c-UL

Calibration

  • +10 Volts: Min. Span Input 1 & 2: 0.10 Volts
  • 4-20 mA: Min. Span Input 1 & Input 2: 0.15 mA

Communication

  • Serial Communication Adapters

Deadband

  • 0 to 100 % of Span
  • User Programmable

Display

  • Red LEDs
  • Upper: 0.60” High, Lower: 0.46” High

Electrical Connectors

  • Digital I/O
  • Removable Terminal Block Accepts 12 to 22 AWG Wire
  • RJ45 for External Relays

Environmental Protection

  • IP65
  • IP66
  • NEMA 4X

Humidity

  • 0 to 90 % Non-Condensing

Isolation

  • 4 kV Input/Output-to-Power-Line
  • 500 V Input to Output or Output to P+ Supply

Mounting

  • 1/8” DIN Panel Cut-out Required. Two Panel Mounting Brackets Included.

Operating Temperature

  • -40° to 65° C (-40° to 150° F)

Output

  • 4-20 mA

Programming

  • Cloning Using Copy Function
  • Digital Inputs
  • Four Front Panel Buttons
  • Modbus Registers
  • PC & MeterView Pro Software

Rating

  • 2 or 4 SPDT Internal and/or 4 SPST External Relays

Relay Operation

  • Automatic (Non-Latching)
  • Latching (Requires Manual Acknowledge)
  • Off (Disable Unused Relays & Enable Interlock Feature, Manual ON/OFF Control Mode)
  • Pump Alternation Control (2 to 8 Relays)
  • Sampling (Based on Time)

Supply Voltage

  • 18-28 Vdc
  • 90-265 Vdc

Switch Type

  • SPDT

Inputs

  • Field Selectable Analog
  • 0-20 mA
  • 4-20 mA
  • ± 10 Vdc (0-5, 1-5, 0-10 V)
  • Modbus PV (Slave)
