Images are representations only.

15462E

Series: Model 15 Positive Bias Relay Brand: Fairchild Industrial Products

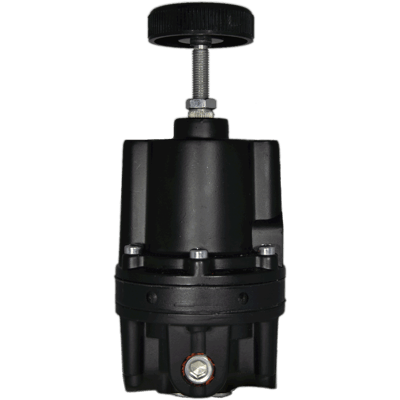

FAIRCHILD Model 15 Positive Relay, 2-150 psi, 1/4" NPT, Tapped Exhaust

Price
$807.52USD
Stock
6 - 8 weeks
Request Information
  • Set Point Range: 2-150 psig, 0.15-10 bar, 15-1000 kPa
  • Supply Pressure (Maximum): 250 psig, 17 bar, 1700 kPa
  • Ambient Temperature: -40°F to +200°F (-40°C to 93.3°C)
  • Pipe Size: 1/4" NPT
  • Options:
    • Tapped Exhaust

  • Materials of Construction:
    • Body & Housing: Aluminum Alloy
    • Trim: Stainless Steel, Brass, Zinc Plated Steel
    • Nozzle: Buna A & Dacron

  • Set Point Range: 2-150 psig, 0.15-10 bar, 15-1000 kPa
  • Supply Pressure (Maximum): 250 psig, 17 bar, 1700 kPa
  • Ambient Temperature: -40°F to +200°F (-40°C to 93.3°C)
  • Pipe Size: 1/4" NPT
  • Options:
    • Tapped Exhaust

  • Materials of Construction:
    • Body & Housing: Aluminum Alloy
    • Trim: Stainless Steel, Brass, Zinc Plated Steel
    • Nozzle: Buna A & Dacron

Close

Specifications

Brand

Ambient Temperature Range

  • -40° to 93° C (-40° to 200° F)

Enclosure, Body Material

  • Aluminum Alloy

Exhaust Capacity - Relieving Units Only

  • 40 scfm (68 m³/hour)

Flow Capacity

  • 150 scfm (255 m³/hour)

Mounting

  • Pipe or Panel

Pressure Range

  • bar: 0 to 0.7
  • bar: 0.03 to 2
  • bar: 0.1 to 4
  • bar: 0.15 to 10
  • kPa: 0 to 70
  • kPa: 10 to 400
  • kPa: 15 to 1,000
  • kPa: 3 to 200
  • psi: 0.5 to 30
  • psig: 1 to 60
  • psig: 2 to 150

Sensitivity

  • < 1/4” WC (0.64 cm)

Signal or Output Pressure - Maximum

  • bar: 10
  • kPa: 1,000
  • psig: 150

Supply Pressure - Maximum

  • bar: 17
  • kPa: 1,700
  • psig: 250

Supply Pressure Effect

  • psig: 0.1 (bar: 0.007, kPa: 0.7) for a psig: 100 (bar: 7, kPa: 700) Change in Supply Pressure
