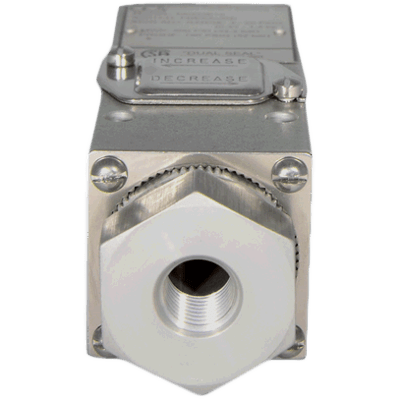

Images are representations only.
CCS DUAL-SNAP Piston Switch, Haz. Area, 1/4" NPT Aluminum Port, 400 SST, Buna-N, Teflon, ATEX
Price
Request a Quote
Stock
28 - 35 weeks
- Adjustable Set Point Range:
- Increasing: 150 to 1600 psig, 1034.3 to 11031.6 kPa, 10.3 to 110 bar
- Decreasing: 40 to 1490 psig, 275.8 to 10273.1 kPa, 2.8 to 103 bar
- Deadband: Approximately 110 psi, 758.42 kPa, 7.6 bar
- System Pressure (Maximum): 3000 psig, 20684.27 kPa, 207 bar
- Proof Pressure: 5000 psig, 34473.78 kPa, 345 bar
- Wetted Materials:
- Pressure Port: 1/4" FNPT Aluminum
- Piston: 400 Stainless Steel
- O-Ring: Buna N / Teflon
- Relay: SPDT
- UL, CSA, ATEX
- Explosion Proof - Class 1, Div/Zone 1, Groups A, B, C and D
- CRN, CE Mark
Description
- Adjustable Set Point Range:
- Increasing: 150 to 1600 psig, 1034.3 to 11031.6 kPa, 10.3 to 110 bar
- Decreasing: 40 to 1490 psig, 275.8 to 10273.1 kPa, 2.8 to 103 bar
- Deadband: Approximately 110 psi, 758.42 kPa, 7.6 bar
- System Pressure (Maximum): 3000 psig, 20684.27 kPa, 207 bar
- Proof Pressure: 5000 psig, 34473.78 kPa, 345 bar
- Wetted Materials:
- Pressure Port: 1/4" FNPT Aluminum
- Piston: 400 Stainless Steel
- O-Ring: Buna N / Teflon
- Relay: SPDT
- UL, CSA, ATEX
- Explosion Proof - Class 1, Div/Zone 1, Groups A, B, C and D
- CRN, CE Mark
Product Series Specifications
Specifications
Adjustment Type
- Field Adjustable
Approvals & Certifications
- ATEX
- CE
- CRN
- CRN - Alberta
- CRN - British Columbia
- CRN - Manitoba
- CRN - N.W. Territories
- CRN - Saskatchewan
- CSA
- cUL
- Dual Seal
- IEC Ex
- LVD
- PED
- RoHS
- RTN
- UL
Deadband, Approximate
- bar: 0.7 to 172
- kPa: 69.0 to 17,237
- psi: 10 to 2,500
Electrical - Free Leads
- 18” (45 cm) Free Leads
- 18” (45 cm) Teflon Leadwire
Electrical Assembly
- 316 Stainless Steel
- Hermetic Seal
Electrical Certification
- ATEX - SIRA Certified for Potentially Explosive Atmospheres. Models 6****Y, II 2 GD Ex d IIC, 08-ATEX-
- c-UL, UL/CSA Explosion-proof: Div. 1, 2 Hermetically Sealed Electrical Assembly P/N 46-1058 (46-1061 for M (DPDT) Model Option), Listed by Both Underwriter's Laboratories, Inc. (File No. E32961) & Canadian Standard Association (CSA) Testing Laboratories
- IECEx - SIRA Certified, SIR 10,0193X (Option Y)
Electrical Connectors
- 1/2” NPT Male
- M20 Male
Electrical Contacts
- Gold
- Silver
Electrical Rating
- 1 A at 125 Vac, 50/60 Hz
- 11 A at 125/250 Vac
Enclosure, Body Material
- Aluminum
- Stainless Steel
Environmental Protection
- Hazardous Area
- IP54
- IP66
- NEMA 13
- NEMA 4, 7, 9, 13 / IP54, 66
- NEMA 7
- NEMA 9
NACE & NIST
- NACE MR-0175: 2003
NPT Connection
- 1/4” NPT Female
Operating Temperature
- -40° to 86° C (-40° to 187° F)
O-Ring Material
- Buna-N, Teflon
- Ethylene Propylene (EPR)
- Viton
Piston Material
- 316 Stainless Steel
- Stainless Steel, 400 Series
Process Connection Material
- 316 Stainless Steel
- Aluminum
Proof Pressure
- bar: 207 to 1724
- kPa: 20,684 to 172,369
- psig: 3,000 to 25,000
Set Point - Decreasing
- bar: 0.35 to 931
- kPa: 34.5 to 93,079
- psig: 5 to 13,500
Set Point - Increasing
- bar: 1.03 to 1100
- kPa: 103.5 to 11,0316
- psig: 15 to 160,000
Switch Type
- DPDT
- SPDT
System Pressure
- bar: 138 to 1,172
- kPa: 13,790 to 117,211
- psig: 2,000 to 17,000
UNF/UNC Connection
- 7/16”-20 UNF Female
