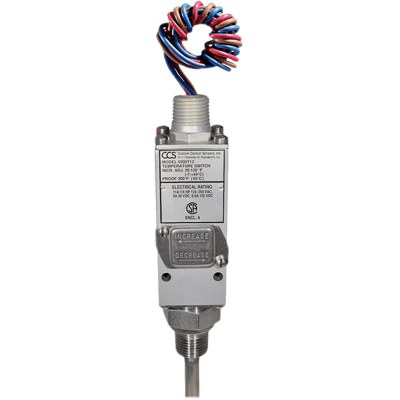

Images are representations only.
CCS DUAL-SNAP Temperature Switch, Non-Haz. Area, 1/2" NPT 300 SST Direct Mt., 2m Free Leads
Price
Request a Quote
Stock
28 - 35 weeks
- Adjustable Set Point Range:
- Increasing: +80°F to +205°F, +27°C to +96°C
- Decreasing: +60°F to +198°F, +16°C to +92°C
- Deadband: Approximately
- At Bottom of Range: 20°F, 11°C
- At Top of Range: 5°F, 4°C
- Probe Temperature (Maximum): +300°F, +149°C
- Probe Length / Width: 4.5" / 0.38"
- Wetted Materials:
- Temperature Probe: 300 Stainless Steel
- Free Leads: 2 meters
- Relay: SPDT
- CSA, CE Mark, General Purpose, CRN
Description
- Adjustable Set Point Range:
- Increasing: +80°F to +205°F, +27°C to +96°C
- Decreasing: +60°F to +198°F, +16°C to +92°C
- Deadband: Approximately
- At Bottom of Range: 20°F, 11°C
- At Top of Range: 5°F, 4°C
- Probe Temperature (Maximum): +300°F, +149°C
- Probe Length / Width: 4.5" / 0.38"
- Wetted Materials:
- Temperature Probe: 300 Stainless Steel
- Free Leads: 2 meters
- Relay: SPDT
- CSA, CE Mark, General Purpose, CRN
Product Series Specifications
Specifications
Adjustment Type
- Field Adjustable
Approvals & Certifications
- CE
- CRN
- CRN - Alberta
- CRN - British Columbia
- CRN - Manitoba
- CRN - N.W. Territories
- CRN - Saskatchewan
- CSA
- LVD
- PED
- RoHS
Conduit Connection
- M20 Explosion-proof
Deadband, Approximate - Bottom of Range
- 11° C (52° F)
- -7° C (20° F)
Deadband, Approximate - Top of Range
- -15° C (5° F)
- 4° C (39° F)
Electrical - Free Leads
- 18” (45 cm) Free Leads
- 18” (45 cm) Teflon Leadwire
Electrical Connectors
- 1/2” NPT Male
- 4-Blades. Confirms to DIN-43650
Electrical Contacts
- Gold
- Silver
Electrical Enclosure Certification
- CSA Listed by Canadian Standard Association (CSA) Testing Laboratories (File No. LR22665) for Enclosure
Electrical Rating
- 1 A at 125 Vac, 50/60 Hz
- 11 A at 125/250 Vac
Enclosure, Body Material
- Aluminum
- Stainless Steel
Environmental Protection
- IP54
- IP66
- NEMA 13
- NEMA 4, 13 / IP54, 66
Maximum Sensor, Probe Temperature
- 93° to 260° C (200° to 500° F)
NACE & NIST
- NACE
NPT Connection
- 1/2” NPT Male
Operating Temperature
- -40° to 86° C (-40° to 187° F)
O-Ring Material
- None
Proof Pressure
- bar: 103.4
- kPa: 10,342
- psig: 1,500
Sensor, Probe Material
- 300 Stainless Steel
Set Point - Decreasing
- -18° to 203° C
- -18° to 203° C (0° to 397° F)
Set Point - Increasing
- -7° to 207° C
- -7° to 207° C (20° to 405° F)
Standard Features
- Weatherproof
Switch Type
- DPDT
- SPDT
System Pressure
- bar: 86
- kPa: 8,618
- psig: 1,250
Product Series Documentation
Documentation
Data Sheets
Product Manuals
Certifications & Approvals
- Certifications & Approvals - CCS Approval Matrix (pdf) (34 KB)
- Certifications & Approvals - CCS CE Certificate of Declaration (pdf) (225 KB)
- Certifications & Approvals - CCS CRN Approval - Alberta (pdf) (126 KB)
- Certifications & Approvals - CCS CRN Approval - BC (pdf) (67 KB)
- Certifications & Approvals - CCS CRN Approval - Manitoba (pdf) (79 KB)
- Certifications & Approvals - CCS CRN Approval - NWT (pdf) (87 KB)
- Certifications & Approvals - CCS CRN Approval - Saskatchewan (pdf) (263 KB)
- Certifications & Approvals - CCS CSA Certification Record - Hazardous (pdf) (32 KB)
- Certifications & Approvals - CCS EMC Directive (pdf) (30 KB)
- Certifications & Approvals - CCS LVD - Low Voltage Directive (pdf) (98 KB)
- Certifications & Approvals - CCS NACE Declaration 2013 (pdf) (114 KB)
- Certifications & Approvals - CCS PED 2011 (pdf) (94 KB)
- Certifications & Approvals - CCS RoHS/REACH 2012 (pdf) (278 KB)
Installation Instructions
Simple Envelope Drawing
