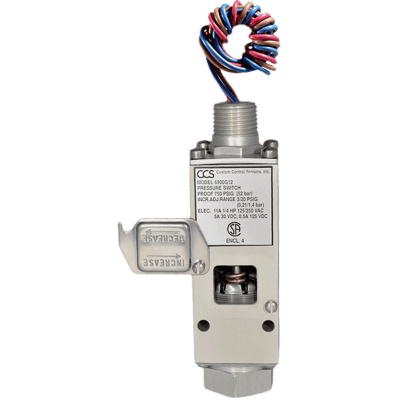

CCS DUAL-SNAP Pressure Switch, Non-Haz. Area, 1/2" NPT SST Port & Diaphragm, Viton
Price
Request a Quote
Stock
28 - 35 weeks
- Adjustable Set Point Range:
- Increasing: 45 to 375 psig, 310.2 to 2585 kPa, 3.1 to 25.9 bar
- Decreasing: 15 to 345 psig, 103.4 to 2378 kPa, 1.0 to 23.8 bar
- Deadband: Approximately 30 psi, 206.8 kPa, 2.0 bar
- System Pressure (Maximum): 1500 psig, 10342 kPa, 103 bar
- Proof Pressure: 2000 psig, 13789 kPa, 138 bar
- Wetted Materials:
- Pressure Port: 1/2" FNPT 316 Stainless Steel
- Diaphragm: 316 Stainless Steel
- O-Ring: Viton
- Relay: SPDT
- CSA, CRN, CE Mark, NACE, General Purpose
Description
- Adjustable Set Point Range:
- Increasing: 45 to 375 psig, 310.2 to 2585 kPa, 3.1 to 25.9 bar
- Decreasing: 15 to 345 psig, 103.4 to 2378 kPa, 1.0 to 23.8 bar
- Deadband: Approximately 30 psi, 206.8 kPa, 2.0 bar
- System Pressure (Maximum): 1500 psig, 10342 kPa, 103 bar
- Proof Pressure: 2000 psig, 13789 kPa, 138 bar
- Wetted Materials:
- Pressure Port: 1/2" FNPT 316 Stainless Steel
- Diaphragm: 316 Stainless Steel
- O-Ring: Viton
- Relay: SPDT
- CSA, CRN, CE Mark, NACE, General Purpose
Product Series Specifications
Specifications
Brand
Adjustment Type
- Field Adjustable
Approvals & Certifications
- CE
- CRN
- CRN - Alberta
- CRN - British Columbia
- CRN - Manitoba
- CRN - N.W. Territories
- CRN - Saskatchewan
- CSA
- LVD
- PED
- RoHS
Deadband, Approximate
- bar: 0.14 to 19.3
- kPa: 13.8 to 1,931
- psi: 2 to 280
Diaphragm Material
- Hastelloy C-276
- Monel
- Stainless Steel
Electrical - Free Leads
- 18” (45 cm) Free Leads
- 18” (45 cm) Teflon Leadwire
Electrical Certification
- CSA Listed by Canadian Standard Association (CSA) Testing Laboratories (File No. LR22665) for Enclosure (4) Non-hazardous Locations.
Electrical Connectors
- 1/2” NPT Male
- Electrical Connector with 4-Blades, Conforms to DIN-43650
- Electrical Connector with Gold Contacts & Blades, Conforms to DIN-43650
Electrical Contacts
- Gold
- Silver
Electrical Rating
- 1 A at 125 Vac, 50/60 Hz
- 11 A at 125/250 Vac
Enclosure, Body Material
- Aluminum
Environmental Protection
- IP65
- IP66
- NEMA 13
- NEMA 4, 13 / IP65, 66
- Non-Hazardous Area
NACE & NIST
- NACE MR-0175: 2003
NPT Connection
- 1/2” NPT Female Welded Diaphragm - Internal with Port Cavity
Operating Temperature
- -40° to 86° C (-40° to 187° F)
O-Ring Material
- Ethylene Propylene (EPR)
- None
- Viton
Process Connection Material
- 316 Stainless Steel
- Hastelloy C-276
- Monel
Proof Pressure
- bar: 51.7 to 310
- kPa: 5,171 to 31,026
- psig: 750 to 4,500
Service
- Sour (Oil & Gas)
Set Point - Decreasing
- bar: 0.07 to 215
- kPa: 6.9 to 21,512
- psig: 1 to 3,120
Set Point - Increasing
- bar: 0.21 to 234
- kPa: 20.7 to 23,442
- psig: 3 to 3,400
Standard Features
- Weatherproof
Switch Type
- DPDT
- SPDT
System Pressure
- bar: 34.5 to 207
- kPa: 3,447 to 20,684
- psig: 500 to 3,000
