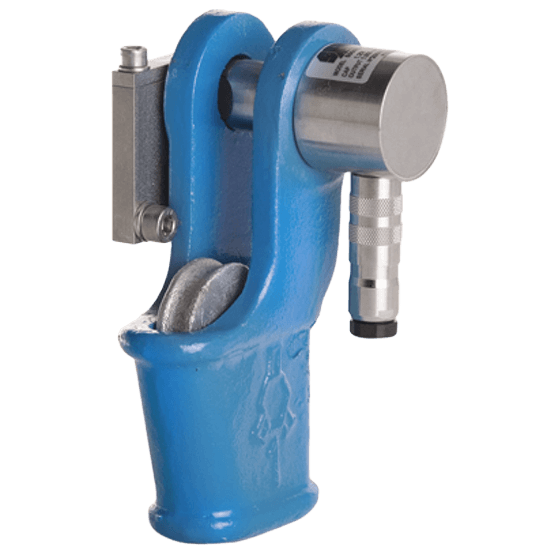

5000B/5600B Load Measuring Wedge Socket

Brand: Sensy S.A.
Load measuring wedge socket designed to measure the force applied on a cable.
Features
  • CE certified for hoisting applications
  • Sturdy design
  • Load-pin: stainless steel
  • Protection IP 65
  • Easy to install
  • Cable length: 6 m
  • Complete range of "CE" certified electronics and load limiters
  • Available options:
    • ATEX intrinsic safety Ex II 1GD Ex ia IIC T6 or T4 Ga Ex ia IIIC T80° C Da
    • Smplified output (V or mA)
    • Protection IP 68
show more
Load measuring wedge socket designed to measure the force applied on a cable.
Features
  • CE certified for hoisting applications
  • Sturdy design
  • Load-pin: stainless steel
  • Protection IP 65
  • Easy to install
  • Cable length: 6 m
  • Complete range of "CE" certified electronics and load limiters
  • Available options:
    • ATEX intrinsic safety Ex II 1GD Ex ia IIC T6 or T4 Ga Ex ia IIIC T80° C Da
    • Smplified output (V or mA)
    • Protection IP 68

Specifications

Brand

Applications

  • SL - HOIST: Hoisting Devices & Crane's Security in Combination with a Load Limitation Electronics

Approvals & Certifications

  • ATEX Intrinsic Safety Ex II 1 GD Ex Ia IIC T6 or T4 Ga Ex Ia IIIC T80° C Da
  • CE
  • CSA
  • IECEx

Cable Length

  • 19.69 feet (6 meters)

Capacity

  • 0.3 to 25 T (for Cable Diameter of 9 to 32 mm)
  • 0.3 to 8 T (for Cable Diameter of 9 to 22 mm)

Electrical Connectors

  • DIN 45322

Enclosure, Body Material

  • Stainless Steel

Environmental Protection

  • IP65
  • IP68

Excitation Voltage

  • 10 Vdc
  • 3-12 Vdc - Nominal Voltage

Insulation Resistance

  • > 5,000 MegaOhms

Load

  • > 500% of Full Scale - Breaking Load
  • 75% of Full Scale - Permissible Dynamic Loading

Load Limit

  • 200% of Full Scale

Repeatability

  • Error: <± 0.25% of Full Scale

Resistance

  • Input/Output: 352 ± 2 ohms

Sensitivity

  • Nominal Sensitivity: 1 mV/V

Service Temperature

  • -30 to 70° C (-22° to 158° F)

Static Lateral Force

  • 150% of Full Scale

Storage Temperature

  • -50 to 85° C (-58° to 185° F)

Temperature Coefficient

  • <± 0.2% of Full Scale/10° C (18° F)

Zero Balance

  • ± 0.02 mV/V
