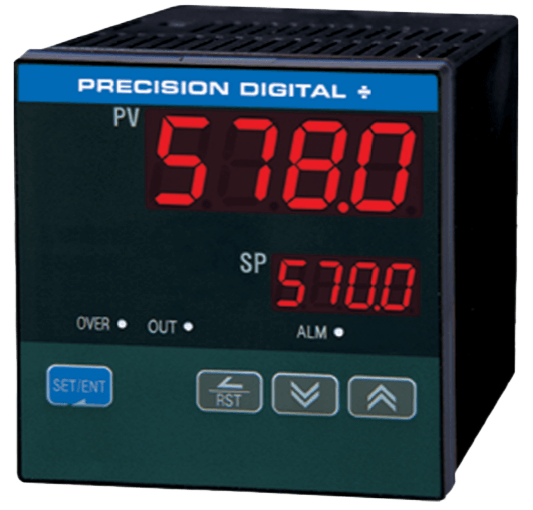

PD578 Controller

Brand: Precision Digital Corporation
The PD570 Series of Limit Controllers come equipped with a limit control latching relay, alarm relay, and a 4-20 mA retransmitting output. These standard features make the Limit Controller an excellent process monitoring tool. Serial communications for Modbus or PC monitoring software expands the Limit Controller’s capability.
Features
  • Thermocouple, rTD, & Process Input
  • Universal Power supply 100-240 VAc
  • Latching relay High or Low Limit control
  • 1 Latching relay & 1 Alarm relay
  • retransmitting 4-20 mA output
  • rs-485 serial communications option
  • Modbus® rTU/AscII communications
  • Free operating & Data Logging software
  • IP55 & IP65 Fronts
show more
The PD570 Series of Limit Controllers come equipped with a limit control latching relay, alarm relay, and a 4-20 mA retransmitting output. These standard features make the Limit Controller an excellent process monitoring tool. Serial communications for Modbus or PC monitoring software expands the Limit Controller’s capability.
Features
  • Thermocouple, rTD, & Process Input
  • Universal Power supply 100-240 VAc
  • Latching relay High or Low Limit control
  • 1 Latching relay & 1 Alarm relay
  • retransmitting 4-20 mA output
  • rs-485 serial communications option
  • Modbus® rTU/AscII communications
  • Free operating & Data Logging software
  • IP55 & IP65 Fronts

Specifications

Approvals & Certifications

  • CE
  • UL

Cold Junction Reference

  • Automatic
  • Off

Display

  • Dual 4-Digit Display
  • Red LEDs

Enclosure, Body Material

  • Impact-Resistant Plastic

Environmental Protection

  • IP55
  • IP65

Humidity

  • 20 to 90% Non to Condensing

Isolation

  • 2300 V Input/Output-to-Powerline
  • 4 kV Relay Output to Input/Output / Powerline

Mounting

  • 1/4" DIN

Operating Temperature

  • 10° to 50° C (50° to 122° F)

Operating Voltages

  • 50/60 Hz

Power

  • 10 W

Power Supply

  • 100 to 240 Vac

Storage Temperature

  • -40° to 85° C (-40° to 185° F)
