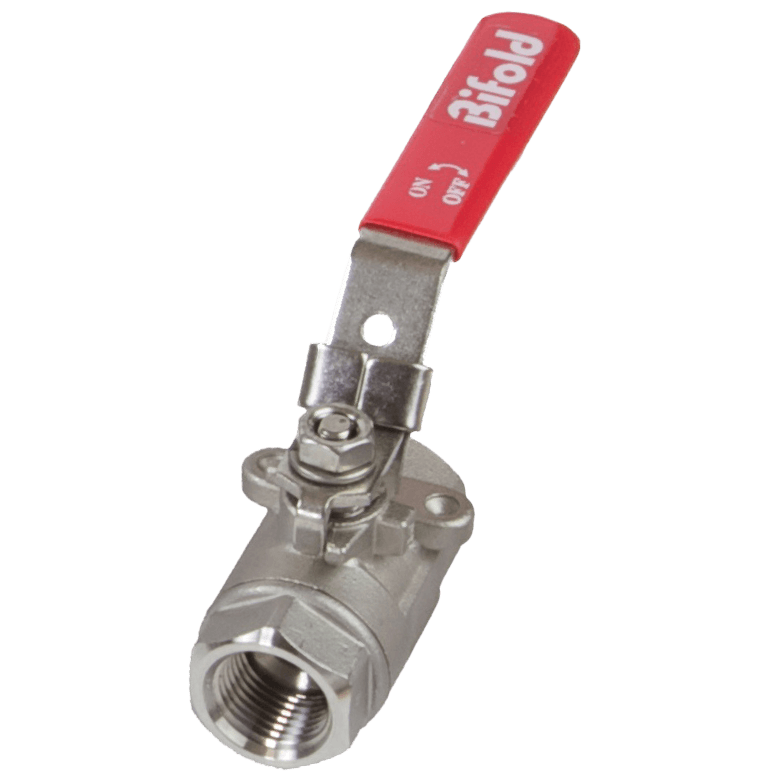

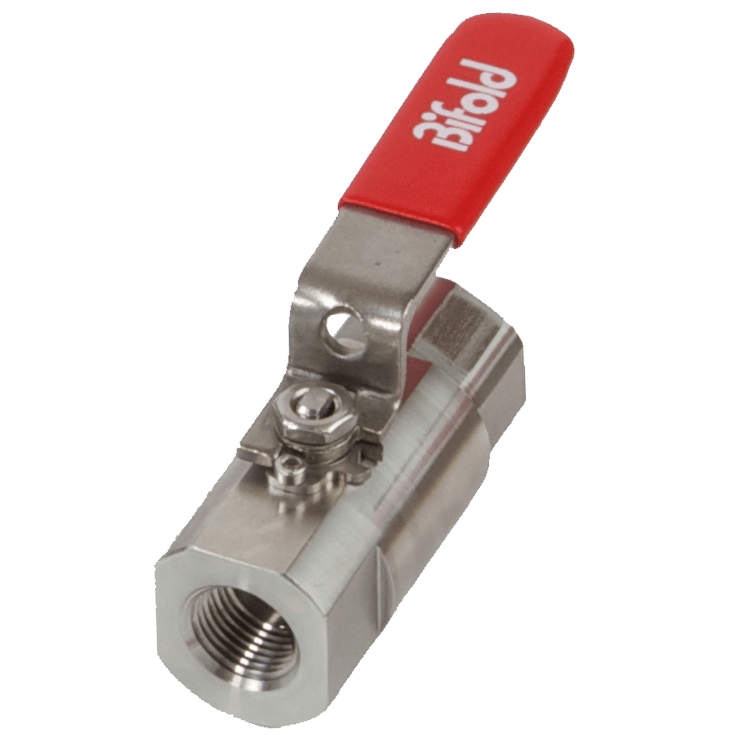

BV01 Single Isolation Ball Valve

Brand: Bifold Group
A Single Isolate Ball Valve with pressures rated up to 10,000 psi / 690 bar. The single isolating ball valve is designed to give bubble tight shut off through 90° operation across the full operating temperature range of the valve. Totally enclosed soft seats offer both positive sealing and low operating torques.
Features
  • Two piece construction reducing leak paths
  • Anti-blow out stem internally loaded
  • Bi-directional
  • Precision machined stainless steel ball
  • Lever type handle as standard
  • Compact design to save space and weight
  • Full material traceability and individual serial number stamped on the valve
  • RTFE stem seals and o-ring body seals
  • Thread milled connections for improved sealing
  • In complaince with NACE MR-01-75 / ISO 15156 as standard
  • Bubble tight shut-off
  • Low operating torque
  • Pressure energised stem sealing
  • Seal integrity maintained if handle is removed
show more
Images are representations only.
A Single Isolate Ball Valve with pressures rated up to 10,000 psi / 690 bar. The single isolating ball valve is designed to give bubble tight shut off through 90° operation across the full operating temperature range of the valve. Totally enclosed soft seats offer both positive sealing and low operating torques.
Features
  • Two piece construction reducing leak paths
  • Anti-blow out stem internally loaded
  • Bi-directional
  • Precision machined stainless steel ball
  • Lever type handle as standard
  • Compact design to save space and weight
  • Full material traceability and individual serial number stamped on the valve
  • RTFE stem seals and o-ring body seals
  • Thread milled connections for improved sealing
  • In complaince with NACE MR-01-75 / ISO 15156 as standard
  • Bubble tight shut-off
  • Low operating torque
  • Pressure energised stem sealing
  • Seal integrity maintained if handle is removed

BV01 Ball Valve

Nominal Pipe Size

Connection Type

Thread

Threaded Inlet / Outlet

Material

Bore Size

Seat Material

Seal Material

Pressure Rating

Handle Style

Mounting

Testing Options
