PDA2500 Series Plastic NEMA 4X Enclosures

Brand: Precision Digital Corporation
Request Information
Favorite

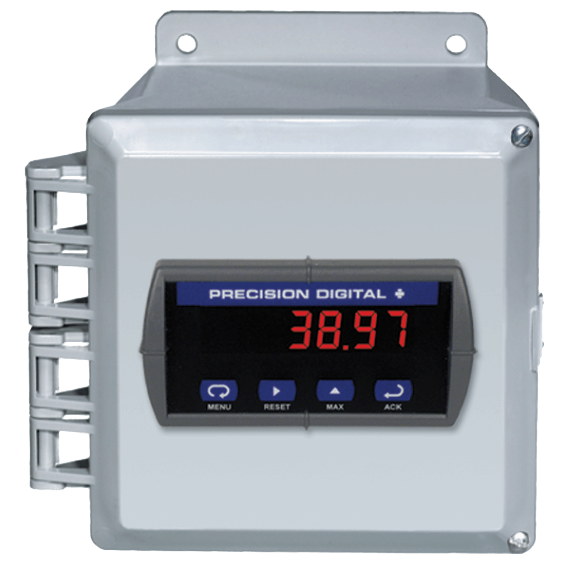

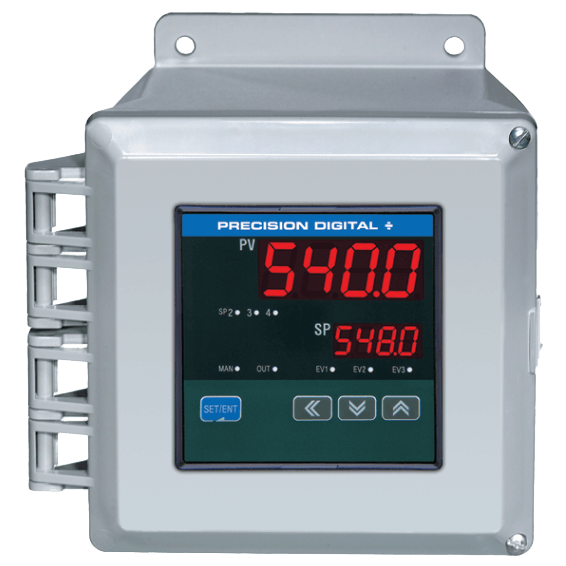

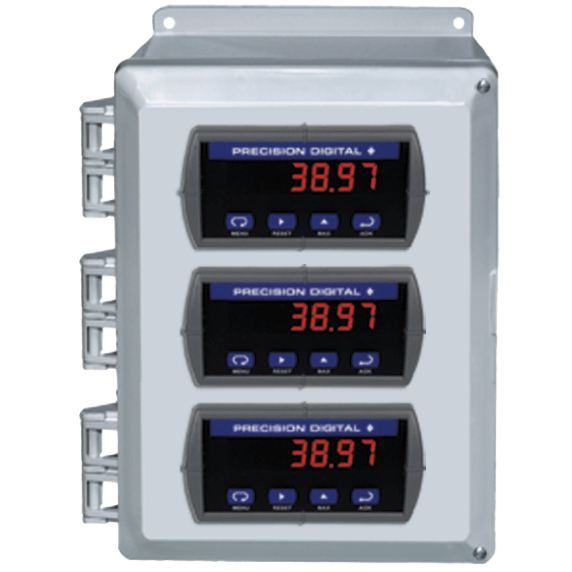

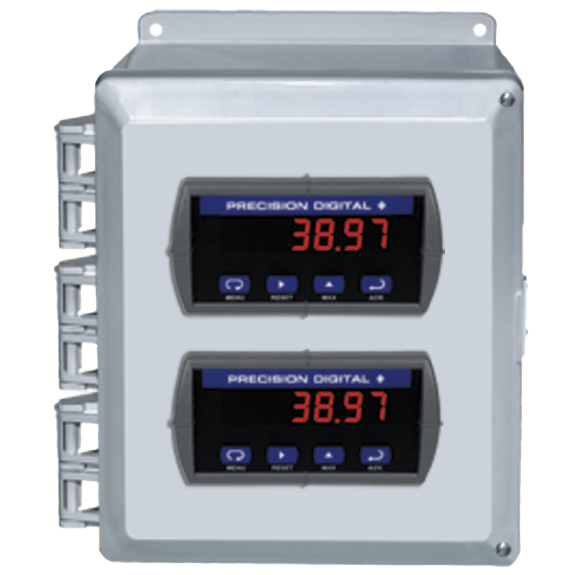

The PDA2500 series of rugged plastic NEMA 4X enclosures for 1/8 DIN Digital Panel Meters provide a convenient way to mount up to ten Precision Digital meters to walls and other vertical structures.

Many of these enclosures also have room for additional devices like a light / horn and a 24 V transmitter power supply. Sub-panels are available to mount additional devices to the base of the enclosure.

These enclosures come pre-cut with horizontal or vertical 1/16 DIN, 1/8 DIN and 1/4 DIN cutouts or they can be ordered with no cutouts.

The meters are mounted in the door of the enclosure thus allowing for programming and operation of the meter. Mounting hardware is provided. The door is hinged and secured with screws.

Enclosures, meters and accessories are ordered and packaged separately.
Features
  • House up to 10 Meters
  • Plastic
  • Horizontal, Vertical or No Cutouts
  • 1/16 DIN, 1/8 DIN and 1/4 DIN Cutouts
  • NEMA 1, 3, 3S, 4, 4X, and 12
  • Hinged Door
  • Cover Held in Place with Screws
  • Meter Mounted in Cover
  • Sub-Panels Available
  • Mounting Holes Integral to Enclosure
  • PDA1024-01 24 VDC Power Supply Available
  • UL Listed, CSA Certified
  • Light / Horn & Reset Button
show more
The PDA2500 series of rugged plastic NEMA 4X enclosures for 1/8 DIN Digital Panel Meters provide a convenient way to mount up to ten Precision Digital meters to walls and other vertical structures.

Many of these enclosures also have room for additional devices like a light / horn and a 24 V transmitter power supply. Sub-panels are available to mount additional devices to the base of the enclosure.

These enclosures come pre-cut with horizontal or vertical 1/16 DIN, 1/8 DIN and 1/4 DIN cutouts or they can be ordered with no cutouts.

The meters are mounted in the door of the enclosure thus allowing for programming and operation of the meter. Mounting hardware is provided. The door is hinged and secured with screws.

Enclosures, meters and accessories are ordered and packaged separately.
Features
  • House up to 10 Meters
  • Plastic
  • Horizontal, Vertical or No Cutouts
  • 1/16 DIN, 1/8 DIN and 1/4 DIN Cutouts
  • NEMA 1, 3, 3S, 4, 4X, and 12
  • Hinged Door
  • Cover Held in Place with Screws
  • Meter Mounted in Cover
  • Sub-Panels Available
  • Mounting Holes Integral to Enclosure
  • PDA1024-01 24 VDC Power Supply Available
  • UL Listed, CSA Certified
  • Light / Horn & Reset Button
Close
Close

Specifications

Brand

Approvals & Certifications

  • CSA
  • UL

Enclosure, Body Material

  • ThermoPlastic

Environmental Protection

  • IP10
  • IP52
  • IP54
  • IP66
  • NEMA 1
  • NEMA 12
  • NEMA 3
  • NEMA 3S
  • NEMA 4
  • NEMA 4X

Color

  • Gray

Meters

  • Houses up to 10 meters

Meter Mounting Method

  • Through cover

Cover Mounting Method

  • Hinge / screw

Operating Temperature

  • -40 to 120° C

Warranty

  • 1 year
