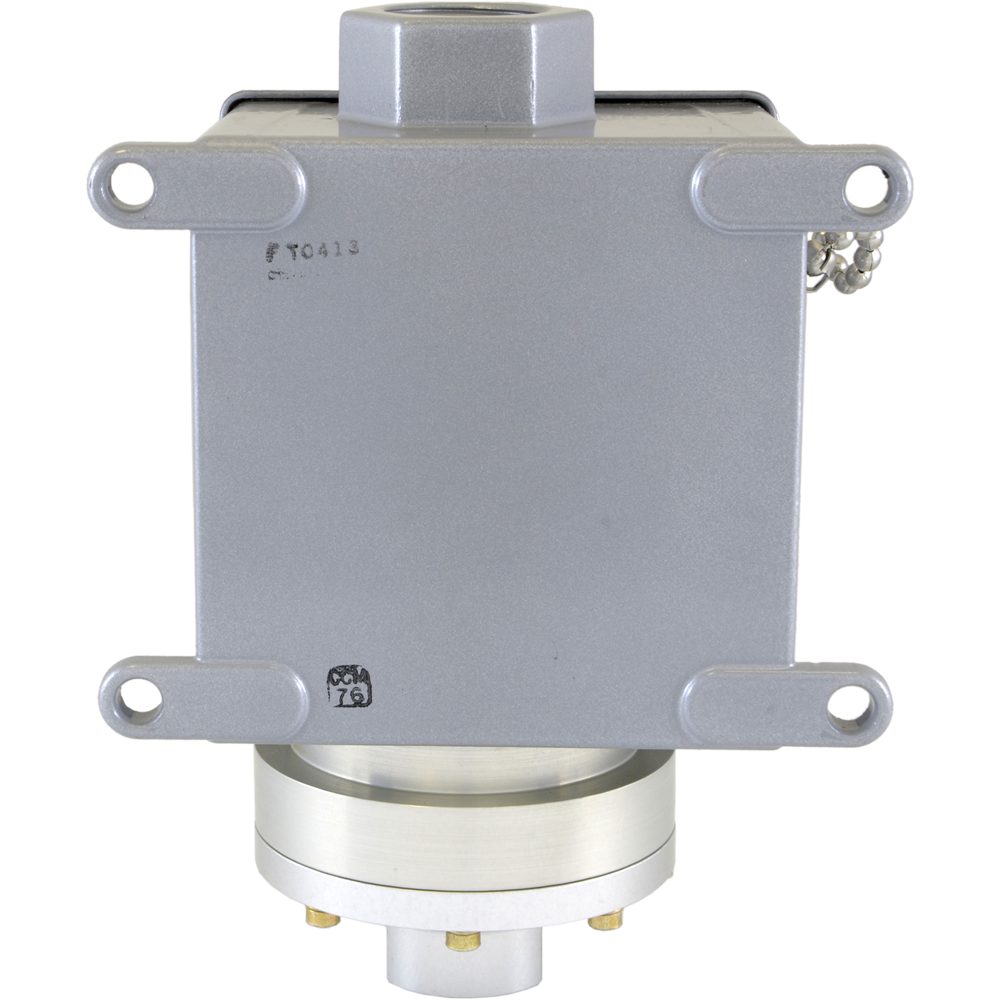

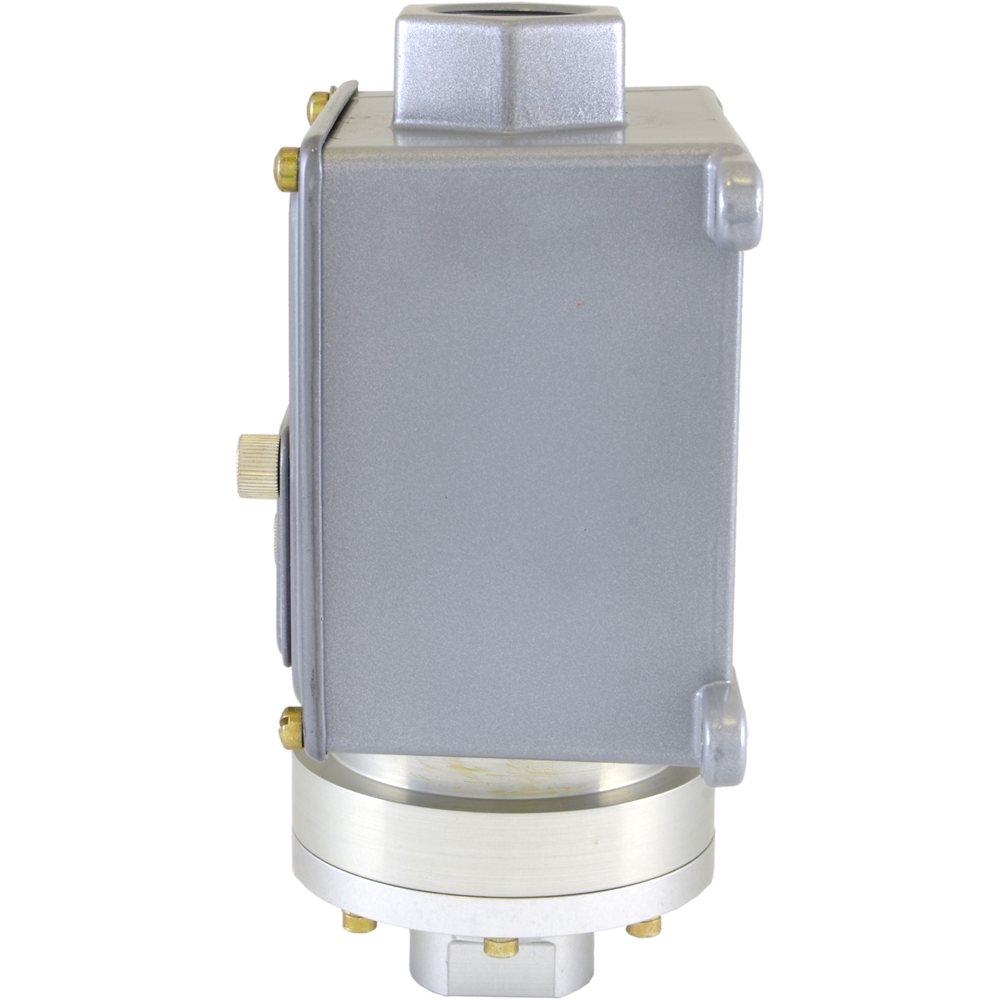

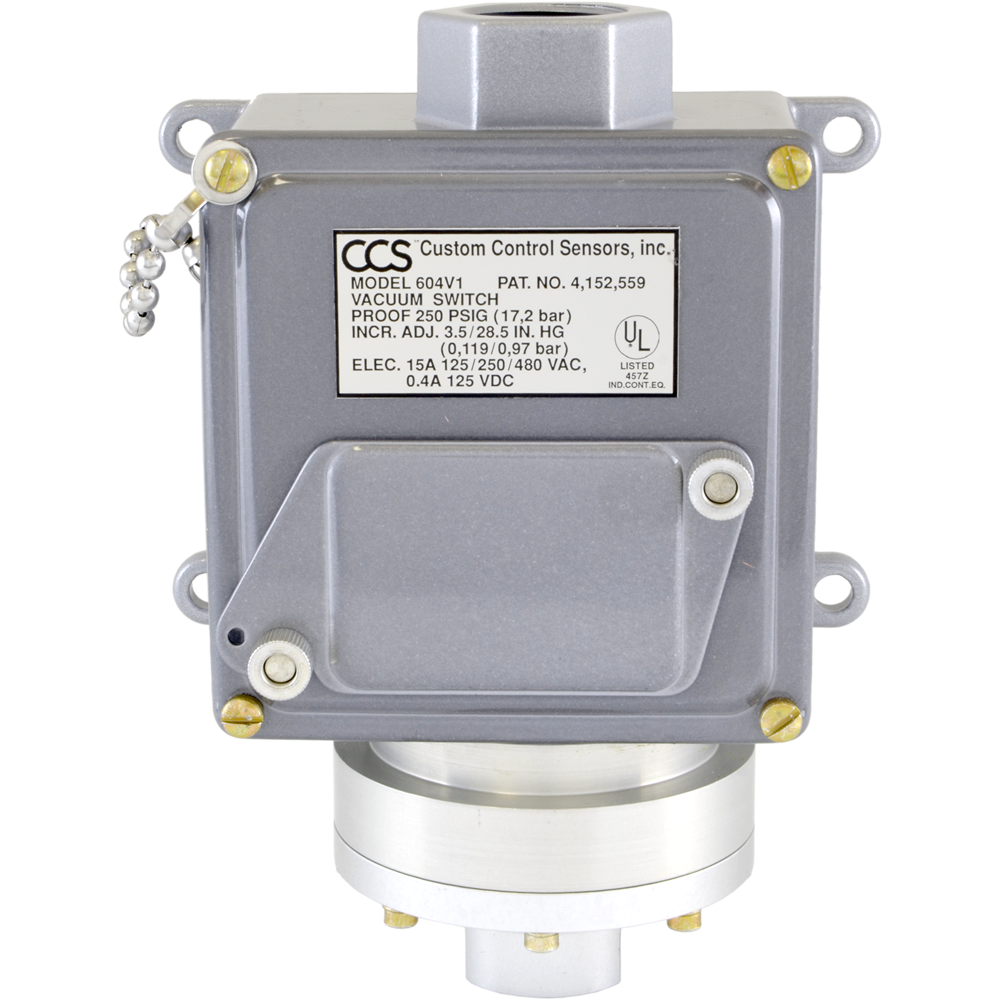

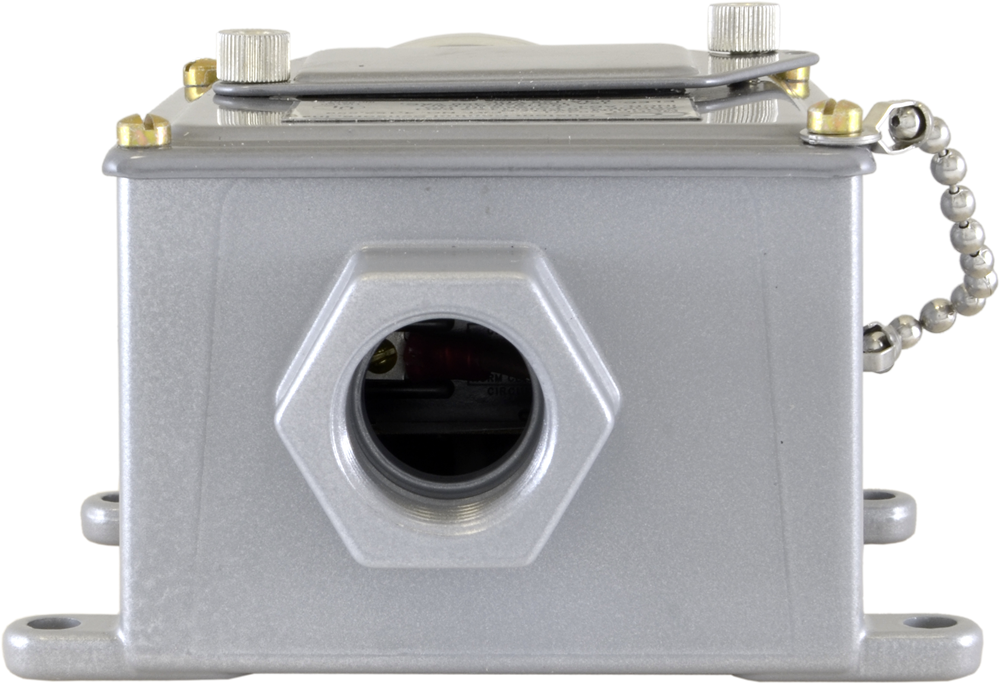

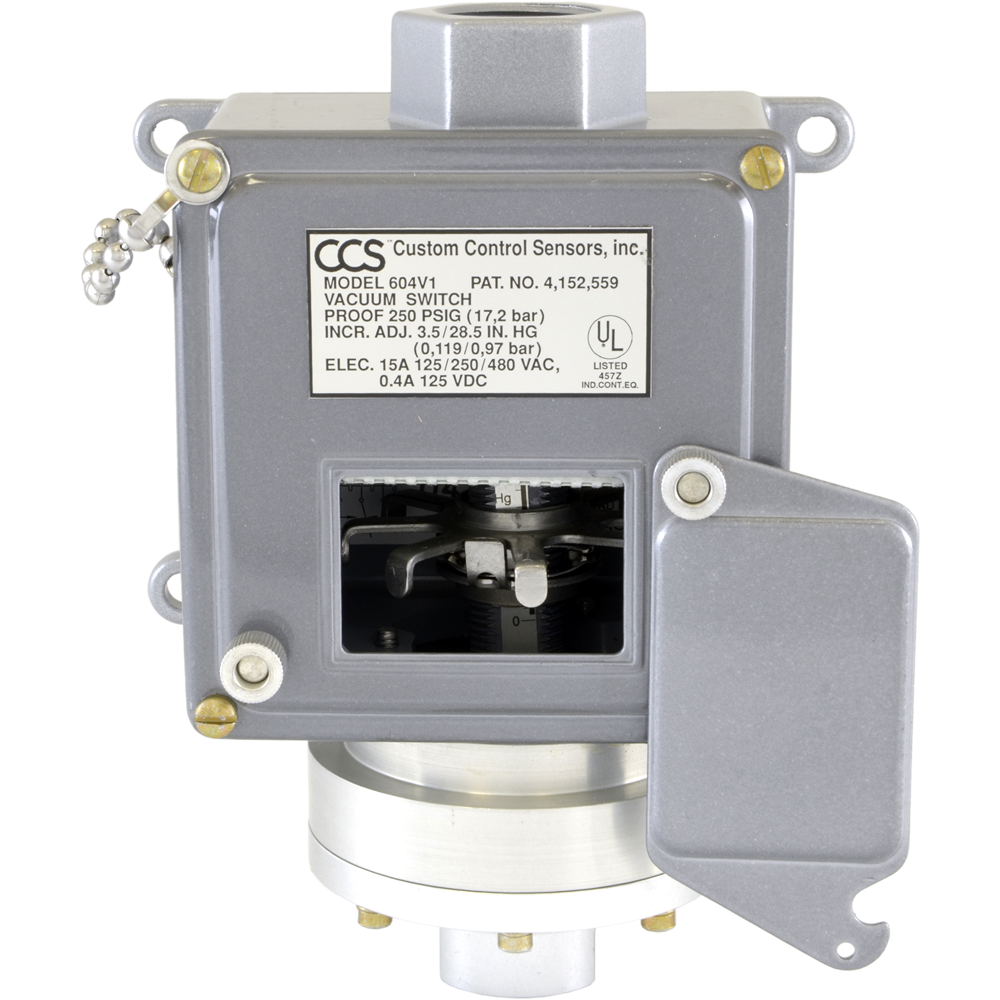

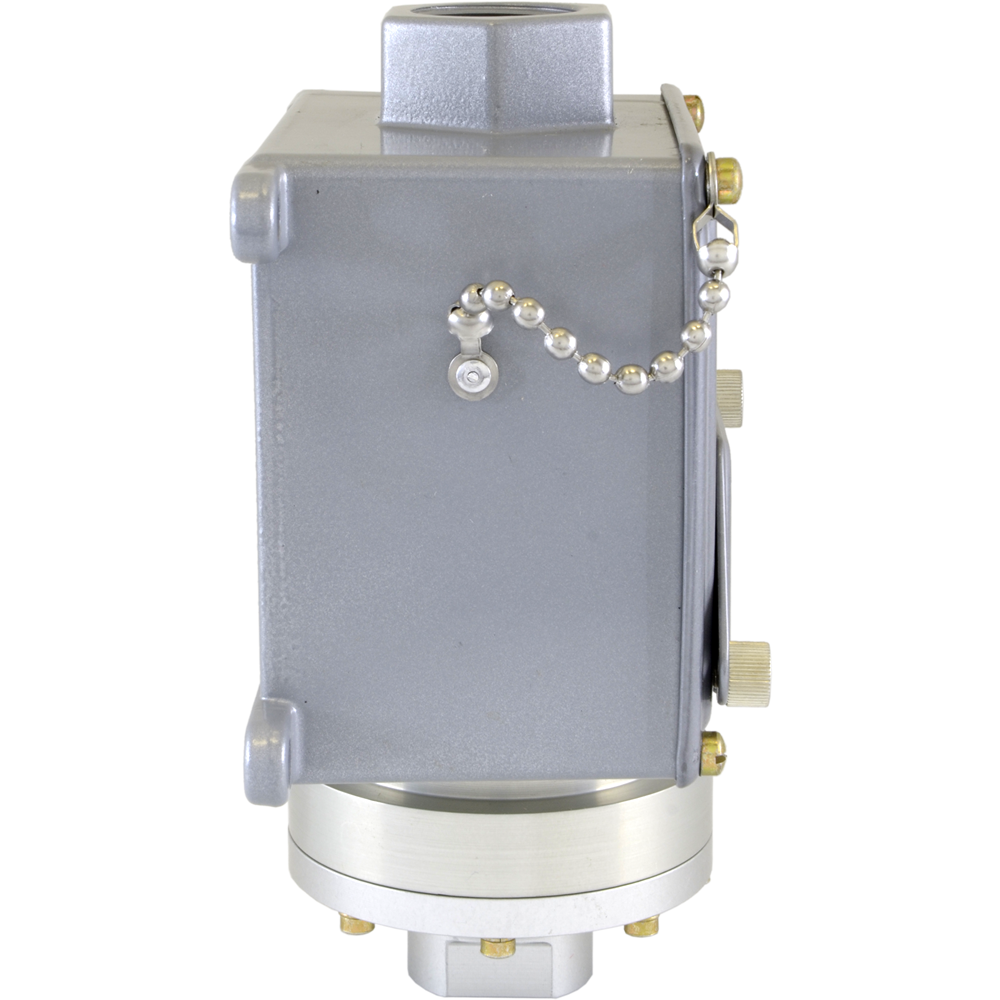

604VZ Series Pressure Switch

Brand: Custom Control Sensors
Request Information
Favorite
Features
  • Adjustable Set Point Range:
    • Increasing Vacuum: 3.5 to 28.5 Inches Hg, 89 to 724 mm Hg
    • Decreasing Vacuum: 1 to 26 Inches Hg, 25 to 660 mm Hg
  • Deadband: Approximately 2.5 Inches Hg, 64 mm Hg
  • System Pressure (Maximum): 150 psig, 1034.21 kPa, 10.3 bar
  • Proof Pressure: 250 psig, 1723.68 kPa, 17.2 bar
  • Wetted Materials:

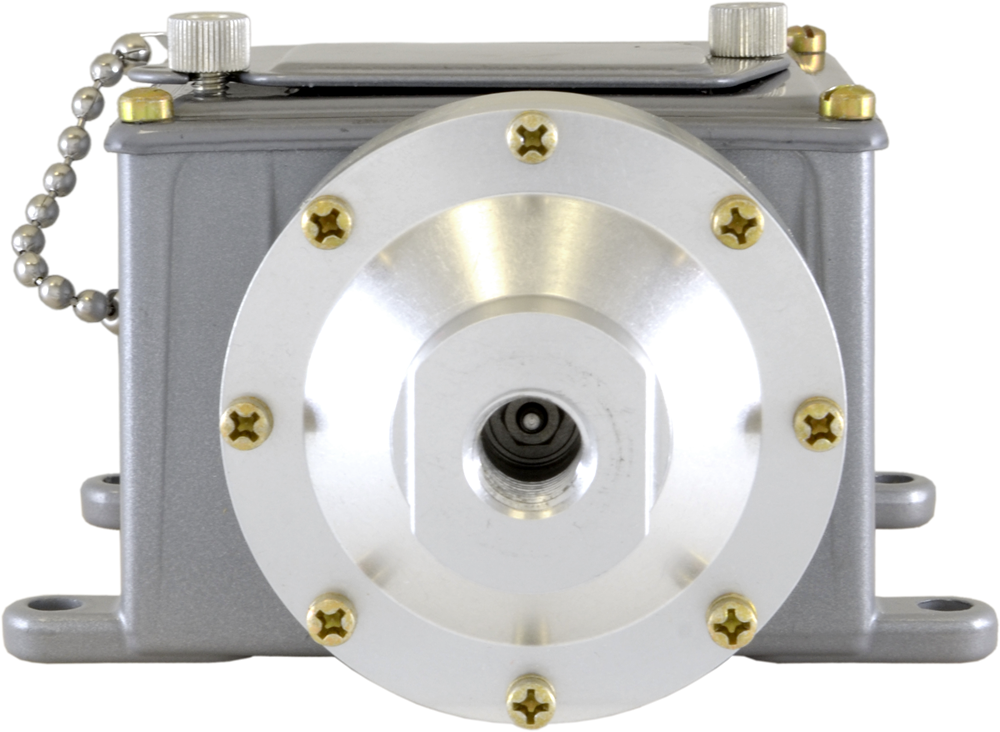

    • Pressure Port: 1/2" Female NPT 316 Stainless Steel
    • Diaphragm: Polyimide
    • O-Ring: Viton
  • Relay: SPDT or DPDT
  • UL, CE Mark, CRN, General Purpose
show more
Features
  • Adjustable Set Point Range:
    • Increasing Vacuum: 3.5 to 28.5 Inches Hg, 89 to 724 mm Hg
    • Decreasing Vacuum: 1 to 26 Inches Hg, 25 to 660 mm Hg
  • Deadband: Approximately 2.5 Inches Hg, 64 mm Hg
  • System Pressure (Maximum): 150 psig, 1034.21 kPa, 10.3 bar
  • Proof Pressure: 250 psig, 1723.68 kPa, 17.2 bar
  • Wetted Materials:
    • Pressure Port: 1/2" Female NPT 316 Stainless Steel
    • Diaphragm: Polyimide
    • O-Ring: Viton
  • Relay: SPDT or DPDT
  • UL, CE Mark, CRN, General Purpose
Close

Displaying prices & availability for United States in USD. Change location or currency

4 models matching criteria
604VZ1
CCS DUAL-SNAP Vacuum Switch, Non-Haz. Area, 1/4" NPT SST Port, Polyimide, Viton View More
  • Adjustable Set Point Range:
    • Increasing Vacuum: 1.72 to 14.0 psi, 11.9 to 96.5 kPa, 0.12 to 0.97 bar
    • Decreasing Vacuum: 0.49 to 12.8 psi, 3.38 to 88.3 kPa, 0.03 to 0.88 bar

  • Deadband: Approximately 2.5 Inches Hg, 64 mm Hg
  • System Pressure (Maximum): 150 psig, 1034.21 kPa, 10.3 bar
  • Proof Pressure: 250 psig, 1723.68 kPa, 17.2 bar
  • Wetted Materials:
    • Pressure Port: 1/2" FNPT 316 Stainless Steel
    • Diaphragm: Polyimide
    • O-Ring: Viton

  • Relay: SPDT
  • UL, CE Mark, CRN, General Purpose
10 - 12 weeks
$998.91USD
Does not ship to US
604VZ1-7011
CCS DUAL-SNAP Vacuum Switch, Non-Haz. Area, 1/4" NPT SST Port & Diaphragm, Viton View More
  • Adjustable Set Point Range:
    • Increasing Vacuum: 3.5 to 28.5 Inches Hg, 89 to 724 mm Hg
    • Decreasing Vacuum: 1 to 26 Inches Hg, 25 - 660 mm Hg

  • Deadband: Approximately 2.5 Inches Hg, 64 mm Hg
  • System Pressure (Maximum): 150 psig, 1034.21 kPa, 10.3 bar
  • Proof Pressure: 250 psig, 1723.68 kPa, 17.2 bar
  • Wetted Materials:
    • Pressure Port: 1/2" FNPT 316 Stainless Steel
    • Diaphragm: Stainless Steel
    • O-Ring: Viton

  • Relay: SPDT
  • UL, CE Mark, CRN, General Purpose
Contact For Inventory
$1,007.79USD
Does not ship to US
604VZJ1-7011
CCS DUAL-SNAP Vacuum Switch, Non-Haz. Area, 1/4" NPT SST Port & Diaphragm, Viton, CSA View More
  • Pressure Port: 1/2" FNPT 316 Stainless Steel
  • Diaphragm: Stainless Steel, O-Ring: Buna N , Relay: SPDT
  • Adjustable Set Point Range
    • Increasing Vacuum: 3.5 to 28.5 Inches Hg, 89 to 724 mm Hg
    • Decreasing Vacuum: 1 to 26 Inches Hg, 25 to 660 mm Hg

  • Deadband: Approximately 2.5 Inches Hg, 64 mm Hg
  • Maximum System Pressure: 150 psig, 1034.21 kPa, 10.3 bar
  • Proof Pressure: 250 psig, 1723.68 kPa, 17.2 bar
  • UL, CSA, CE Mark, CRN, General Purpose
10 - 12 weeks
$1,765.48USD
Does not ship to US
604VZM1
CCS DUAL-SNAP Vacuum Switch, Non-Haz. Area, 1/4" NPT SST Port, Polyimide, Viton, DPDT View More
  • Adjustable Set Point Range:
    • Increasing Vacuum: 3.5 to 28.5 Inches Hg, 89 to 724 mm Hg
    • Decreasing Vacuum: 1 to 26 Inches Hg, 25 to 660 mm Hg

  • Deadband: Approximately 2.5 Inches Hg, 64 mm Hg
  • System Pressure (Maximum): 150 psig, 1034.21 kPa, 10.3 bar
  • Proof Pressure: 250 psig, 1723.68 kPa, 17.2 bar
  • Wetted Materials:
    • Pressure Port: 1/2" FNPT 316 Stainless Steel
    • Diaphragm: Polyimide
    • O-Ring: Viton

  • Relay: DPDT
  • UL, CE Mark, CRN, General Purpose
10 - 12 weeks
$2,131.74USD
Does not ship to US
Close
Close

Specifications

Brand

Adjustment Type

  • Field Adjustable

Approvals & Certifications

  • CE
  • CRN
  • CRN - Alberta
  • CRN - British Columbia
  • CRN - N.W. Territories
  • CRN - Saskatchewan
  • CSA
  • EMC
  • LVD
  • RoHS
  • UL

Deadband, Approximate

  • Inches Hg: 2.5
  • mmHg: 64

Diaphragm Material

  • Polyimide
  • Stainless Steel
  • Viton Dacron

Electrical Contacts

  • Gold
  • Silver

Electrical Rating

  • 1 A at 125 Vac, 50/60 Hz
  • 15 A at 125/250/480 Vac Resistive, 0.4 A at 125 Vdc, 0.2 A at 250 Vdc
  • 5 A at 125/250 Vac Resistive, 5 A at 28 Vdc, 0.5 A at 125 Vdc

Enclosure, Body Material

  • Aluminum

Environmental Protection

  • IP65
  • IP66
  • NEMA 13
  • NEMA 4, 13 / IP65, 66
  • Non-Hazardous Area

Maximum System Pressure

  • bar: 7.9 to 35.48
  • kPa: 790 to 3,548
  • psig: 100 to 500

NACE & NIST

  • NACE

NPT Connection

  • 1/2” NPT Female

Operating Temperature

  • -40° to 86° C (-40° to 187° F)

O-Ring Material

  • Ethylene Propylene (EPR)
  • Viton

Process Connection Material

  • 316 Stainless Steel

Proof Pressure

  • bar: 17.24
  • kPa: 1,724
  • psig: 250

Service

  • Sweet (Oil & Gas)

Set Point - Decreasing

  • Inches Hg: -1 to 26
  • mmHg: -25 to 660

Set Point - Increasing

  • Inches Hg: -3.5 to 28.5
  • mmHg: -89 to 724

Standard Features

  • Internal Case Ground
  • Weatherproof

Switch Type

  • DPDT
  • SPDT

System Pressure

  • bar: 10.3
  • kPa: 1,034
  • psig: 150
