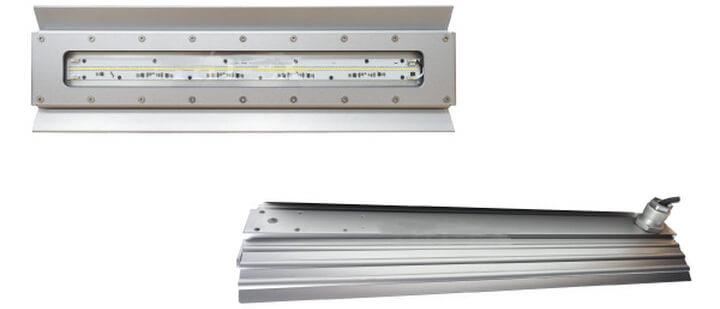

L1319C (SMD) 2ft Hazardous Location Linear Light

Brand: Top Hi-Tech Inc.
Specification:
  • Volt.: 110 V / 120 V / 220 V / 277 V AC
  • Watt.: 40 W / 60 W
  • Amps: 40 W (0.14 ~ 0.36 A) / 60 W (0.22 ~ 0.55 A)
  • Frequency: 50 Hz / 60 Hz
  • Power Factor: cos ≧ 0.9
Ambient Temperature:
  • -20°C ~ +55°C, T6
  • CID2: -40° C ~ +55° C, T4 / CIID2: +55° C, T5 (UL Certification)
Protection
Degree of Protection - IP68 / NEMA 6P
IECEx Certification
  • Ex nR IIC T6 Gc
  • Ex tb IIIC T85°C Db
ATEX Certification
  • II 3 G Ex nR IIC T6 Gc
  • II 2 D Ex tb IIIC T85°C Db
UL Certification
  • UL844 - Class I, Division 2 (Group A, B, C and D) / Class II, Division 2 (Group F and G) / Class III
  • UL1598
TIIS Certification
  • IIC T6 Gc
TS Certification
  • Ex nR IIC T5 Gc
  • Ex tb IIIC T95°C Db
Features
  • Light weight; stream line design
  • Heat Resistance 85° C to 100° C
  • Product comes with reflector and concentrate light source
 Applicable Location
  • Zone 2
  • Zone 21 & Zone 22
  • Class I, Division 2 (Group A, B, C and D)
  • Class II, Division 2 (Group F and G)
  • Class III
show more
Images are representations only.
Specification:
  • Volt.: 110 V / 120 V / 220 V / 277 V AC
  • Watt.: 40 W / 60 W
  • Amps: 40 W (0.14 ~ 0.36 A) / 60 W (0.22 ~ 0.55 A)
  • Frequency: 50 Hz / 60 Hz
  • Power Factor: cos ≧ 0.9
Ambient Temperature:
  • -20°C ~ +55°C, T6
  • CID2: -40° C ~ +55° C, T4 / CIID2: +55° C, T5 (UL Certification)
Protection
Degree of Protection - IP68 / NEMA 6P
IECEx Certification
  • Ex nR IIC T6 Gc
  • Ex tb IIIC T85°C Db
ATEX Certification
  • II 3 G Ex nR IIC T6 Gc
  • II 2 D Ex tb IIIC T85°C Db
UL Certification
  • UL844 - Class I, Division 2 (Group A, B, C and D) / Class II, Division 2 (Group F and G) / Class III
  • UL1598
TIIS Certification
  • IIC T6 Gc
TS Certification
  • Ex nR IIC T5 Gc
  • Ex tb IIIC T95°C Db
Features
  • Light weight; stream line design
  • Heat Resistance 85° C to 100° C
  • Product comes with reflector and concentrate light source
 Applicable Location
  • Zone 2
  • Zone 21 & Zone 22
  • Class I, Division 2 (Group A, B, C and D)
  • Class II, Division 2 (Group F and G)
  • Class III

Specifications

Approvals & Certifications

  • ABS
  • ATEX
  • GB
  • IECEx

Beam

  • ≧110°

Enclosure, Body Material

  • Aluminum Alloy

Environmental Protection

  • IP67
  • IP68
  • NEMA 6
  • NEMA 6P

Frequency

  • 50/60 Hz

Lens

  • Tempered Glass

Lumens

  • Per Watt: COB:≧90(W.W.), ≧100(C.W.) SMD:70─80(W.W.), 80─85(C.W.)

Operating Temperature

  • -20° to 40° C (-4° to 104° F)

Voltage

  • 110/220 Vac

Wattage

  • 40 W (0.14 ~ 0.36 A) 60 W (0.54 A / 0.27 A)
