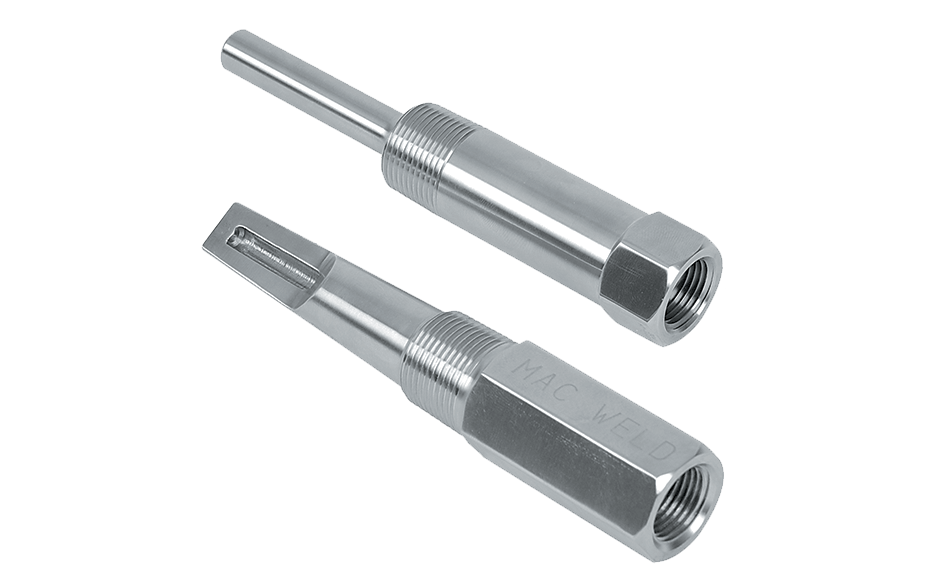

TW02 Threaded Straight Thermowell

Brand: Mac-Weld Machining Ltd
CCS Temperature Switch Thermowells (0.385" bore)  Please see:  113 Style Thermowell
Mac-Weld's threaded thermowells are available in a wide variety of process thread sizes and configurations which include, but are not limited to, NPT, NPS, and BSPT.

Mac-Weld is a pioneer and global leader in the manufacturing of thermowells, always offering the highest quality and precision.

Made to order, or standard configurations, all meet or exceed accepted standards.

Our threaded thermowells are designed and manufactured 100% in house, and are made to accept standard and custom made thermometers, thermocouples, bulbs and RTD's.
Features
  • Standard Threaded Thermowells available from stock
  • Custom software for Thermowell design calculations
  • CRN approved thermowells
  • Various NDT options
  • NACE compliant
show more
Mac-Weld's threaded thermowells are available in a wide variety of process thread sizes and configurations which include, but are not limited to, NPT, NPS, and BSPT.

Mac-Weld is a pioneer and global leader in the manufacturing of thermowells, always offering the highest quality and precision.

Made to order, or standard configurations, all meet or exceed accepted standards.

Our threaded thermowells are designed and manufactured 100% in house, and are made to accept standard and custom made thermometers, thermocouples, bulbs and RTD's.
Features
  • Standard Threaded Thermowells available from stock
  • Custom software for Thermowell design calculations
  • CRN approved thermowells
  • Various NDT options
  • NACE compliant
1 model matching criteria
MAC-WELD Thermowell, Straight, 0.385" Bore, 3/4" NPT, 12" U, 304 SST show more
  • Process Connection: 3/4” MNPT
  • Instrument Connection: 1/2" FNPT
  • Insertion 'U' Length: 12"
  • Lagging Extension: No Lag
  • Straight or Tapered: Straight
  • Bore: 0.385"
  • Material: 304 Stainless Steel
7 In Stock
$60.32USD

Specifications

Approvals & Certifications

  • Dye Penetration Testing
  • Hydrostatic Internal Testing
  • Material Test Report
  • Radiograph

Bore Size

  • 0.260” (6.6 mm)
  • 0.385” (9.78 mm)

Insertion 'U' Length

  • 10” (25.4 cm)
  • 13” (33 cm)
  • 16” (40.6 cm)
  • 22” (56 cm)
  • 34” (86 cm)
  • 4” (10.1 cm)
  • 40” (101.6 cm)
  • 5.5” (14 cm)
  • 7” (17.8 cm)

Materials of Construction

  • 304 Stainless Steel
  • 304L Stainless Steel
  • 310 Stainless Steel
  • 316 Stainless Steel
  • 316L Stainless Steel
  • 347 Stainless Steel
  • Alloy 20 or Incoloy
  • Aluminum 6061
  • Brass
  • Carbon Steel
  • Carbon Steel A105
  • Chrome-M Moly F-22
  • Chrome-Moly F-11
  • Hastelloy B
  • Hastelloy C-276
  • Incoloy 800
  • Inconel 600
  • Kynar
  • Kynar Coating
  • Monel 400
  • Naval Brass
  • Nickel 200
  • PVC
  • Special
  • Stellite over Spray
  • Teflon
  • Teflon Coating
  • Titanium

NACE & NIST

  • NACE MR-1090

NPT Connection

  • 1” NPT Male
  • 1/2” NPT Male
  • 1-1/2” NPT Male
  • 3/4” NPT Male

Plug Material

  • 304 Stainless Steel
  • Brass

Special Cleaning & Packaging

  • Cleaning O₂ or Chlorine

Stem Length

  • 12” (30.5 cm)
  • 15” (38.1 cm)
  • 18” (45.7 cm)
  • 2.5” (6.35 cm)
  • 24” (61 cm)
  • 36” (91.4 cm)
  • 4” (10.2 cm)
  • 42” (106.7 cm)
  • 6” (15.2 cm)
  • 7.5” (19.1 cm)
  • 9” (22.9 cm)
