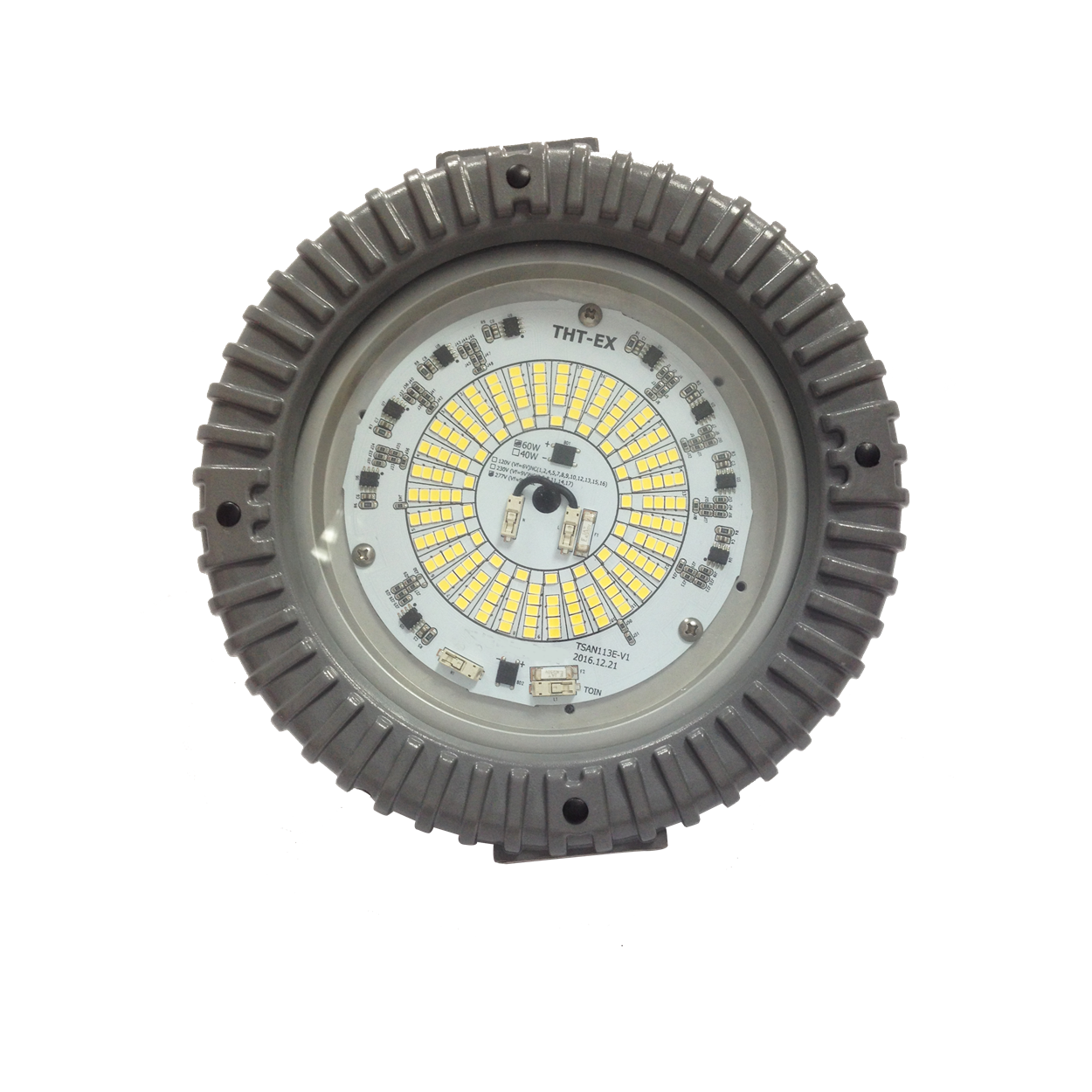

L1105 (SMD) Explosion-proof LED Light

Brand: Top Hi-Tech Inc.
  • Volt.: 110 V / 120 V / 220 V / 277 V AC
  • Watt.: 40 W / 60 W
  • Amps: 40 W (0.14 ~ 0.36 A) / 60 W (0.22 ~ 0.55 A)
  • Frequency: 50 Hz / 60 Hz
  • Power Factor: cos ≧ 0.9
Ambient Temperature:
  • -20° C ~ +40° C, T6
  • CID1: -40° C ~ +40° C, T6 / CID2: -40° C ~ +40° C, T3C / CIID1: +40° C, T4 (UL Certification)
Degree of Protection - IP68 / NEMA 6P

IECEx Certification
  • Ex d IIB + H2 T6...T4 Gb
  • Ex tb IIIC T108˚ C Db
ATEX Certification
  • II 2 G Ex d IIB + H2 T6...T4 Gb
  • II 2 D Ex tb IIIC T108˚ C Db
UL Certification
  • UL844 - Class I, Division 1 (Groups B, C and D) / Class I, Division 2 (Groups A, B, C and D) /  Class II, Division 1 (Groups E, F and G) / Class III
  • UL1598
TS Certification
  • Ex d IIB + H2 T5 Gb
  • Ex tb IIIC T110˚ C Db
Features
  • Service life up to 60,000 hours
  • Salt spray 1000 hrs passed
  • Tank veiwer mounting available
 Applicable Location:
  • Zone 1 & Zone 2
  • Zone 21 & Zone 22
  • Class I, Division 1 (Groups B, C and D)
  • Class I, Division 2 (Groups A, B, C and D)
  • Class II, Division 1 (Groups E, F and G)
  • Class III
show more
Images are representations only.
  • Volt.: 110 V / 120 V / 220 V / 277 V AC
  • Watt.: 40 W / 60 W
  • Amps: 40 W (0.14 ~ 0.36 A) / 60 W (0.22 ~ 0.55 A)
  • Frequency: 50 Hz / 60 Hz
  • Power Factor: cos ≧ 0.9
Ambient Temperature:
  • -20° C ~ +40° C, T6
  • CID1: -40° C ~ +40° C, T6 / CID2: -40° C ~ +40° C, T3C / CIID1: +40° C, T4 (UL Certification)
Degree of Protection - IP68 / NEMA 6P

IECEx Certification
  • Ex d IIB + H2 T6...T4 Gb
  • Ex tb IIIC T108˚ C Db
ATEX Certification
  • II 2 G Ex d IIB + H2 T6...T4 Gb
  • II 2 D Ex tb IIIC T108˚ C Db
UL Certification
  • UL844 - Class I, Division 1 (Groups B, C and D) / Class I, Division 2 (Groups A, B, C and D) /  Class II, Division 1 (Groups E, F and G) / Class III
  • UL1598
TS Certification
  • Ex d IIB + H2 T5 Gb
  • Ex tb IIIC T110˚ C Db
Features
  • Service life up to 60,000 hours
  • Salt spray 1000 hrs passed
  • Tank veiwer mounting available
 Applicable Location:
  • Zone 1 & Zone 2
  • Zone 21 & Zone 22
  • Class I, Division 1 (Groups B, C and D)
  • Class I, Division 2 (Groups A, B, C and D)
  • Class II, Division 1 (Groups E, F and G)
  • Class III

Specifications

Approvals & Certifications

  • ABS
  • ATEX Ex
  • cULus
  • GB
  • IECEx
  • TS

Beam

  • Beam Angle ≥ 110°

Enclosure, Body Material

  • Aluminum Alloy

Environmental Protection

  • IP67
  • IP68
  • NEMA 6
  • NEMA 6P

Frequency

  • 50/60 Hz

Lens

  • Tempered Glass - IEC Standards Impact-Resistant > 4 Joule

Lumens

  • Lum/Watt: 80 to 85 (Cool White), 70 to 80 (Warm White)

Operating Temperature

  • -20° to 40° C (-4° to 104° F), UL: -40° to 40° C (-40° to 104° F)

Screw Material

  • Stainless Steel

Voltage

  • 120 V / 277 V / 480 V AC

Wattage

  • 24 to 60 W, 0.11 to 2.5 A
