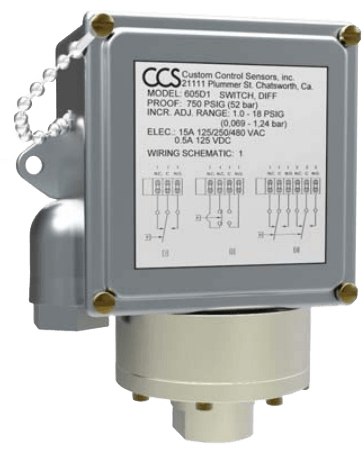

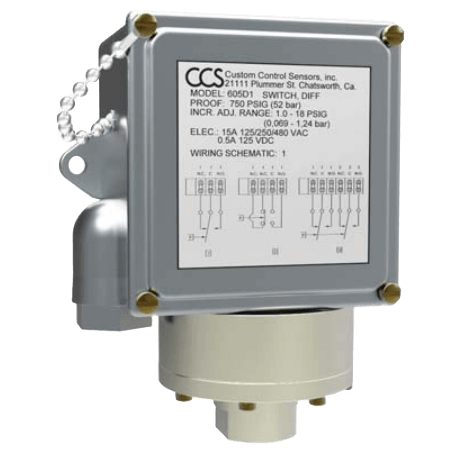

605DZ-7011 Series Pressure Switch

Brand: Custom Control Sensors
Request Information
Favorite
Features
  • Highly reliable devices utilizing the CCS Dual-Snap® Belleville disc spring principle pioneered by CCS’ engineers
  • Engineering based on aerospace technology
  • Rigid, midsize and internally adjustable for convenient field set point adjustment
  • Repeatable and stable set point
  • Vibration and shock resistant.
  • High cycle life.
  • High over-pressure capability. (System and Proof)
  • High - low over high capability.
  • Various options for wetted materials and electrical ratings to meet a wide range of application requirements and media compatibility.
show more
Features
  • Highly reliable devices utilizing the CCS Dual-Snap® Belleville disc spring principle pioneered by CCS’ engineers
  • Engineering based on aerospace technology
  • Rigid, midsize and internally adjustable for convenient field set point adjustment
  • Repeatable and stable set point
  • Vibration and shock resistant.
  • High cycle life.
  • High over-pressure capability. (System and Proof)
  • High - low over high capability.
  • Various options for wetted materials and electrical ratings to meet a wide range of application requirements and media compatibility.
Close
Close

Specifications

Brand

Adjustment Type

  • Field Adjustable

Approvals & Certifications

  • CE
  • CRN
  • CRN - Alberta
  • CRN - British Columbia
  • CRN - Saskatchewan
  • EMC
  • LVD
  • PED
  • RoHS

Deadband, Approximate

  • bar: 0.103 to 0.414
  • kPa: 10.4 to 41.3
  • psi: 1.5 to 6

Diaphragm Material

  • Stainless Steel

Electrical Connectors

  • 1/2” NPT Female Conduit Connection
  • Terminal Strip - Internal

Electrical Contacts

  • Gold
  • Silver

Electrical Rating

  • 1 A at 125 Vac, 50/60 Hz
  • 15 A at 125/250/480 Vac Resistive, 0.4 A at 125 Vdc, 0.2 A at 250 Vdc
  • 5 A at 125/250 Vac Resistive, 5 A at 28 Vdc, 0.5 A at 125 Vdc

Enclosure, Body Material

  • Aluminum

Environmental Protection

  • IP65
  • IP66
  • NEMA 13
  • NEMA 4
  • NEMA 4X
  • Weatherproof

NACE & NIST

  • NACE

NPT Connection

  • 1/4” NPT Female

Operating Temperature

  • -40° to 86° C (-40° to 187° F)

O-Ring Material

  • Ethylene Propylene (EPR)
  • Viton

Process Connection Material

  • 316 Stainless Steel

Proof Pressure - Both Ports

  • bar: 52
  • kPa: 5,171
  • psig: 750

Proof Pressure - High Over Low

  • bar: 28
  • kPa: 2,758
  • psig: 400

Proof Pressure - Low Over High

  • bar: 6.9
  • kPa: 689.47
  • psig: 100

Service

  • Sweet (Oil & Gas)

Set Point - Decreasing

  • bar: 0.034 to 4.76
  • kPa: 3.5 to 475.7
  • psid: 0.5 to 69

Set Point - Increasing

  • bar: 0.138 to 5.2
  • kPa: 13.8 to 517.1
  • psid: 2 to 75

System Pressure

  • bar: 28
  • kPa: 2,758
  • psig: 400
