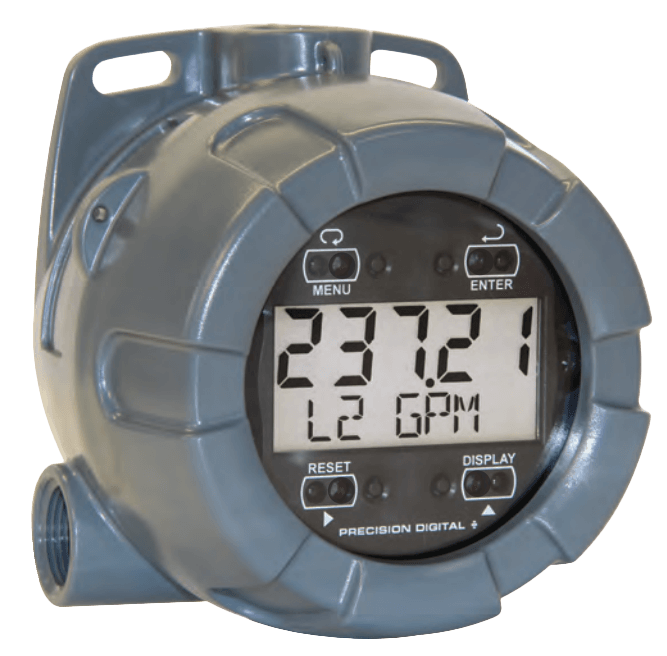

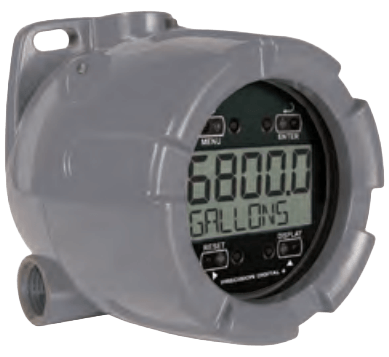

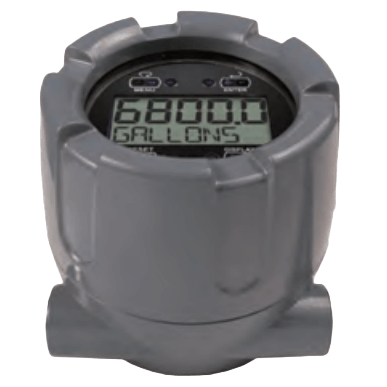

PD6700 Vantageview NEMA 4X Loop-Powered Process & Level Meter

Brand: Precision Digital Corporation
The Vantageview PD6700 is one of Precision Digital's most advanced and feature-packed plastic, field-mounted, loop-powered indicators. The fact that this meter is loop-powered means that there is no need to run additional, costly power lines. The PD6700 is built in a NEMA 4X and IP65 rated plastic enclosure which can stand up to even the harshest environmental conditions.

It features a dual-line display that can be easily scaled in the field for any 4-20 mA analog input. The display has a five digit upper display, a seven alpha-numeric character lower display, and comes with a backlight standard. Two features that really make the PD6700 stand out are its wide viewing angle display and SafeTouch® through-window buttons.

These buttons allow the meter to be programmed and operated through the cover window, thus eliminating the need to remove the cover in dirty or wet environments.
Features
  • 4-20 mA Input Loop-Powered
  • Modern, Sleek and Practical Enclosure for Safe Areas
  • 5-Digit, 0.7" (17.8 mm) Upper Display
  • 7 Alphanumeric Character, 0.4" (10.2 mm) Lower Display
  • SafeTouch® Through-Window Button Programming
  • Password Protection
  • 32-Point , Square Root, or Exponential Linearization
  • Loop or External DC-Powered Backlight Standard
  • 3.0 V Drop (6.0 V with Backlight)
  • NEMA 4X, IP65 Plastic Enclosure
  • Flanges for Wall or Pipe Mounting
  • HART® Protocol Transparent
  • Operates from -40 to 75°C
show more
The Vantageview PD6700 is one of Precision Digital's most advanced and feature-packed plastic, field-mounted, loop-powered indicators. The fact that this meter is loop-powered means that there is no need to run additional, costly power lines. The PD6700 is built in a NEMA 4X and IP65 rated plastic enclosure which can stand up to even the harshest environmental conditions.

It features a dual-line display that can be easily scaled in the field for any 4-20 mA analog input. The display has a five digit upper display, a seven alpha-numeric character lower display, and comes with a backlight standard. Two features that really make the PD6700 stand out are its wide viewing angle display and SafeTouch® through-window buttons.

These buttons allow the meter to be programmed and operated through the cover window, thus eliminating the need to remove the cover in dirty or wet environments.
Features
  • 4-20 mA Input Loop-Powered
  • Modern, Sleek and Practical Enclosure for Safe Areas
  • 5-Digit, 0.7" (17.8 mm) Upper Display
  • 7 Alphanumeric Character, 0.4" (10.2 mm) Lower Display
  • SafeTouch® Through-Window Button Programming
  • Password Protection
  • 32-Point , Square Root, or Exponential Linearization
  • Loop or External DC-Powered Backlight Standard
  • 3.0 V Drop (6.0 V with Backlight)
  • NEMA 4X, IP65 Plastic Enclosure
  • Flanges for Wall or Pipe Mounting
  • HART® Protocol Transparent
  • Operates from -40 to 75°C

Specifications

Conduit Connection

  • 3/4" NPT

Display

  • 4-1/2-Digit Numerical & 5-Character Alphanumerical LCD Indicator

Enclosure, Body Material

  • Polycarbonate with UV Stabilizer

Environmental Protection

  • IP65
  • IP66
  • NEMA 4X

Humidity

  • 0 to 90% Non-Condensing

Input

  • 4-20 mA

Operating Temperature

  • -40° to 75° C (-40° to 167° F)

Power

  • 0.25 W
  • 0.5 W
  • 0.75 W

Storage Temperature

  • -40° to 75° C (-40° to 167° F)

Supply Voltage

  • 9 to 36 Vdc

Voltage Drop

  • 3.0 Vdc at 20 mA without Loop-Powered Backlight
  • 6.0 Vdc at 20 mA with Loop-Powered Backlight
