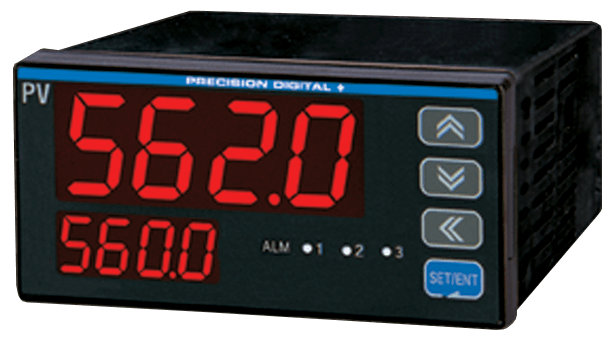

NOVA PD560 Series Process & Temperature Meter

Brand: Precision Digital Corporation
The Nova PD560 is a digital meter that accepts a wide variety of process and temperature inputs and is available in 1/8 and 1/4 DIN sizes. Its universal input accepts thermocouple, RTD, and voltage inputs, and it can be easily configured for a 4-20 mA input. It is available with up to three (3) relays, a 4-20 mA analog outputs, two (2) digital inputs, and an RS485 serial communication option which includes protocols for master/slave set point control, Modbus® ASCII and RTU, as well as PC software.
Features
  • Thermocouple, RTD, & Process inputs
  • Universal Power supply 100-240 VAc
  • Up to 3 Alarm relays
  • Retransmitting 4-20 mA output
  • Input Max/Min Display reset with Digital inputs
  • RS-485 serial communications option
  • Modbus® RTU/ASCII communications
  • Free Monitoring & Data logging software
  • IP55 & IP65 Fronts
show more
Images are representations only.
The Nova PD560 is a digital meter that accepts a wide variety of process and temperature inputs and is available in 1/8 and 1/4 DIN sizes. Its universal input accepts thermocouple, RTD, and voltage inputs, and it can be easily configured for a 4-20 mA input. It is available with up to three (3) relays, a 4-20 mA analog outputs, two (2) digital inputs, and an RS485 serial communication option which includes protocols for master/slave set point control, Modbus® ASCII and RTU, as well as PC software.
Features
  • Thermocouple, RTD, & Process inputs
  • Universal Power supply 100-240 VAc
  • Up to 3 Alarm relays
  • Retransmitting 4-20 mA output
  • Input Max/Min Display reset with Digital inputs
  • RS-485 serial communications option
  • Modbus® RTU/ASCII communications
  • Free Monitoring & Data logging software
  • IP55 & IP65 Fronts
6 models matching criteria
PD562-6RA-00
Power: 100-240 VAC / Outputs: (1) Relay, (1) 4-20 mA
Out of Stock
PD562-6RA-21
Power: 100-240 VAC / Outputs: (3) Relays, (1) 4-20 mA
Out of Stock
PD562-6RA-24
Outputs: (3) Relays, (1) 4-20 mA / Inputs: Current (4-20 mA), Voltage (0-10 V), Thermocouple, RTD
Out of Stock
PD568-6RA-00
Power: 100-240 VAC / Outputs: (1) Relay, (1) 4-20 mA
Out of Stock
PD568-6RA-21
Power: 100-240 VAC / Outputs: (3) Relays, (1) 4-20 mA
Out of Stock
PD568-6RA-24
Power: 100-240 VAC / Outputs: (3) Relays, (1) 4-20 mA
Out of Stock

PD560 Series

Mounting

Power

Display

Output

Options

Specifications

Approvals & Certifications

  • CE
  • UL

Cold Junction Reference

  • Automatic
  • Off

Display

  • Dual 4-Digit Display
  • Red LEDs

Enclosure, Body Material

  • Impact-Resistant Plastic

Environmental Protection

  • IP55
  • IP65

Humidity

  • 20 to 90% Non to Condensing

Isolation

  • 2300 V Input/Output-to-Powerline
  • 4 kV Relay Output to Input/Output / Powerline

Mounting

  • 1/8" DIN

Operating Temperature

  • 10° to 50° C (50° to 122° F)

Operating Voltages

  • 50/60 Hz

Power

  • 10 W

Power Supply

  • 100 to 240 Vac

Storage Temperature

  • -40° to 85° C (-40° to 185° F)
