Description
The 99 series ATEX and IECEx approved temperature assemblies incorporate a Thermocouple Head and a head mounted (hockey puck) temperature transmitter or a 6 post ceramic block. The sensor may include any thermowell (flanged or threaded). The nipple union assembly is then fitted to an IME Model 1080 Thermocouple Head (Aluminum or SS316). Any model head mounted (hockey puck) temperature transmitter that has less than 3 watts power dissipation or a 6 post terminal block is mounted in the Thermocouple Head to complete the approved temperature assembly.
Configure
99 Series
Model

Sensor

Number of Elements

Length

Temperature Transmitter Or Terminal Block

Enclosure

Conduit Entry

Nipple Union
Plain Capsule Sensor Diameter

Sensor Length

Specifications
Specifications
Approvals & Certifications
- ATEX
- CE
- Ex II 2 GD Exd IIC T6 Gb Ex Tb IIIC T85° C Db, IP68 Ta = -40° to +70° C
- IECEx D IIC T6 Gb, Ex Tb IIIC T85° C Db, IP68 Ta = -40° to 70° C
Conduit Connection
- 1/2" BSP Female
- 1/2" NPT Female
- 3/4" BSP Female
- 3/4" NPT Female
- M20 x 1.5 Female
Element
- Dual Elements
- Single Element
Enclosure, Body Material
- 316 Stainless Steel, Electro-Polished
- Die Cast Aluminum, Epoxy Painted
Length
- N Length: 2 to 7" (50.8 to 177.8 mm)
RTD Type
- Pt100
Sensor, Probe Connection
- 3-Wire
- 4-Wire
Sensor, Probe Diameter
- Plain Capsule Sensor Diameter: 0.23" (6 mm)
- Plain Capsule Sensor Diameter: 0.25" (6.4 mm)
Sensor, Probe Type
- E Thermocouple
- J Thermocouple
- K Thermocouple
- RTD
- R Thermocouple
- S Thermocouple
- T Thermocouple
Documentation
Documentation
Reviews (0)
Review this product and let us know your experiences
Write a ReviewQ & A (0)
Similar Products
/92-Series-Spring-SS-Nipple-Union/Thumbs/400_main_IM_93_Series_Spring_Loaded_Stainless_Steel_Nipple_Union.png)
92 Series Spring Stainless Steel Nipple Union
International Metal Engineering (IME)
/93-Series-Spring-SS-Nipple/Thumbs/400_main_IM_93_Series_Spring_Loaded_Stainless_Steel_Nipple.png)
93 Series Spring Stainless Steel Nipple
International Metal Engineering (IME)
/Temperature-Sensor-Accessories/Thumbs/400_main_IM_Temperature_Sensor_Accessories.png)
Temperature Sensor Accessories
International Metal Engineering (IME)
/98-Series-Spring-SS-Nipple-Union/Thumbs/400_main_IM_99_Series_Temperature_Assembly.png)
98 Series Spring Stainless Steel Nipple Union
International Metal Engineering (IME)
/-1080-SS-Thermocouple-Head/Thumbs/400_main_IM-IME-Model-1080-Connection-Head-Image.png)
Model 1080 Stainless Steel Thermocouple Head
International Metal Engineering (IME)

RT7 RTD Assembly
Aircom Instrumentation Ltd.

Series 49 Die-Cast Aluminum Flip-Top Connection Heads
Pyromation

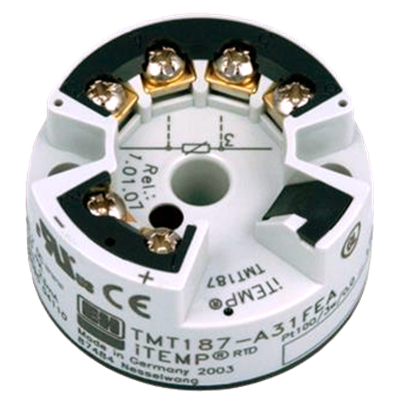

Series 442 Programmable HART® Temperature Transmitter
