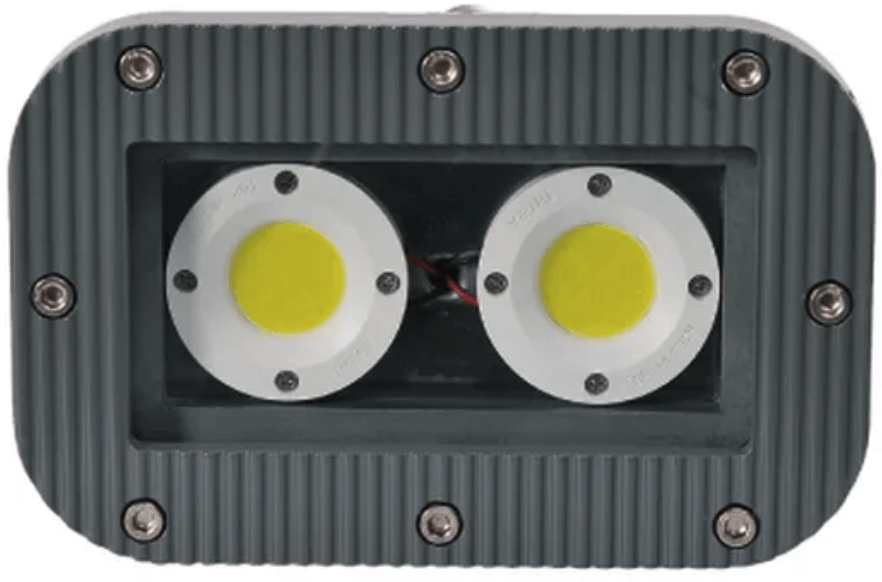

P1202 (COB) Explosion-Proof LED Light

Brand: Top Hi-Tech Inc.
  • Volt.: 24 V / 110 V / 120 V / 220 V / 277 V / 480 V AC
  • Watt.: 40 W (Watts of 24 V are different)
  • Amps: 0.08 A ~ 1.67 A
  • Frequency: 50 Hz / 60 Hz
  • Power Factor: cos ≧ 0.9, cos ≧ 0.87(480 V)
Ambient Temperature:
  • -20° C ~ +40° C, T5
  • -40° C ~ +40° C, T4 (UL Certification)
Degree of Protection - IP68 / NEMA 6P
IECEx Certification
  • Ex d IIB T5 Gb
  • Ex tb IIIC T100˚ C Db
ATEX Certification
  • II 2 G Ex d IIB T5 Gb
  • II 2 D Ex tb IIIC T100˚ C Db
UL Certification
  • UL844 - Class I, Division 2 (Groups A, B, C and D)
  • UL60079 - Zone 1, AEx d IIB+H2 / Zone 21, AEx tb IIIC
  • UL1598
CML Certification
  • Ex d IIB T5 Gb
  • Ex tb IIIC T100˚ C Db
ABS&CR Certification
  • II 2G Ex d IIB T5 Gb
  • II 2D Ex tb IIIC T100˚ C Db
TS Certification
  • Ex d IIB+H2 T5...T4 Gb
  • Ex tb IIIC T110˚ C IP67 Db
GB Certification
  • Ex d IIB T5 Gb
  • Ex tD A21 IP64 T100˚ C
Features
  • Compact size, Light weight and Portable
  • Heat Resistance 85° C to 100° C
  • Salt spray 1000 hrs passed
 Applicable Location:
  • Zone 1 & Zone 2
  • Zone 21 & Zone 22
  • Class I, Division 2 (Groups A, B, C and D)
show more
Images are representations only.
  • Volt.: 24 V / 110 V / 120 V / 220 V / 277 V / 480 V AC
  • Watt.: 40 W (Watts of 24 V are different)
  • Amps: 0.08 A ~ 1.67 A
  • Frequency: 50 Hz / 60 Hz
  • Power Factor: cos ≧ 0.9, cos ≧ 0.87(480 V)
Ambient Temperature:
  • -20° C ~ +40° C, T5
  • -40° C ~ +40° C, T4 (UL Certification)
Degree of Protection - IP68 / NEMA 6P
IECEx Certification
  • Ex d IIB T5 Gb
  • Ex tb IIIC T100˚ C Db
ATEX Certification
  • II 2 G Ex d IIB T5 Gb
  • II 2 D Ex tb IIIC T100˚ C Db
UL Certification
  • UL844 - Class I, Division 2 (Groups A, B, C and D)
  • UL60079 - Zone 1, AEx d IIB+H2 / Zone 21, AEx tb IIIC
  • UL1598
CML Certification
  • Ex d IIB T5 Gb
  • Ex tb IIIC T100˚ C Db
ABS&CR Certification
  • II 2G Ex d IIB T5 Gb
  • II 2D Ex tb IIIC T100˚ C Db
TS Certification
  • Ex d IIB+H2 T5...T4 Gb
  • Ex tb IIIC T110˚ C IP67 Db
GB Certification
  • Ex d IIB T5 Gb
  • Ex tD A21 IP64 T100˚ C
Features
  • Compact size, Light weight and Portable
  • Heat Resistance 85° C to 100° C
  • Salt spray 1000 hrs passed
 Applicable Location:
  • Zone 1 & Zone 2
  • Zone 21 & Zone 22
  • Class I, Division 2 (Groups A, B, C and D)

Specifications

Approvals & Certifications

  • ABS
  • ATEX Ex
  • cULus
  • GB
  • IECEx
  • TS

Beam

  • ≥ 110°

Enclosure, Body Material

  • Aluminum Alloy

Environmental Protection

  • IP67
  • IP68
  • NEMA 6
  • NEMA 6P

Frequency

  • 50/60 Hz

Lens

  • Tempered Glass: IEC Standards Impact Resistant > 4 Joule

Lumens

  • Lum/Watt: ≥ 100 (Cool White), ≥ 90 (Warm White)

Operating Temperature

  • -20° to 40° C (-4° to 104° F)

Screw Material

  • Stainless Steel

Voltage

  • 120 V / 277 V / 480 V AC

Wattage

  • 40 W (0.08 to 1.67 A)
