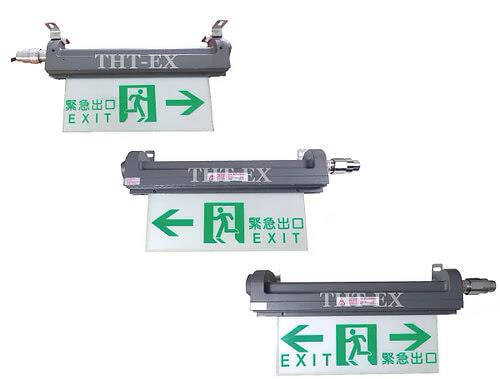

E1215 Explosion-Proof Exit Light

Brand: Top Hi-Tech Inc.
  • Volt.: 110-220 V AC
  • Watt.: 4 W
  • Frequency: 50 Hz / 60 Hz
  • Power Factor: 0.4 ~ 0.5
Ambient Temperature: -20° C ~ +40° C, T6
Degree of Protection - IP68 / NEMA 6P
TS Certification:
  • Ex db IIC T6 Gb
  • Ex tb IIIC T85˚ C Db
Features
  • IP68 rated for wet location
  • Salt spray 1000 hrs passed
 Applicable Location:
  • Zone 1 & Zone 2
  • Zone 21 & Zone 22
show more
Images are representations only.
  • Volt.: 110-220 V AC
  • Watt.: 4 W
  • Frequency: 50 Hz / 60 Hz
  • Power Factor: 0.4 ~ 0.5
Ambient Temperature: -20° C ~ +40° C, T6
Degree of Protection - IP68 / NEMA 6P
TS Certification:
  • Ex db IIC T6 Gb
  • Ex tb IIIC T85˚ C Db
Features
  • IP68 rated for wet location
  • Salt spray 1000 hrs passed
 Applicable Location:
  • Zone 1 & Zone 2
  • Zone 21 & Zone 22

Specifications

Approvals & Certifications

  • cULus
  • IEC/IECEx

Beam

  • ≧110°

Enclosure, Body Material

  • Aluminum Alloy

Environmental Protection

  • IP67
  • IP68
  • NEMA 6
  • NEMA 6P

Frequency

  • 50/60 Hz

Lens

  • Tempered Glass - IEC Standards Impact-Resistant > 4 Joule

Lumens

  • Per Watt: ≧ 100 (Cool White) / ≧ 90 (Warm White)

Operating Temperature

  • -20° to 40° C (-4° to 104° F)

Voltage

  • 120 V / 277 V / 480 V AC

Wattage

  • 120 W (0.25 ~ 1.0 A) 140 W (0.29 ~ 1.16 A)
