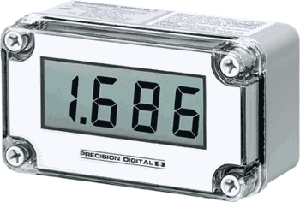

PD686 Loop-Powered NEMA 4X Intrinsically Safe & Nonincendive Digital Meter

Brand: Precision Digital Corporation
Request a Quote
Favorite
The PD686 is an FM Approved, CSA Certified intrinsically safe and nonincendive, NEMA 4X, IP67 loop-powered indicator that is easy to install and program. It can be seen from considerable distance and even in bright sunlight.

The fact that this meter is loop-powered means that there is no need to run additional, costly power lines into a hazardous area. The meter gets all of the power it needs from the 4-20 mA loop and its 1 V drop results in a minimal burden on the loop.

The meter features a wide -40° to +85° C operating temperature range and is available with a ½" conduit hole in a location of your choice for easy installation.

Calibration is a quick two-step process involving the adjustment of only high and low, non-interacting potentiometers.
Features
  • NEMA 4X, IP67 Loop-Powered Field-Mount Process Meter
  • 4-20 mA Input
  • 1.0" (25.4 mm) 3½ Digits LCD Display; -1999 to 1999
  • 1 V Drop
  • HART® Protocol Transparent
  • Operates from -40 to 85° C (-40 to 185° F)
  • Operates from -40 to 40° C (-40 to 104° F) for Canadian Installations
  • Zero & Span Potentiometer Adjustments for Easy Field Scaling
  • Plastic NEMA 4X, IP67 Enclosure
  • FM Approved & CSA Certified as Intrinsically Safe & Nonincendive
  • Conformal Coated PCBs for Dust and Humidity Protection
  • One ½" Conduit Hole (Rear, Top, Bottom or None)
  • Pipe & Panel Mounting Kits
  • Stainless Steel Tag Available
show more
The PD686 is an FM Approved, CSA Certified intrinsically safe and nonincendive, NEMA 4X, IP67 loop-powered indicator that is easy to install and program. It can be seen from considerable distance and even in bright sunlight.

The fact that this meter is loop-powered means that there is no need to run additional, costly power lines into a hazardous area. The meter gets all of the power it needs from the 4-20 mA loop and its 1 V drop results in a minimal burden on the loop.

The meter features a wide -40° to +85° C operating temperature range and is available with a ½" conduit hole in a location of your choice for easy installation.

Calibration is a quick two-step process involving the adjustment of only high and low, non-interacting potentiometers.
Features
  • NEMA 4X, IP67 Loop-Powered Field-Mount Process Meter
  • 4-20 mA Input
  • 1.0" (25.4 mm) 3½ Digits LCD Display; -1999 to 1999
  • 1 V Drop
  • HART® Protocol Transparent
  • Operates from -40 to 85° C (-40 to 185° F)
  • Operates from -40 to 40° C (-40 to 104° F) for Canadian Installations
  • Zero & Span Potentiometer Adjustments for Easy Field Scaling
  • Plastic NEMA 4X, IP67 Enclosure
  • FM Approved & CSA Certified as Intrinsically Safe & Nonincendive
  • Conformal Coated PCBs for Dust and Humidity Protection
  • One ½" Conduit Hole (Rear, Top, Bottom or None)
  • Pipe & Panel Mounting Kits
  • Stainless Steel Tag Available
Close

Displaying prices & availability for Virginia, United States in USD. Change location or currency.

PD686-Z
PRECISION DIGITAL 686 Loop-Powered Remote Display (No Hole), CSA
2 - 4 weeks
$388.40USD
$7.95 Shipping
PD686
PRECISION DIGITAL 686 Loop-Powered Remote Display, Bottom Conduit, CSA
2 - 4 weeks
$443.31USD
$7.95 Shipping
Close
Close

Specifications

Brand

Accuracy

  • ± 0.1% of Full Scale ± 1 Count

Approvals & Certifications

  • CSA
  • FM

Conduit Hole

  • One 1/2" Conduit Hole

Electrical Connectors

  • Terminal Block for 12 to 22 AWG Wire

Enclosure, Body Material

  • Impact-Resistant Glass-Filled Polycarbonate

Environmental Protection

  • IP66
  • NEMA 4X / IP66

Humidity

  • 0 to 90% Non-Condensing

Input

  • 4-20 mA

Operating Temperature

  • -40° to 85° C (-40° to 185° F)

Voltage Drop

  • 1 V at 20 mA
