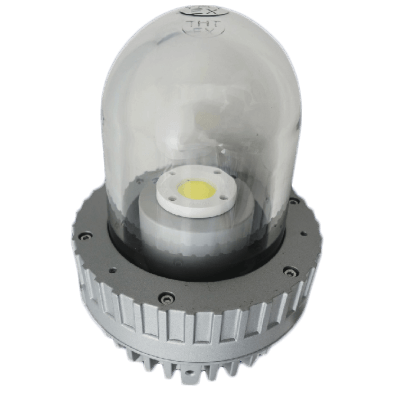

L1705A (COB) Explosion-Proof LED Light

Brand: Top Hi-Tech Inc.
Request Information
Favorite
Up to 100℃ Heat Resistant

Standards & Protections:

  • cULus Approved for Canada & US
  • CSA C22.2 (No.137-M1981), (No. 250.0), (No. 25-1966), (No. 250.13)
  • UL844, UL1598, UL8750
  • Class I, Division 2, Group A, B, C, D
  • Class II, Division 1, Group E, F, G
  • Class III
  • IP rating IP67 (NEMA 6)
Features
  • Model No.：L1705A
  • Suitable for various Hazardous Locations
  • LED Lighting provides 2 million times power cycle
  • High corrosion resistance
  • small volume and light weight
  • Easy installation and maintenance
  • Long lifespan
show more
Up to 100℃ Heat Resistant

Standards & Protections:

  • cULus Approved for Canada & US
  • CSA C22.2 (No.137-M1981), (No. 250.0), (No. 25-1966), (No. 250.13)
  • UL844, UL1598, UL8750
  • Class I, Division 2, Group A, B, C, D
  • Class II, Division 1, Group E, F, G
  • Class III
  • IP rating IP67 (NEMA 6)
Features
  • Model No.：L1705A
  • Suitable for various Hazardous Locations
  • LED Lighting provides 2 million times power cycle
  • High corrosion resistance
  • small volume and light weight
  • Easy installation and maintenance
  • Long lifespan
Close

Specifications

Brand

Frequency

  • 50/60 Hz

Rated Voltage (±10%)

  • 120 / 277V AC

Watts (±10%)

  • 20W

Amps

  • 20W: 120V: 0.17A, 277V: 0.07A

Color of LED Light

  • 5000K (Cool White)
  • 3000K (Warm White)

Ambient Temperature

  • Class II, Division 1: +40°C, T4A
  • Class I, Division 2: -40°C ~ +40°C, T3C

Power Factor

  • cos≧0.9

CRI

  • Warm White≧80
  • Cool White≧70

Lumen (± 10%)

  • 5000K: 20W: 2000lm
  • 3000K: 20W: 1800lm

Beam Angle

  • X-110° / Y-110°

Degree of Protection

  • IP67 / NEMA 6

Material

  • Enclosure: Aluminum Alloy

LED Service Life

  • 60,000 hrs

Entrance Thread

  • 1 x NPT
