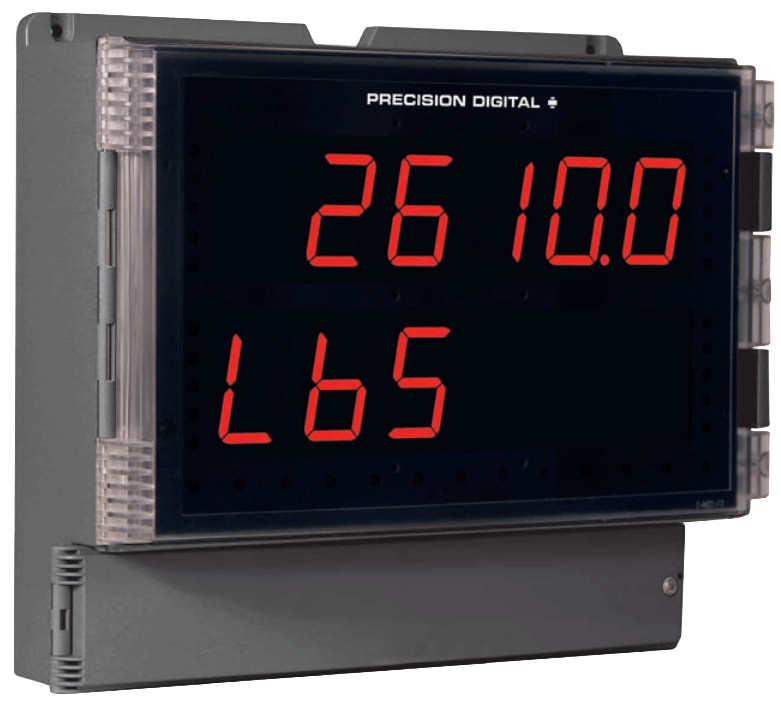

PD2-6100 Helios Strain Gauge, Load Cell & mV Meter

Brand: Precision Digital Corporation

Favorite

Go with the Helios PD2-6100 when you have a weighing application where you need to read the display from a distance, or outside in the bright sunlight in temperatures between -40° to 65° C (-40° to 150° F). The PD2-6100 tare feature can be used to remove the weight of the container from the weight calculation. You can even re-transmit the weight signal with the PD2-6100's optional 4-20 mA output.

Features

Large 1.80" digits
Dual-line 6-digit display
Readable from up to 100 feet (30 meters) away
Superluminous sunlight readable display
NEMA 4X, IP65 rated field mountable enclosure
Operating temperature range of -40° to 65° C (-40° to 150° F)
15, 30, 150, 300 mV Unipolar input ranges
±15, ±25, ±150, ±250 mV bipolar input ranges
Supports up to twelve (12) 350 Ω load cells
Capture or programmable tare feature
Maximum/minimum or peak/valley hold feature
Auto-zero feature eliminates zero drift
Universal 85 to 265 Vac, or 12 to 24 Vdc input power models
2 or 4 Relays + Isolated 4-20 mA output
Onboard USB & RS-485 serial communication option
Modbus RTU communication protocol standard
Program the meter from a PC with onboard USB and meterView Pro


Images are representations only.

Description

Features

Large 1.80" digits
Dual-line 6-digit display
Readable from up to 100 feet (30 meters) away
Superluminous sunlight readable display
NEMA 4X, IP65 rated field mountable enclosure
Operating temperature range of -40° to 65° C (-40° to 150° F)
15, 30, 150, 300 mV Unipolar input ranges
±15, ±25, ±150, ±250 mV bipolar input ranges
Supports up to twelve (12) 350 Ω load cells
Capture or programmable tare feature
Maximum/minimum or peak/valley hold feature
Auto-zero feature eliminates zero drift
Universal 85 to 265 Vac, or 12 to 24 Vdc input power models
2 or 4 Relays + Isolated 4-20 mA output
Onboard USB & RS-485 serial communication option
Modbus RTU communication protocol standard
Program the meter from a PC with onboard USB and meterView Pro

Inventory

Specifications

Brand

Precision Digital Corporation

Display

Two lines with 1.8" (46 mm) high digits, red LEDs; 6 digits per line (-99999 to 999999), with lead zero blanking

Display Intensity

Eight intensity levels

Display Update Rate

5/second (200 ms)

Overrange

Display flashes 999999

Underrange

Display flashes -99999

Display Assignment

The upper and lower displays may be assigned to PV1, PV2, PCT (percent), max/min, alternate max & min, set points, units (lower display only), or Modbus input.

Programming Methods

Four SafeTouch through-glass buttons when cover is installed. Four internal pushbuttons when cover is removed.

F4 Digital Input Contacts

3.3 VDC on contact. Connect normally open contacts across F4 to COM.

F4 Digital Input Logic Levels

Logic High: 3 to 5 VDC; Logic Low: 0 to 1.25 VDC

Noise filter

Programmable from 2 to 199 (0 will disable filter)

Filter Bypass

Programmable from 0.1 to 99.9% of calibrated span

Recalibration

Calibrated at the factory. Recalibration is recommended at least every 12 months.

Max/Min Display

Max / min readings reached by the process are stored until reset by the user or until power to the meter is turned off.

Password

Three programmable passwords restrict modification of programmed settings.

Non-Volatile Memory

All programmed settings are stored in nonvolatile memory for a minimum of ten years if power is lost.

Power Options

Powered over USB for configuration only.
85-265 VAC 50/60 Hz, 90-265 VDC, 20 W max
12-24 VDC ± 10%, 15 W max.

Fuse

Required external fuse: UL Recognized, 5 A max, slow blow; up to 6 meters may share one 5 A fuse

Isolated Sensor Power Supply

(Note: Do not use 24 VDC to power strain gauge bridge)
Terminals Ex+ & Ex-: 10 VDC or 5 VDC ± 10%. Rated @ 350 mA max

Normal Mode Rejection

Greater than 60 dB at 50/60 Hz

Isolation

4 kV input/output-to-power line. 500 V input-to-output or output-to-P+ supply

Overvoltage Category

Installation Overvoltage Category II: Local level with smaller transient overvoltages than Installation Overvoltage Category III.

Environmental

T6 Class Operating Temperature Range Ta = -40 to 60° C
T5 Class Operating Temperature Range Ta = -40 to 65° C

Max Power Dissipation

PD8 Series: Maximum power dissipation limited to 15.1 W. See PD8 instruction manual for additional details.

Connections

Removable screw terminal blocks accept 12 to 22 AWG wire, RJ45 for external relays, digital I/O, and serial communication adapters.

Enclosure

UL Type 4X, IP65 rated. Polycarbonate & glass blended plastic case, color: gray. Includes four PG11 through-hole conduit openings, with two factory installed PG11, IP68, black nylon threaded hole plugs with backing nuts.

Wall Mounting

Four (4) Mounting Holes Provided for Mounting Meter to Wall

Pipe Mounting

Optional pipe mounting kit (PDA6260) allows for pipe mounting. Sold separately.

Dimensions

10.63" x 12.59" x 4.77" (270 mm x 319.7 mm x 121.2 mm) (H x W x D)

Weight

6.10 lbs (2.76 kg)

UL File Number

UL & C-UL Listed. E160849; 508 Industrial Control Equipment

Warranty

3 years parts & labor

USB Connection

Compatibility: USB 2.0 Standard, Compliant Connector Type: Micro-B receptacle
Driver: Windows 98/SE, ME, 2000, Server 2003/2008, XP 32/64-Bit, Vista 32/64-Bit, Windows 7 32/64-Bit, Windows 10 32/64-Bit
Power: USB Port
Cable: USB A Male to Micro-B Cable
