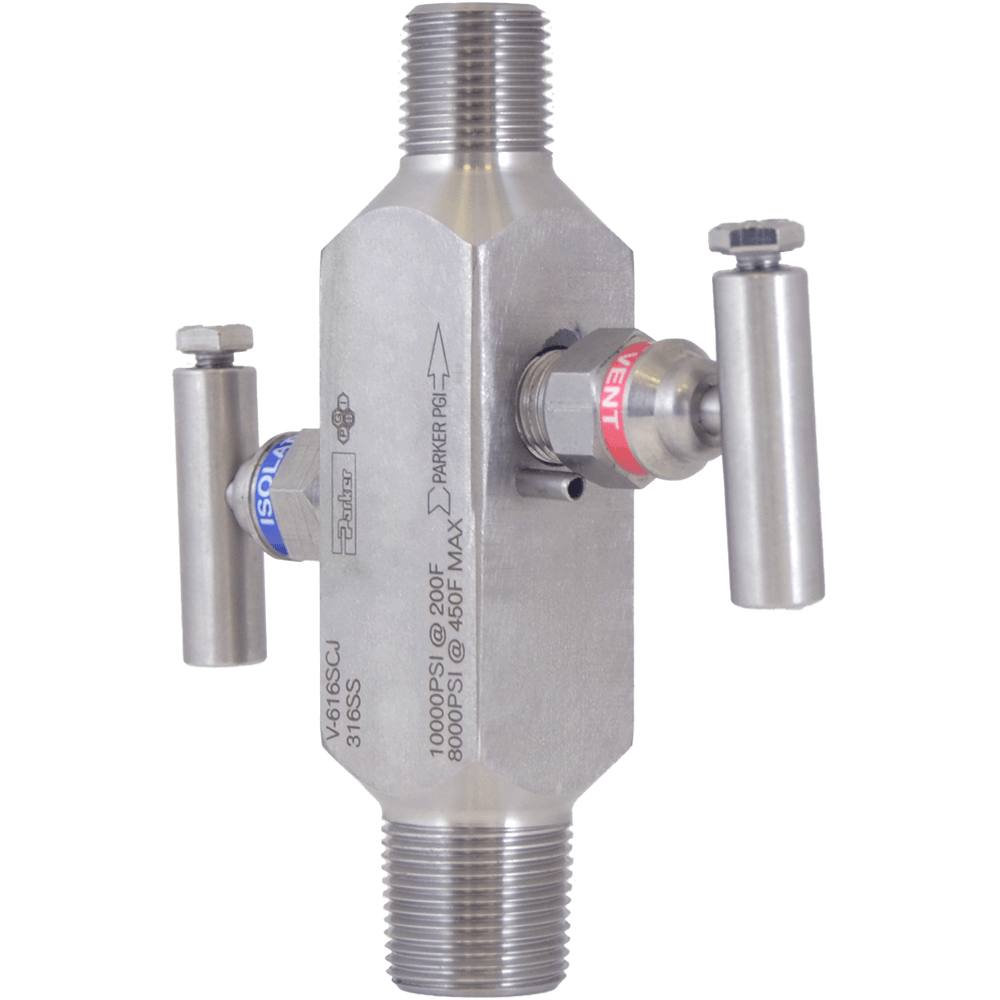

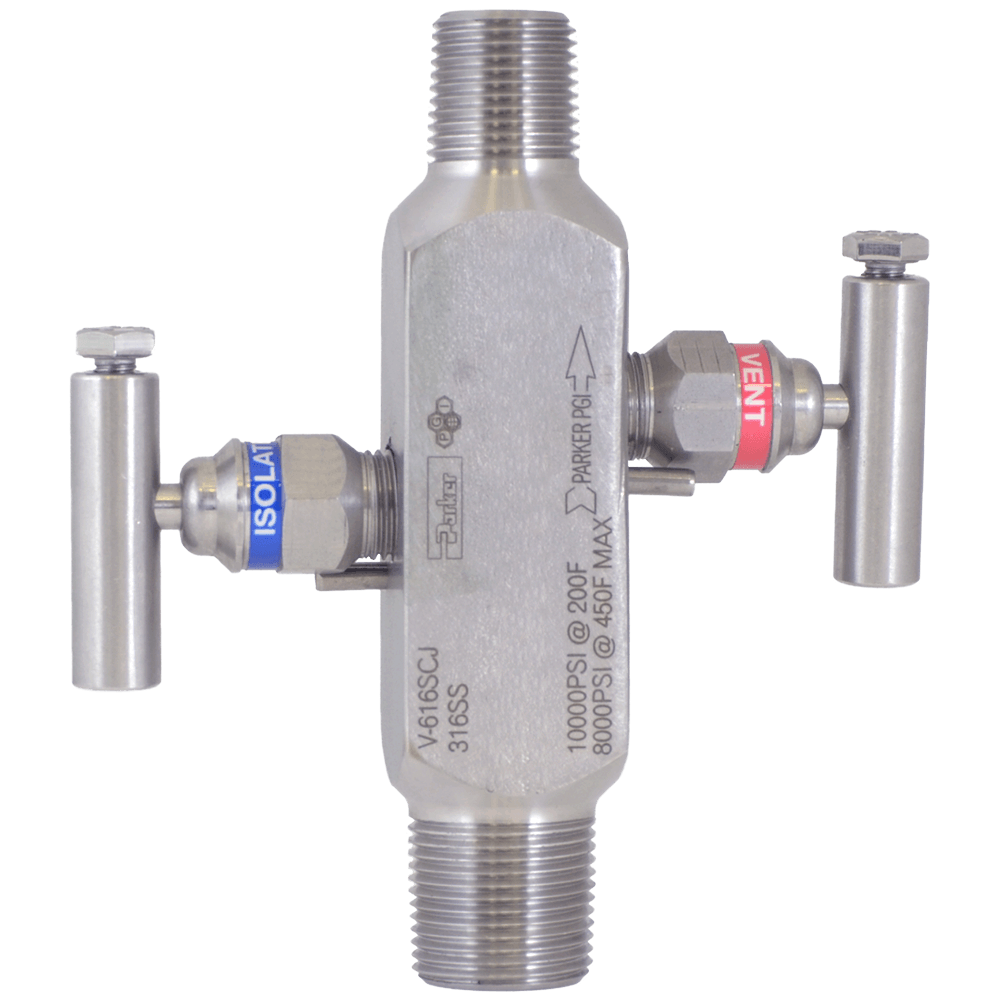

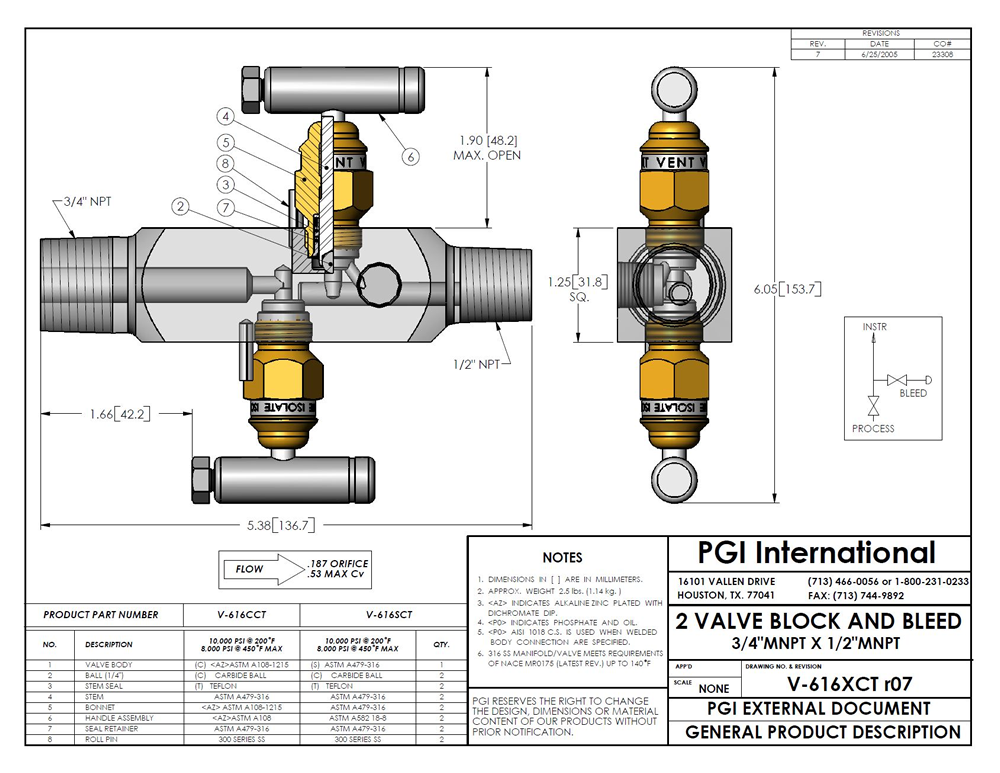

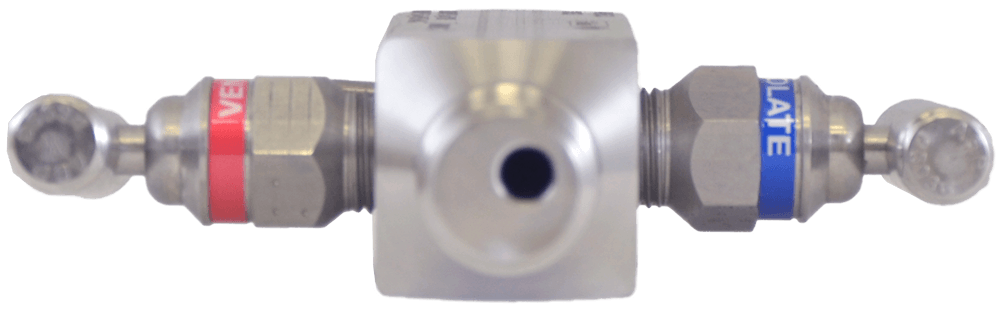

V-616 Block & Bleed Valve

Brand: PGI International
  • Design: Hard Seat Block and Bleed Valve
  • Inlet (Process) Connection: 3/4" NPT Male
  • Outlet (Instrument) Connection: 1/2" NPT Male
  • Standard Features:
    • Carbide Ball Seat
    • Teflon Pressure-Core Stem Seal for Low Temperatures
    • Max Pressure 10000 psi @ +200°F (+93°C) / 1000 psi @ +450°F (+232°C)
    • Stainless Steel Body and Bonnet
      • 316 Stainless Steel meets the requirements of NACE MR0175/ISO 15156-36
  • Benefits:
    • Non-rotating ball eliminates seat galling and ball creasing
    • Leak free, bubble tight seating
    • 100% Pressure Tested
show more
Images are representations only.
  • Design: Hard Seat Block and Bleed Valve
  • Inlet (Process) Connection: 3/4" NPT Male
  • Outlet (Instrument) Connection: 1/2" NPT Male
  • Standard Features:
    • Carbide Ball Seat
    • Teflon Pressure-Core Stem Seal for Low Temperatures
    • Max Pressure 10000 psi @ +200°F (+93°C) / 1000 psi @ +450°F (+232°C)
    • Stainless Steel Body and Bonnet
      • 316 Stainless Steel meets the requirements of NACE MR0175/ISO 15156-36
  • Benefits:
    • Non-rotating ball eliminates seat galling and ball creasing
    • Leak free, bubble tight seating
    • 100% Pressure Tested
64 models matching criteria
V-570-SCJ
PGI Block-Valve, 1/2" MNPT x 1/2 FNPT, SST, NACE
5 In Stock
$129.26USD
$8.23 Shipping
V-572-SCJ
PGI Hard Seat Block & Bleed Valve, 3/4 MNPT x 1/2" FNPT, SST, NACE
5 In Stock
$191.84USD
$8.23 Shipping
V-528-SCJ
PGI Needle-Valve, 3/4" MNPT x 1/2" FNPT
4 In Stock
$81.51USD
$8.23 Shipping
V-612-SCJ
PGI Block & Bleed, 1/2" MNPT x 1/2" MNPT, SST, NACE
4 In Stock
$279.11USD
$8.23 Shipping
V-616-SCJ
PGI Block & Bleed, 3/4" MNPT x 1/2" MNPT, SST, NACE
4 In Stock
$371.32USD
$8.23 Shipping
V-690-SCJ
PGI Block & Bleed, 1/2" MNPT x 1/2" FNPT, SST, Teflon
2 In Stock
$282.40USD
$8.23 Shipping
V-556-CDV-H5
PGI Hand-Valve, 1/4" M x F, CS, CS Mini Rd.Handle
2 - 4 weeks
$28.82USD
$8.23 Shipping
V-528-CCT
PGI Hard Seat Hand Valve, 3/4" MNPT x 1/2" FNPT, Teflon Packing
6 - 8 weeks
$69.16USD
$8.23 Shipping
V-528-SCG
PGI Hard Seat Hand Valve, 3/4" MNPT x 1/2" FNPT, Grafoil Packing
2 - 4 weeks
$122.68USD
$8.23 Shipping
V-600-SCT
PGI Block & Bleed, 1/2" MNPT x 1/2" FNPT, SST, NACE
6 - 7 weeks
$136.67USD
$8.23 Shipping
V-614-SCJ-P9
PGI Block & Bleed, 1/2" FNPT x 1/2" MNPT, 1/4" Hex Head Pipe Plug, 316 SS, Carbide Ball, PTFE
2 - 4 weeks
$139.97USD
$8.23 Shipping
V-600-SCJ
PGI Block & Bleed, 1/2" MNPT x 1/2" FNPT, SST, Low Temp, NACE
7 - 8 weeks
$142.44USD
$8.23 Shipping
V-530-SCJ
PGI Hard Seat Multi-Port Gauge Valve, 1/2" MNPT x 1/4" FNPT, Straight Valve
2 - 4 weeks
$158.90USD
$8.23 Shipping
V-526-SCT
PGI Hard Seat Bleeder Screw Gauge Valve, 3/4" MNPT x 1/2" FNPT, SST, NACE
6 - 8 weeks
$164.67USD
$8.23 Shipping
V-522-SCJ
PGI Hard Seat Bleeder Screw Gauge Valve, 1/2" MNPT x 1/2" FNPT, SST, Low Temp
2 - 4 weeks
$170.43USD
$8.23 Shipping
V-522-CCV
PGI Hard Seat Bleeder Screw Gauge Valve, 1/2" MNPT x 1/2" FNPT, SST, Low Temp
2 - 4 weeks
$182.78USD
$8.23 Shipping
V-572-SCJ-P9
PGI Hard Seat Block & Bleed Valve, 3/4 MNPT x 1/2" FNPT, SST, NACE, c/w Vent Plug
2 - 3 weeks
$200.89USD
$8.23 Shipping
V-526-SCJ
PGI Hard Seat Bleeder Screw Gauge Valve, 3/4" MNPT x 1/2" FNPT, SST, NACE, Low Temp
3 - 5 weeks
$205.83USD
$8.23 Shipping
V-616 Block & Bleed Valve
PGI International Block & Bleed Valve
1 - 3 weeks
$230.53USD
$8.23 Shipping
V-572-SCT
PGI Hard Seat Block & Bleed Valve, 3/4 MNPT x 1/2" FNPT, SST, NACE, Teflon« Pressure-Core
2 - 4 weeks
$239.59USD
$8.23 Shipping
V-614-S6P
PGI Block & Bleed, 1/2" FNPT x 1/2" MNPT, SST, NACE
7 - 8 weeks
$248.64USD
$8.23 Shipping
V-690-S6T
PGI Block & Bleed, 1/2" MNPT x 1/2" FNPT, SST, Teflon, 316 SST Ball Seat
2 - 4 weeks
$257.70USD
$8.23 Shipping
V-572-S6P-P9
PGI Hard Seat Block & Bleed Valve, 1/2" MNPT x 1/2" FNPT, SST, NACE, 1/4" Hex Head Plug
2 - 4 weeks
$259.35USD
$8.23 Shipping
V-529-SDT
PGI Hand Valve, 3/4" x 1/2" FNPT, 316 SST, 0.187 Orifice, PTFE Pressure Core Stem Seal
5 - 6 weeks
$260.99USD
$8.23 Shipping
V-570-SCT
PGI Block-Valve, 1/2" MNPT x 1/2 FNPT, SST, PTFE Pressure-Core Seal, Carbide Ball Seat
2 - 4 weeks
$260.99USD
$8.23 Shipping

V-616

Inlet (Process) Connection Size

Outlet (Instrument) Connection Size

Body and Bonnet Material

Seat Material

Stem Packing Material
