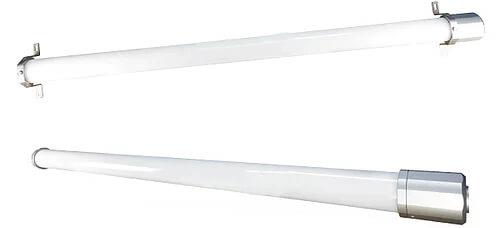

L1908 Hazardous Location Tube Light

Brand: Top Hi-Tech Inc.
  • Volt.: 120 V / 220 V / 277 V / 347 V / 480 V AC
  • Watt.: S-10 W (1 ft) / M-20 W (2 ft) / L-40 W, 60 W (4 ft) (60 W for 120 V / 220 V / 277 V only)
  • Amps: 10 W (0.02 ~ 0.08 A) / 20 W (0.04 ~ 0.17 A) / 40 W (0.08 ~ 0.33 A) / 60 W (0.22 ~ 0.50 A)
  • Frequency: 50 Hz / 60 Hz
  • Power Factor: cos ≧ 0.9
Ambient Temperature:
  • CID2: -40° C ~ +50° C, T4 / -40° C ~ +60° C, T3C
  • CIID2: +50° C, T6 / +60° C, T5
Degree of Protection - IP68 / NEMA 6P


UL Certification
  • UL844 - Class I, Division 2 (Groups A, B, C and D) / Class II, Division 2 (Group F and G) / Class III
  • UL1598
  • UL8750
Features
  • Product comes with outlet box for easier installation
  • Compact size and lightweight mounting bracket design
 Applicable Location
  • Class I, Division 2 (Groups A, B, C and D)
  • Class II, Division 2 (Group F and G)
  • Class III
show more
Images are representations only.
  • Volt.: 120 V / 220 V / 277 V / 347 V / 480 V AC
  • Watt.: S-10 W (1 ft) / M-20 W (2 ft) / L-40 W, 60 W (4 ft) (60 W for 120 V / 220 V / 277 V only)
  • Amps: 10 W (0.02 ~ 0.08 A) / 20 W (0.04 ~ 0.17 A) / 40 W (0.08 ~ 0.33 A) / 60 W (0.22 ~ 0.50 A)
  • Frequency: 50 Hz / 60 Hz
  • Power Factor: cos ≧ 0.9
Ambient Temperature:
  • CID2: -40° C ~ +50° C, T4 / -40° C ~ +60° C, T3C
  • CIID2: +50° C, T6 / +60° C, T5
Degree of Protection - IP68 / NEMA 6P


UL Certification
  • UL844 - Class I, Division 2 (Groups A, B, C and D) / Class II, Division 2 (Group F and G) / Class III
  • UL1598
  • UL8750
Features
  • Product comes with outlet box for easier installation
  • Compact size and lightweight mounting bracket design
 Applicable Location
  • Class I, Division 2 (Groups A, B, C and D)
  • Class II, Division 2 (Group F and G)
  • Class III

Specifications

Approvals & Certifications

  • ABS
  • ATEX
  • GB
  • IECEx

Beam

  • ≧110°

Enclosure, Body Material

  • Aluminum Alloy

Environmental Protection

  • IP67
  • IP68
  • NEMA 6
  • NEMA 6P

Frequency

  • 50/60 Hz

Lens

  • Tempered Glass - IEC Standards Impact-Resistant > 4 Joule

Lumens

  • Per Watt: ≧ 100 (Cool White) / ≧ 90 (Warm White)

Operating Temperature

  • -20° to 40° C (-4° to 104° F)

Voltage

  • 24-220 Vac

Wattage

  • 110 W (4.58 A / 1 A / 0.5 A) 120 W (5 A / 1.09 A / 0.55 A)
