Description

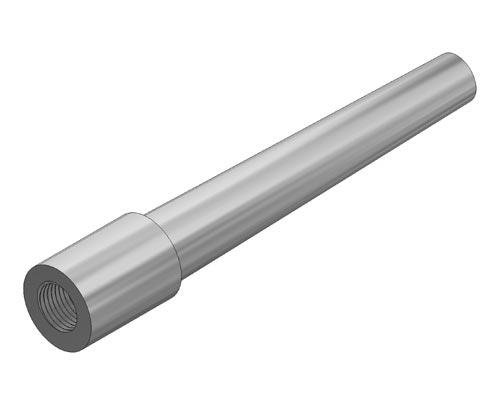

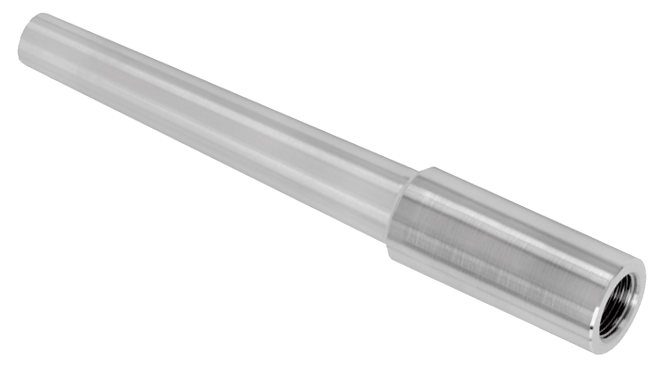

Tapered 0.260" Bore:
- Process Connection: 3/4" Pipe, 1" Pipe
- Material: 304L Stainless Steel, 316L Stainless Steel

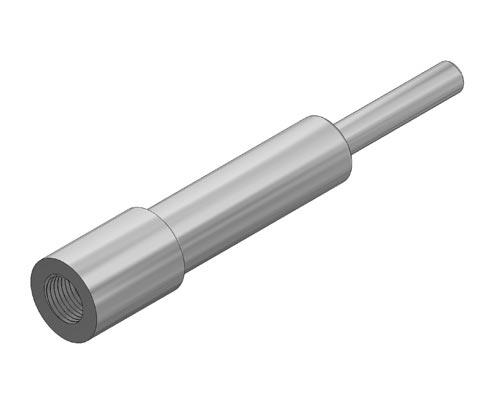

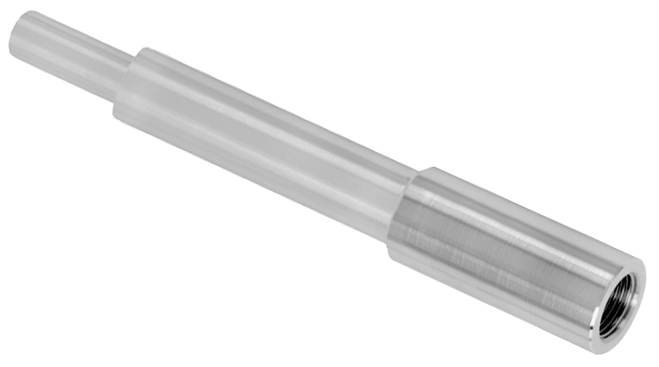

Stepped 0.260" Bore:
- Process Connection: 3/4" Pipe, 1" Pipe
- Material: 304L Stainless Steel, 316L Stainless Steel
Configure
Specifications
Specifications
Bore Size
- 0.260" (6.6 mm)
Insertion 'U' Length
- Custom Lengths in inches
Materials of Construction
- 304L Stainless Steel
- 316L Stainless Steel
NPT Connection
- 1/2" NPT Female
Pipe Size
- 3/4" to 1" (19 to 25.4 mm)
Documentation
Documentation
Catalogs
- Thermowell-Socket-Weld-Stepped-SW26-D16-3.pdf (/documents/Aircom-Instrumentation-Ltd/SW24/SW26-Thermowell/Thermowell-Socket-Weld-Stepped-SW26-D16-3-pdf) (300 KB)
- Thermowell-Socket-Weld-Tapered-SW24-D15-2.pdf (/documents/Aircom-Instrumentation-Ltd/SW24/SW26-Thermowell/Thermowell-Socket-Weld-Tapered-SW24-D15-2-pdf) (340 KB)
