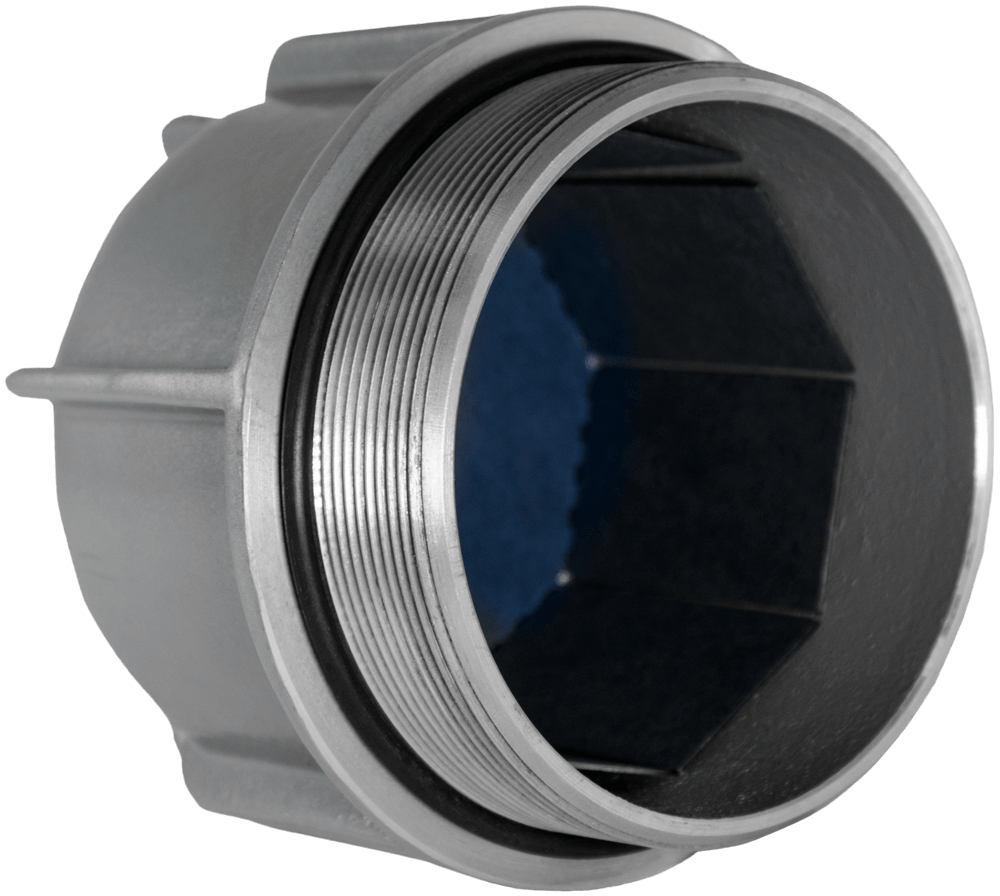

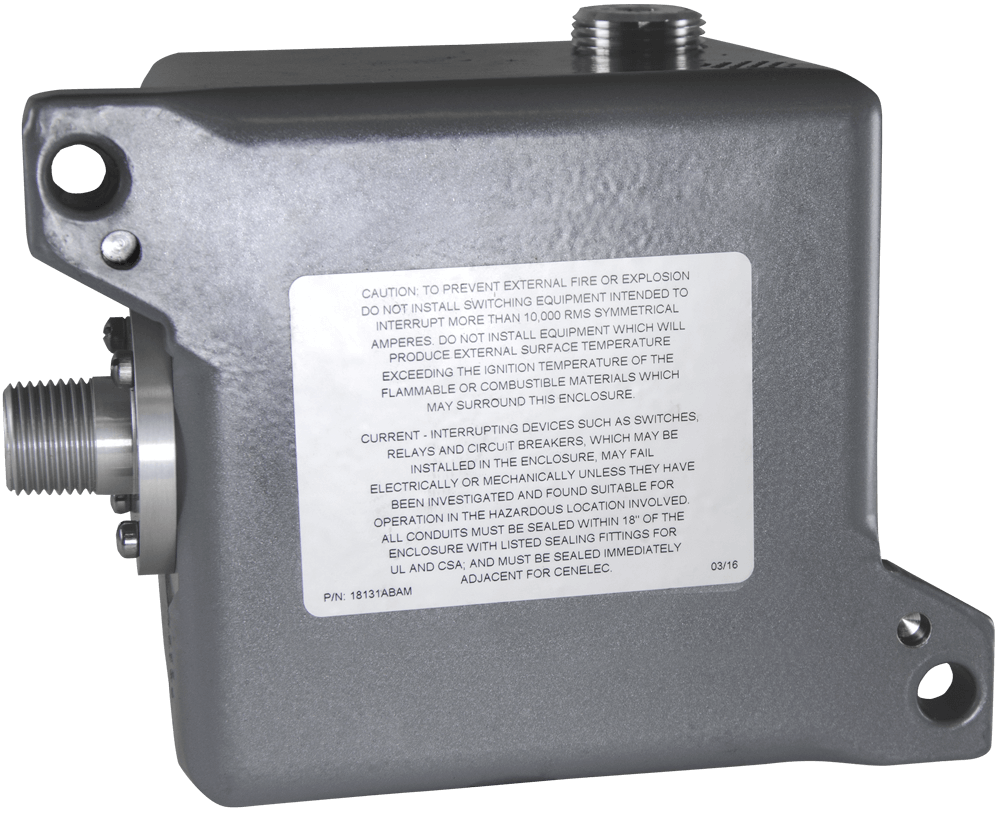

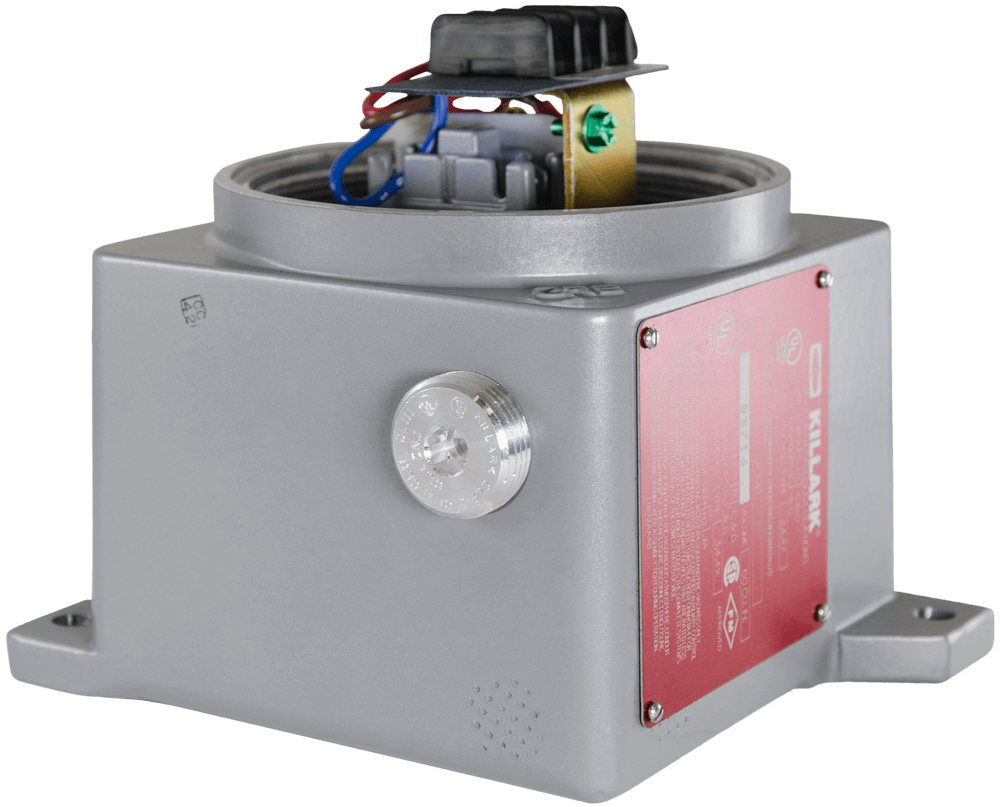

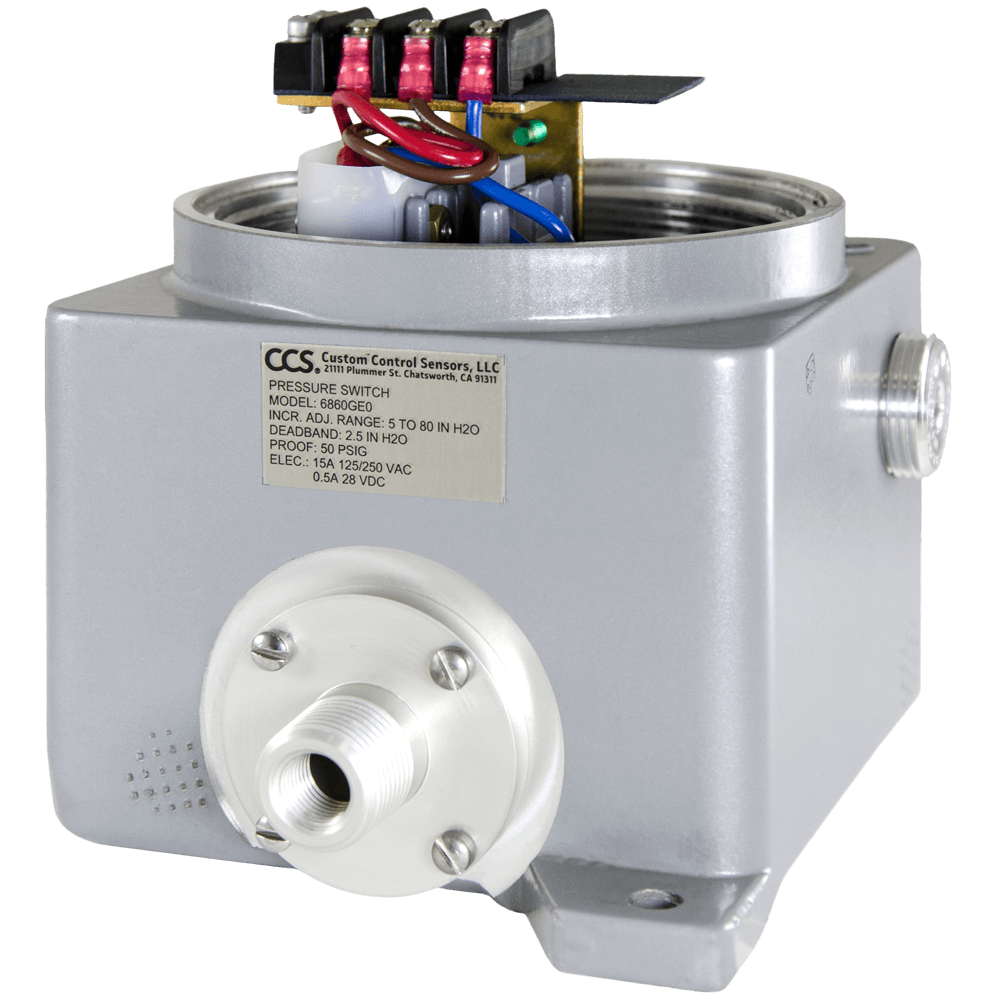

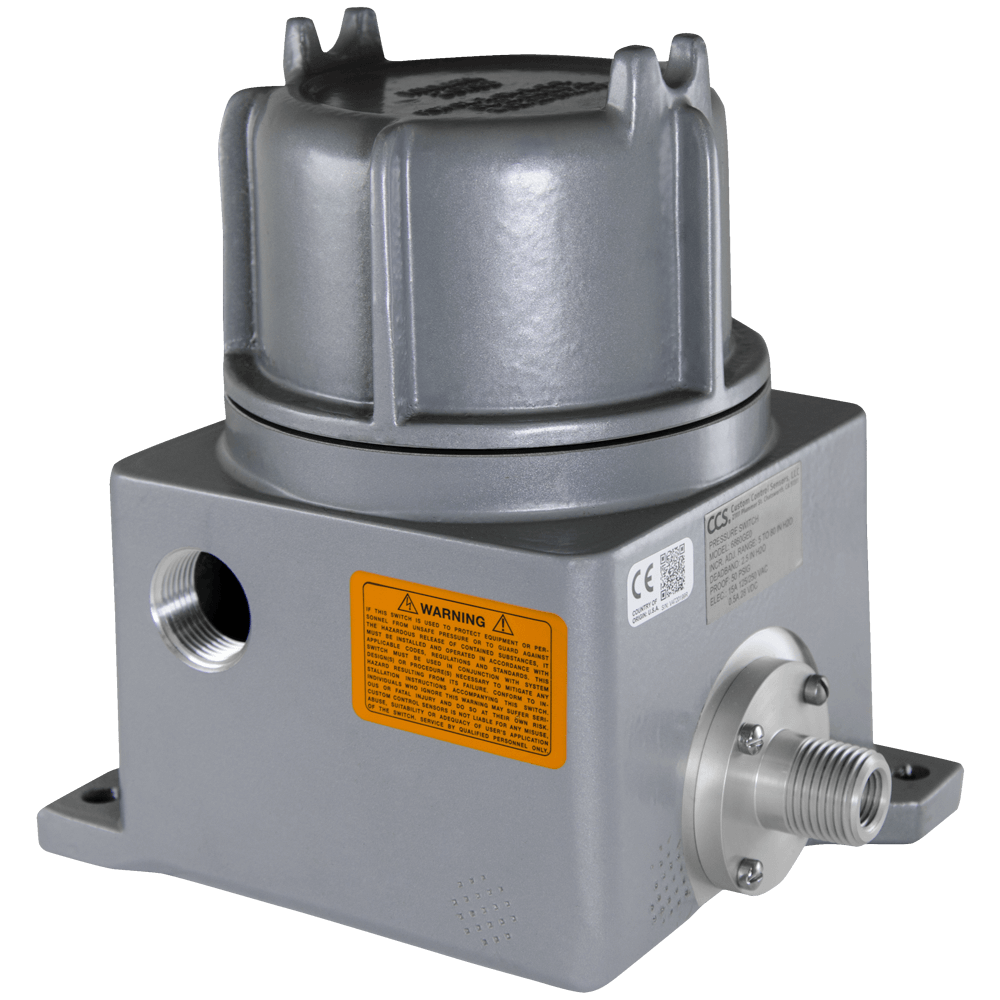

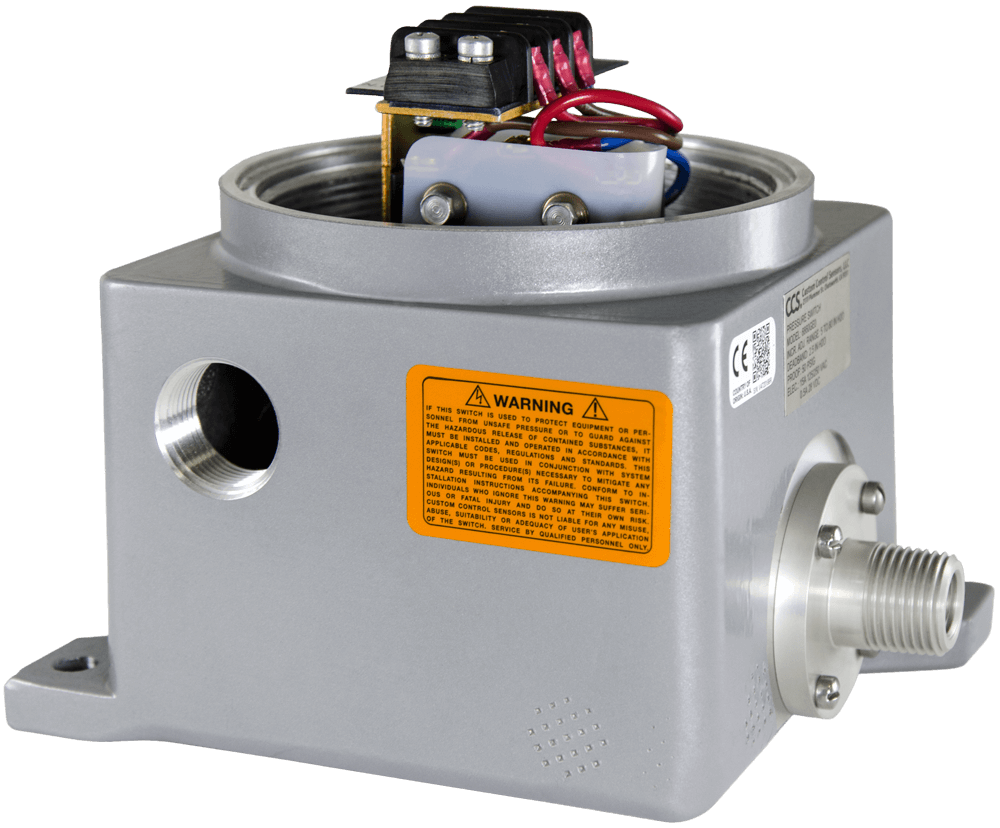

6862GE Series Pressure Switch

Brand: Custom Control Sensors
Request Information
Favorite
Features
  • Rigid and internally adjustable for convenient field set point adjustment.
  • Repeatable and stable set points.
  • High cycle life.
  • High over-pressure capability.
  • Equipped with certified explosion proof electrical enclosure.
  • Allows for dual set points.
show more
Features
  • Rigid and internally adjustable for convenient field set point adjustment.
  • Repeatable and stable set points.
  • High cycle life.
  • High over-pressure capability.
  • Equipped with certified explosion proof electrical enclosure.
  • Allows for dual set points.
Close

Displaying prices & availability for Virginia, United States in USD. Change location or currency

6862GE1
CCS DUAL-SNAP Pressure Switch, Haz. Area, 1/4" NPT Aluminum Port, Polyimide, Buna-N View More
  • Adjustable Set Point Range:

    • Increasing: 1 to 27 psig, 6.9 to 186.1 kPa, 0.069 to 1.86 bar
    • Decreasing: .95 to 26.75 psig, 6.6 to 184.4 kPa, 0.065 to 1.85 bar

  • Deadband: Approximately: 0.1 to 0.2 psi, 0.69 to 1.37 kPa, 6.89 to 13.79 mbar
  • System Pressure (Maximum): 75 psig, 517.11 kPa, 5.17 bar
  • Proof Pressure: 100 psig, 689.48 kPa, 6.89 bar
  • Wetted Materials:
    • Pressure Port: 1/4" FNPT Aluminum
    • Diaphragm: Polyimide
    • O-Ring: Buna N

  • Relay: SPDT
  • CE Mark,
  • Explosion Proof CSA approved Enclosure
Contact For Inventory
6862GE3
CCS DUAL-SNAP Pressure Switch, Haz. Area, 1/4" NPT Aluminum Port, Polyimide, Buna-N View More
  • Adjustable Set Point Range:
    • Increasing: 3 to 100 psig, 20.7 to 689.4 kPa, 0.21 to 6.89 bar
    • Decreasing: 2.8 to 98.5 psig, 19.4 to 679.1 kPa, 0.19 to 6.79 bar

  • Deadband: Approximately: 0.2 to 1 psi, 1.4 to 6.8 kPa, 13.79 to 68.9 mbar
  • System Pressure (Maximum): 200 psig, 1378.95 kPa, 13.79 bar
  • Proof Pressure: 250 psig, 1723.68 kPa, 17.24 bar
  • Wetted Materials:
    • Pressure Port: 1/4" FNPT Aluminum
    • Diaphragm: Polyimide
    • O-Ring: Buna N

  • Relay: SPDT
  • CE Mark, Explosion Proof Enclosure
Contact For Inventory
Close
Close

Specifications

Brand

Adjustment Type

  • Field Adjustable

Approvals & Certifications

  • CE
  • CRN
  • CRN - Saskatchewan
  • EMC
  • LVD
  • RoHS

Deadband, Approximate

  • mbar: 6.89 to 68.9
  • psi: 0.1 to 1

Diaphragm Material

  • Polyimide

Electrical Certification

  • CSA #C22.2 No. 30-M1986 - Explosion-proof Enclosure for use in Class I Hazardous Locations. File #L
  • FM #3600 & 3615 File #2Y4A5.AE
  • UL #UL 886 - Outlet Boxes & Fittings for use in Hazardous (Classified) Locations. File #E10514. #UL 1203 - Explosion-proof & Dust Ignition-Proof Electrical Equipment. File #E83969

Electrical Connectors

  • 3/4” NPT Female

Electrical Contacts

  • Gold
  • Silver

Electrical Rating

  • 15 A at 125/250/480 Vac Resistive, 0.4 A at 125 Vdc, 0.2 A at 250 Vdc

Enclosure, Body Material

  • Aluminum

Environmental Protection

  • Hazardous Area
  • IP66
  • IP67
  • NEMA 13
  • NEMA 4
  • NEMA 7
  • NEMA 9

NPT Connection

  • 1/4” NPT Female

Operating Temperature

  • -40° to 86° C (-40° to 187° F)

O-Ring Material

  • Buna-N

Process Connection Material

  • Aluminum

Proof Pressure

  • bar: 6.89 to 17.24
  • kPa: 689.5 to 1,724
  • psig: 100 to 250

Service

  • Sweet (Oil & Gas)

Set Point - Decreasing

  • bar: 0.065 to 6.79
  • kPa: 6.6 to 679.1
  • psig: 0.95 to 98.5

Set Point - Increasing

  • bar: 0.069 to 6.89
  • kPa: 6.9 to 689.4
  • psig: 1 to 100

Standard Features

  • Weatherproof

System Pressure

  • bar: 5.17 to 13.79
  • kPa: 517.2 to 1,379
  • psig: 75 to 200
