V-500 Instrument Hand Valve

Brand: PGI International
Request a Quote
Favorite
  • Design: Hard Seat Instrument Hand Valve
  • Inlet (Process) Connection: 1/4" NPT Male
  • Outlet (Instrument) Connection: 1/4" NPT Female
  • Standard Features:
    • Carbide Ball Seat
    • Teflon Pressure-Core Stem Seal for Low Temperatures
    • Max Pressure 10000 psi @ +200°F (+93°C) / 1000 psi @ +450°F (+232°C)
    • Stainless Steel Body and Bonnet
      • 316 Stainless Steel meets the requirements of NACE MR0175/ISO 15156-36
  • Benefits:
    • Non-rotating ball eliminates seat galling and ball creasing
    • Leak free, bubble tight seating
    • 100% Pressure Tested
show more

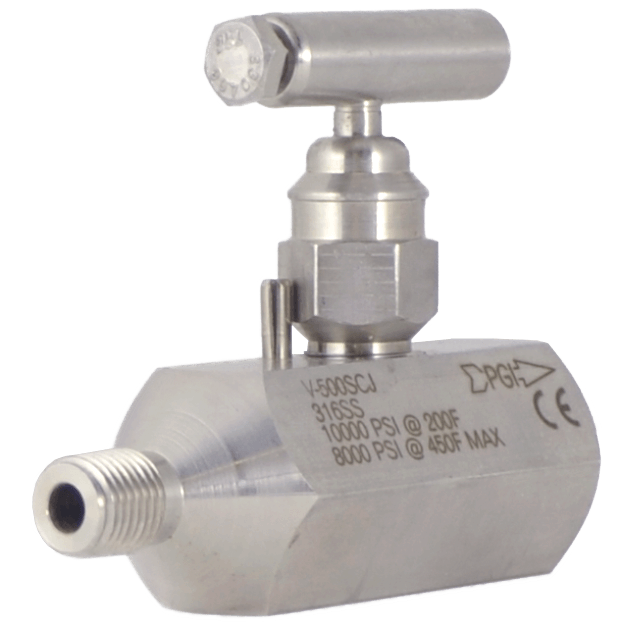

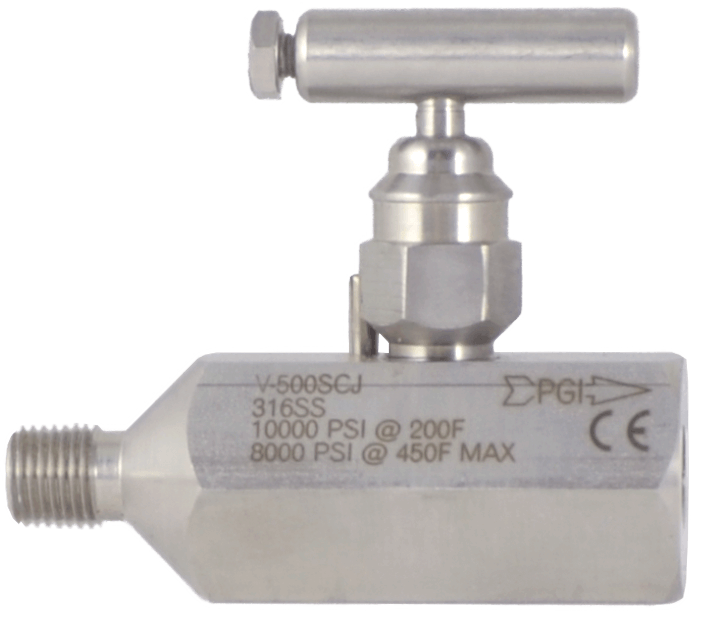

main_V-500SCJ.png 003_V-500SCJ_LeftAngle.png 004_V-500SCJ_RightAngle.png 002_V-500_Drawing.png
main_V-500SCJ.png 003_V-500SCJ_LeftAngle.png 004_V-500SCJ_RightAngle.png 002_V-500_Drawing.png
Images are representations only.
  • Design: Hard Seat Instrument Hand Valve
  • Inlet (Process) Connection: 1/4" NPT Male
  • Outlet (Instrument) Connection: 1/4" NPT Female
  • Standard Features:
    • Carbide Ball Seat
    • Teflon Pressure-Core Stem Seal for Low Temperatures
    • Max Pressure 10000 psi @ +200°F (+93°C) / 1000 psi @ +450°F (+232°C)
    • Stainless Steel Body and Bonnet
      • 316 Stainless Steel meets the requirements of NACE MR0175/ISO 15156-36
  • Benefits:
    • Non-rotating ball eliminates seat galling and ball creasing
    • Leak free, bubble tight seating
    • 100% Pressure Tested
Close

Displaying prices & availability for VA, United States in USD. Change location or currency.

V-500-SCJ
PGI Hard Seat Hand Valve, 1/4" MNPT x 1/4" FNPT, SST, NACE, Low Temperature
Out of Stock
V-507-P6G
PGI Hand-Valve, 1/2" MNPT x 1/2" FNPT, ASTM A105 CF Carbon Steel, Low-Torque Grafoil Packed
Out of Stock
Close

V-500

Inlet (Process) Connection Size

Outlet (Instrument) Connection Size

Body and Bonnet Material

Seat Material

Stem Packing Material

View Details

V-500

Out of Stock
Close

Specifications

Brand

Enclosure, Body Material

  • ASTM A479-316 Stainless Steel
  • Carbon Steel

Handle Assembly Material

  • ASTM A581 18-8 300 Stainless Steel

Maximum Cv Ratings

  • Cv 0.53 on 0.187" Orifice

NACE & NIST

  • NACE MR-0175, ISO 15156-36

NPT Inlet

  • 1/4" NPT Male

NPT Outlet

  • 1/4" NPT Female

Orifice Size

  • 0.187"

Packing Material

  • Teflon
  • Teflon Pressure-Core® Stem Seal for Low Temperatures -45.5° C (-50° F)

Pressure Rating

  • psi: 10,000 at 93° C (200° F)
  • psi: 8,000 at 232° C (450° F)

Process Temperature

  • -45° to 232° C (-50° to 450° F)

Seal Retainer

  • ASTM A479-316 Stainless Steel

Seat/Seal Material

  • Carbide

Stem Material

  • ASTM A479-316 Stainless Steel
Close

Review this product and let us know your experiences

Write a Review
Close

Similar Products

V-528 Instrument Hand Valve
V-528 Instrument Hand Valve
PGI International
V-502 Instrument Hand Valve
V-502 Instrument Hand Valve
PGI International

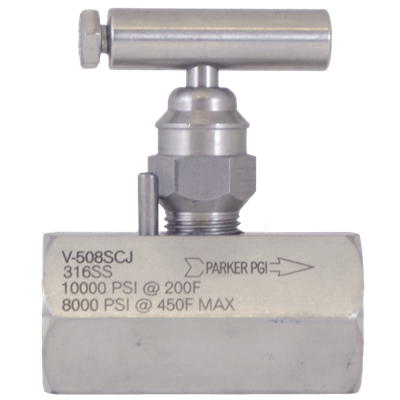

V-508 Instrument Hand Valve
V-508 Instrument Hand Valve
PGI International

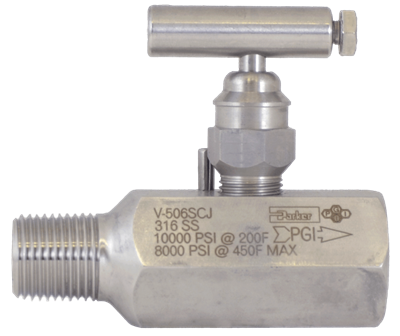

V-506 Instrument Hand Valve
V-506 Instrument Hand Valve
PGI International
V-614 Block & Bleed Valve
V-614 Block & Bleed Valve
PGI International

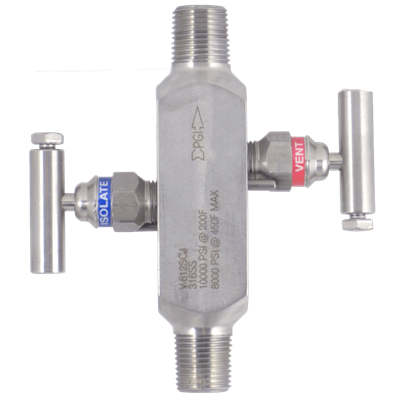

V-612 Block & Bleed Valve
V-612 Block & Bleed Valve
PGI International

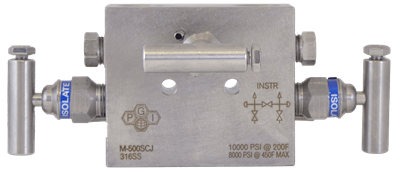

M-500 Three-Valve Manifold
