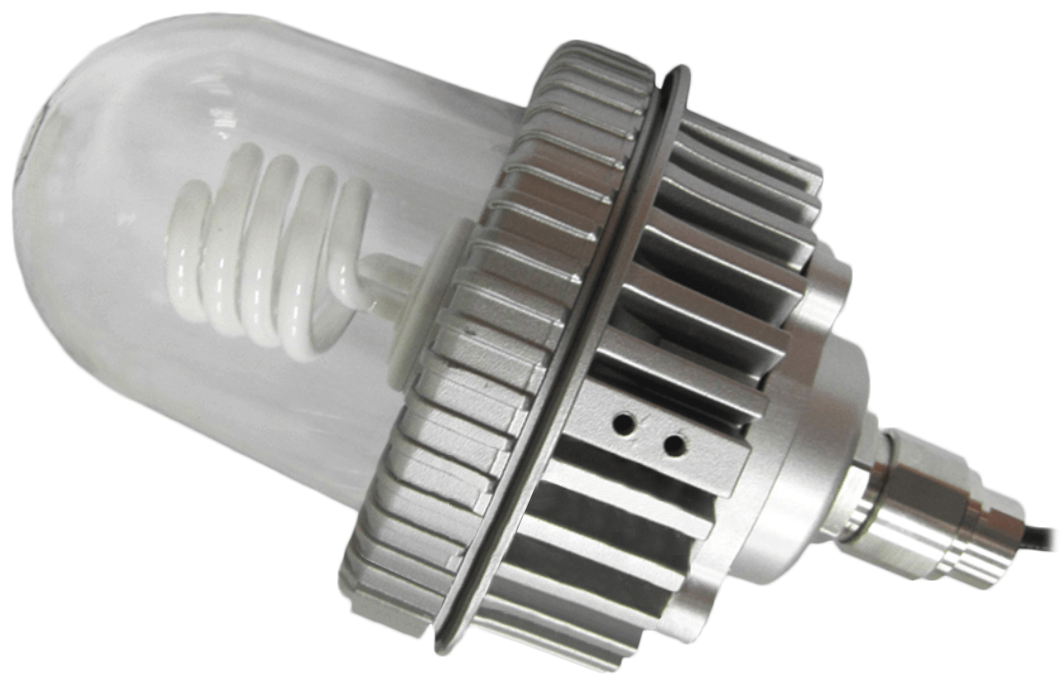

L1605B Hazardous Location Bulb Light (LED)

Brand: Top Hi-Tech Inc.
  • Volt.: 110 V (27 W only) / 220 V AC
  • Watt.: 23 W / 27 W
  • Amps: 23 W (220 V: 0.10 A) / 27 W (110 V: 0.25 A, 220 V: 0.12 A)
  • Frequency: 50 Hz / 60 Hz
  • Power Factor: cos ≧ 0.9
Ambient Temperature: -20° C ~ +50° C, T5
Degree of Protection - IP67 / NEMA 6
TS Certification:
  • Ex nR IIC T5 Gc
  • Ex tb IIIC T100˚ C Db
Features
  • Power Saving Light
  • Waterproof protection IP67
  • Salt spray 1000 hrs passed
Applicable Location:
  • Zone 1 & Zone 2
  • Zone 21 & Zone 22
show more
Images are representations only.
  • Volt.: 110 V (27 W only) / 220 V AC
  • Watt.: 23 W / 27 W
  • Amps: 23 W (220 V: 0.10 A) / 27 W (110 V: 0.25 A, 220 V: 0.12 A)
  • Frequency: 50 Hz / 60 Hz
  • Power Factor: cos ≧ 0.9
Ambient Temperature: -20° C ~ +50° C, T5
Degree of Protection - IP67 / NEMA 6
TS Certification:
  • Ex nR IIC T5 Gc
  • Ex tb IIIC T100˚ C Db
Features
  • Power Saving Light
  • Waterproof protection IP67
  • Salt spray 1000 hrs passed
Applicable Location:
  • Zone 1 & Zone 2
  • Zone 21 & Zone 22

Specifications

Approvals & Certifications

  • TS

Enclosure, Body Material

  • Aluminum Alloy

Environmental Protection

  • IP67
  • IP68
  • NEMA 6
  • NEMA 6P

Frequency

  • 50/60 Hz

Lens

  • Tempered Glass

Lumens

  • > 80 (Warm White), > 80 (Cool White)

Operating Temperature

  • -20° to 40° C (-4° to 104° F)

Screw Material

  • Stainless Steel

Voltage

  • 110/220 Vac

Wattage

  • 23 W / 27 W (0.1 to 0.245 A)
