PD6600 series Loop Leader Loop-Powered Process Meter

Brand: Precision Digital Corporation
Request a Quote
Favorite

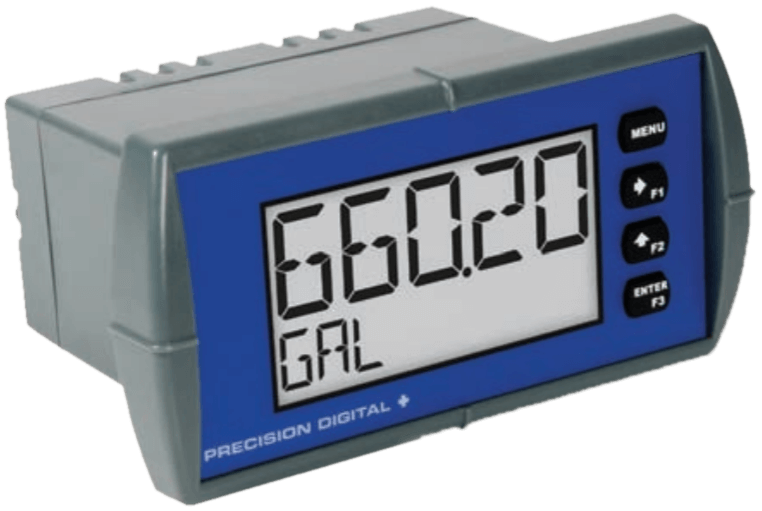

The Loop Leader PD6600 is a general-purpose, loop-powered, 1/8 DIN process meter. The four front panel buttons make setup and programming of the meter simple and intuitive. A dual-line display featuring five digits on the top line and eight digits on the bottom line, preprogrammed engineering units, and optional bargraph display (PD6604) or feet and inches display (PD6603) provide a clear and attractive presentation of the process. The units of measure can be changed as needed within a unit class (e.g. volume, temperature, pressure) without the need to re-scale the meter.
Features
  • Loop-Powered Backlight with Red Backlight for Alarm Conditions
  • Loop-Powered Process Meter
  • Loop-Powered Feet and Inches Level Meter (PD6603)
  • Displays up to 999 Feet 11 and 15/16 Inches (PD6603)
  • 1.5 Volt Drop (4.5 Volt Drop with Backlight)
  • IP65 Front
  • Operating Temperature Range: -40° to 75° C (-40° to 167° F)
  • Five Digit Top Line
  • Alphanumeric Tag Names
  • Dual Line Display
  • 1/8 DIN Shallow Depth Case
  • Optional Loop-Powered Solid State Relays
  • Optional 4-20 mA Analog Output
  • Open Collector Output Standard
  • Optional Bargraph Display (PD6604)
  • Timer Functions for Open Collectors and Relays
  • Relay Pump Alternation Based on Level and Time
  • Relay Runtime and Cycle Count
show more
The Loop Leader PD6600 is a general-purpose, loop-powered, 1/8 DIN process meter. The four front panel buttons make setup and programming of the meter simple and intuitive. A dual-line display featuring five digits on the top line and eight digits on the bottom line, preprogrammed engineering units, and optional bargraph display (PD6604) or feet and inches display (PD6603) provide a clear and attractive presentation of the process. The units of measure can be changed as needed within a unit class (e.g. volume, temperature, pressure) without the need to re-scale the meter.
Features
  • Loop-Powered Backlight with Red Backlight for Alarm Conditions
  • Loop-Powered Process Meter
  • Loop-Powered Feet and Inches Level Meter (PD6603)
  • Displays up to 999 Feet 11 and 15/16 Inches (PD6603)
  • 1.5 Volt Drop (4.5 Volt Drop with Backlight)
  • IP65 Front
  • Operating Temperature Range: -40° to 75° C (-40° to 167° F)
  • Five Digit Top Line
  • Alphanumeric Tag Names
  • Dual Line Display
  • 1/8 DIN Shallow Depth Case
  • Optional Loop-Powered Solid State Relays
  • Optional 4-20 mA Analog Output
  • Open Collector Output Standard
  • Optional Bargraph Display (PD6604)
  • Timer Functions for Open Collectors and Relays
  • Relay Pump Alternation Based on Level and Time
  • Relay Runtime and Cycle Count
Close

Specifications

Brand

Accuracy

  • 4-20 mA Transmitter Output: ± 0.05% of Full Scale ± 0.001 mA
  • Process Input (Square Root & Programmable Exponent): 10 to 100% of Full Scale
  • Process Input: ± 0.02% of Span ± 1 Count

Alarm

  • Open Collector Output & Solid State Relay Alarm Deadband: 0 to 100% of Full Scale, User Programmable
  • Open Collector Output & Solid State Relay on & Off Time Delay: 0 to 9,999 seconds
  • Open Collector Output & Solid State Relay: User Programmable for High/Low Alarm

Calibration

  • 4-20 mA Transmitter Output: Factory Calibrated 4-20 mA
  • Recalibration is Recommended at least Every 12 Months

Display

  • 14-Segment Alphanumeric Characters
  • Bargraph - PD6604
  • Bottom: 0.4" (10.2 mm)
  • On Bottom: Dual-Line LCD with 8-Digit
  • On Top: Dual-Line LCD with 5-Digit
  • Process Input (Display Range): -9,999 to 99,999 on Top Line - PD6602 & PD6604
  • Process Input (Display Range): -9,999,999 to 99,999,999 on Bottom Line - PD6603
  • Top: 0.7" (17.8 mm)

Electrical Connectors

  • Removable Screw Terminals Accept 12 to 22 AWG Wire

Electrical Contacts

  • DI Digital Input Contacts: Normally Open

Electrical Rating

  • Open Collector Output: Two NPN, Isolated Open Collector, 30 Vdc at 90 mA - Maximum
  • Solid State Relay (Resistive Load): 250 Vac/dc at 1 A

Enclosure Finish

  • Gray

Enclosure, Body Material

  • High Impact Plastic
  • Noryl Polyphenylene Ether Resin
  • Noryl Polystyrene Blend Resin
  • Stainless Steel
  • Steel

Environmental Protection

  • IP65
  • IP66
  • NEMA 4
  • NEMA 4X

Frequency

  • Open Collector Output (Pulse Output Frequency): 250 Hz, Maximum

Gasket Material

  • Silicone Rubber

Humidity

  • 0 to 90% Relative Humidity, Non-Condensing

Indication

  • LED Backlight

Input

  • DI Digital Input Contact: 2.1 Vdc
  • DI Digital Input Logic High: 2.4-30 Vdc, Maximum
  • DI Digital Input Logic Low: 0-0.9 Vdc
  • Process Input (Scaling & Display Range): 4-20 mA
  • Process Input (Voltage Drop with Backlight): 4.5 V, Maximum
  • Process Input Overload: over Current Protection to 1 A, Maximum

Isolation

  • 4-20 mA Transmitter Output: 500 V

K-Factor

  • Open Collector Output (Pulse Output Factor): 0.000001 to 999,999.9

Load

  • Solid State Relay (Inductive Load): 1/10 hp at 125/250 Vac/dc

Loop Resistance

  • 4-20 mA Transmitter Output: 10 to 750 ohms at 24 Vdc
  • 4-20 mA Transmitter Output: 100 to 1,100 ohms at 30 Vdc

Materials of Construction

  • Buttons: Black Silicone Rubber
  • Faceplate: Lexan Polycarbonate (PC) Film

Mounting

  • 1/8" DIN Panel

Operating Temperature

  • Environmental: -40° to 75° C (-40° to 167° F)

Output

  • 4-20 mA Transmitter Output (Scaling Range): 1-23 mA
  • Analog Output: 4-20 mA

Power Supply

  • 4-20 mA Transmitter Output (External Loop Power Supply): 7-30 Vdc, Maximum

Programming

  • Front Panel

Pulse Range

  • Open Collector Output (Pulse Width): 2 milliseconds, 50% Duty Cycle

Range

  • Process Input (Scaling Range): -999,999.9 to 999,999.9

Resistance

  • Process Input (Equivalent Resistance with Backlight Off): 75 ohms at 20 mA
  • Process Input (Equivalent Resistance with Backlight On): 225 ohms at 20 mA

Storage Temperature

  • -40° to 85° C (-40° to 185° F)

Thermal Drift

  • 4-20 mA Transmitter Output: 0.5 µA / °C, Maximum
  • Process Input: 25 ppm / °C from -40° to 75° C (-40° to 167° F) Ambient

Torque

  • Tightening Torque (Screw Terminal Connectors): 0.5 Nm (4.5 In/Lbs)
  • Tightening Torque, Maximum

Update Time

  • Display Update Rate at Ambient > -10° C (14° F): 1 Update / 1 second
  • Display Update Rate at Ambient > -20° C (-4° F): 1 Update / 2 seconds
  • Display Update Rate at Ambient -40° C (-40° F): 1 Update / 10 seconds
