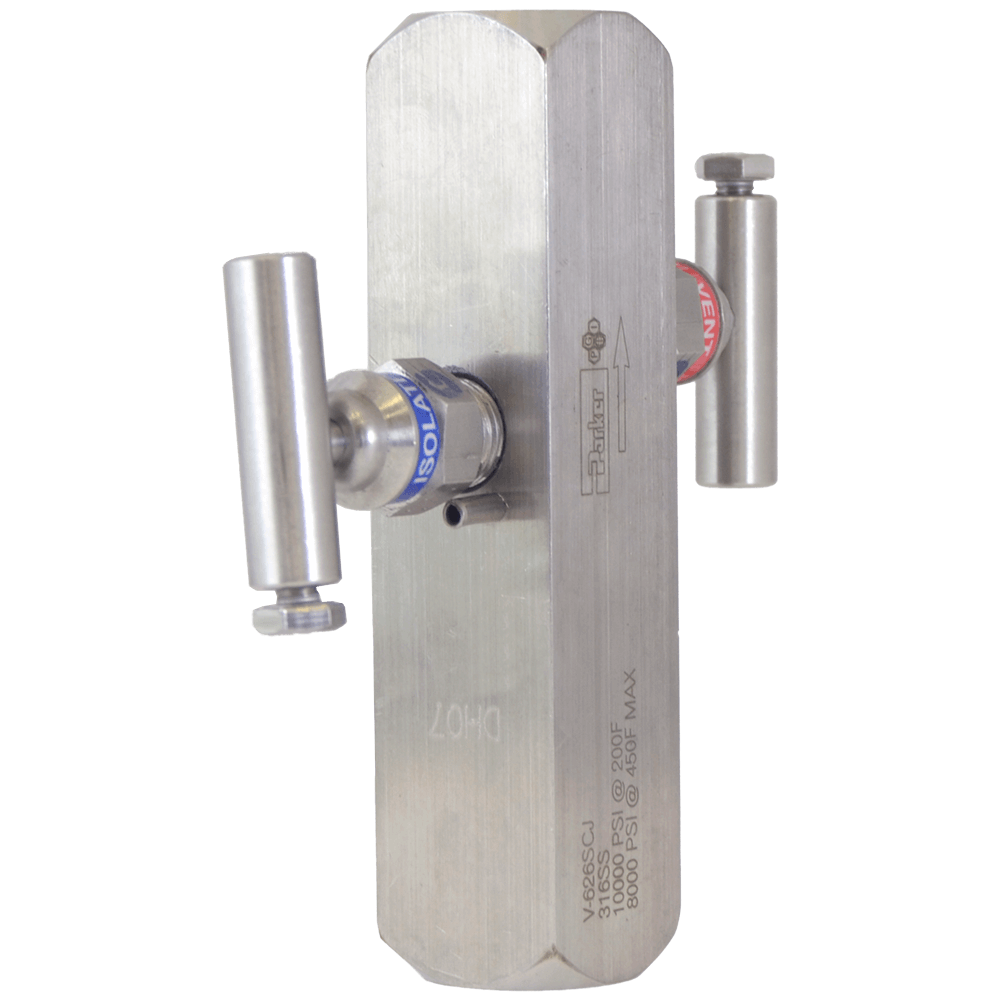

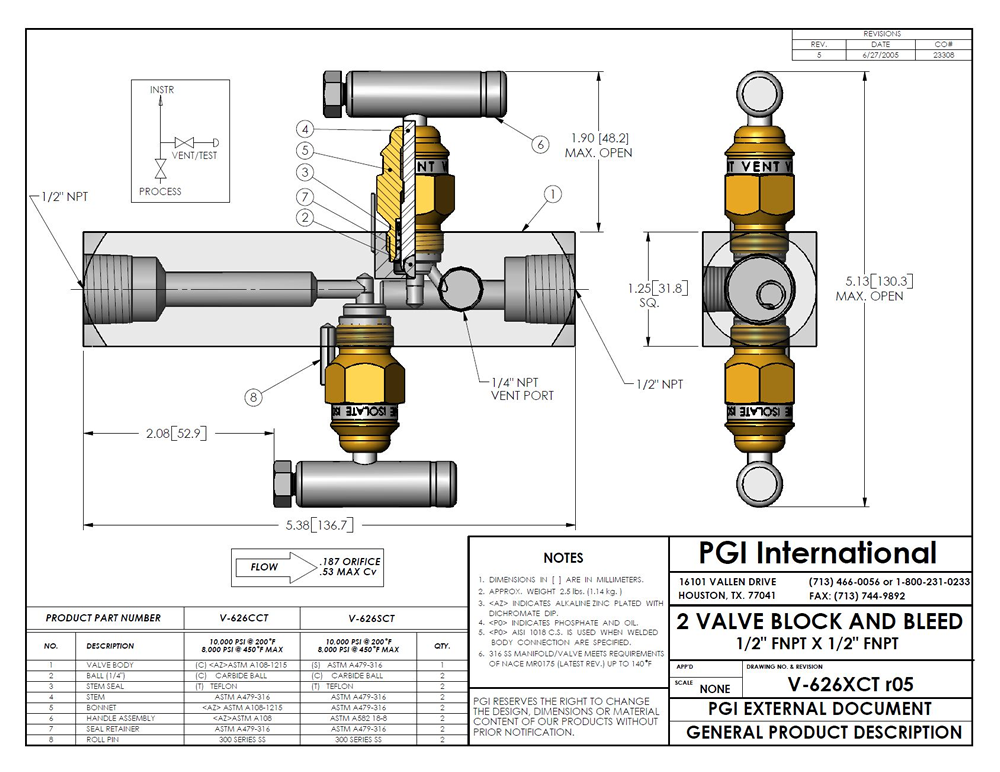

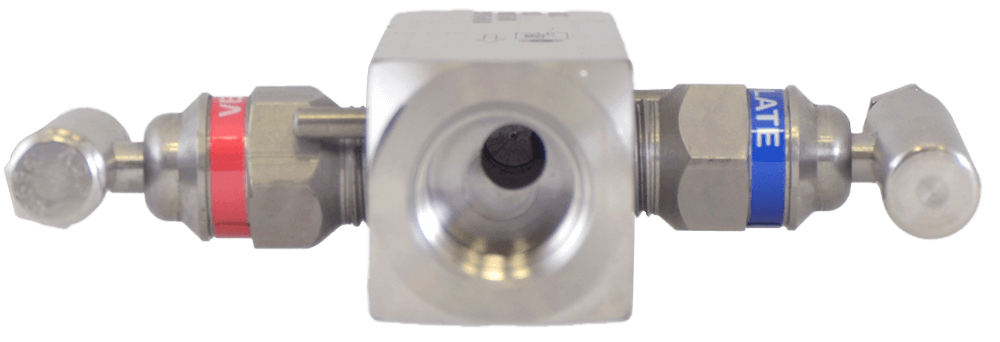

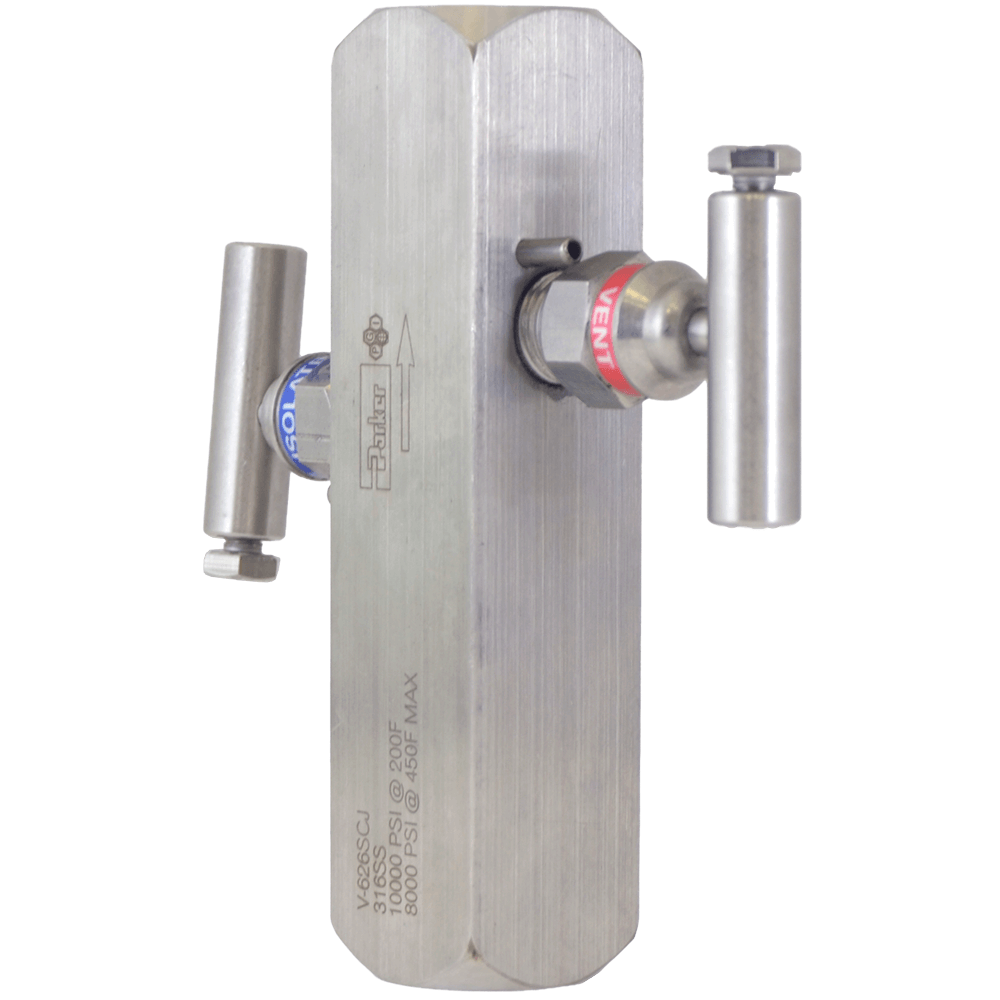

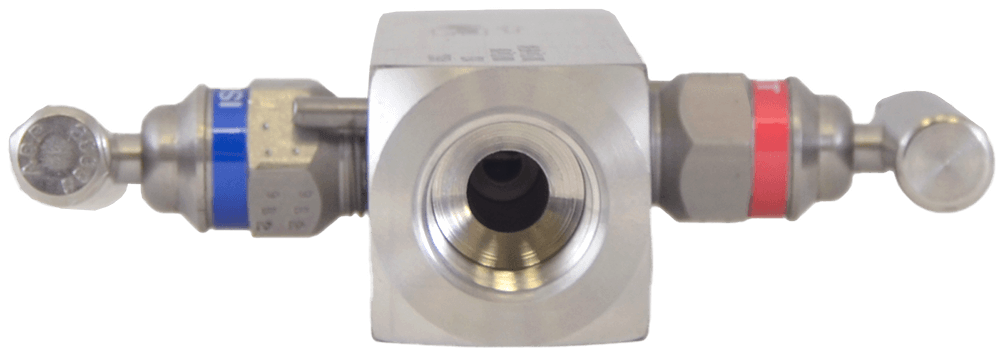

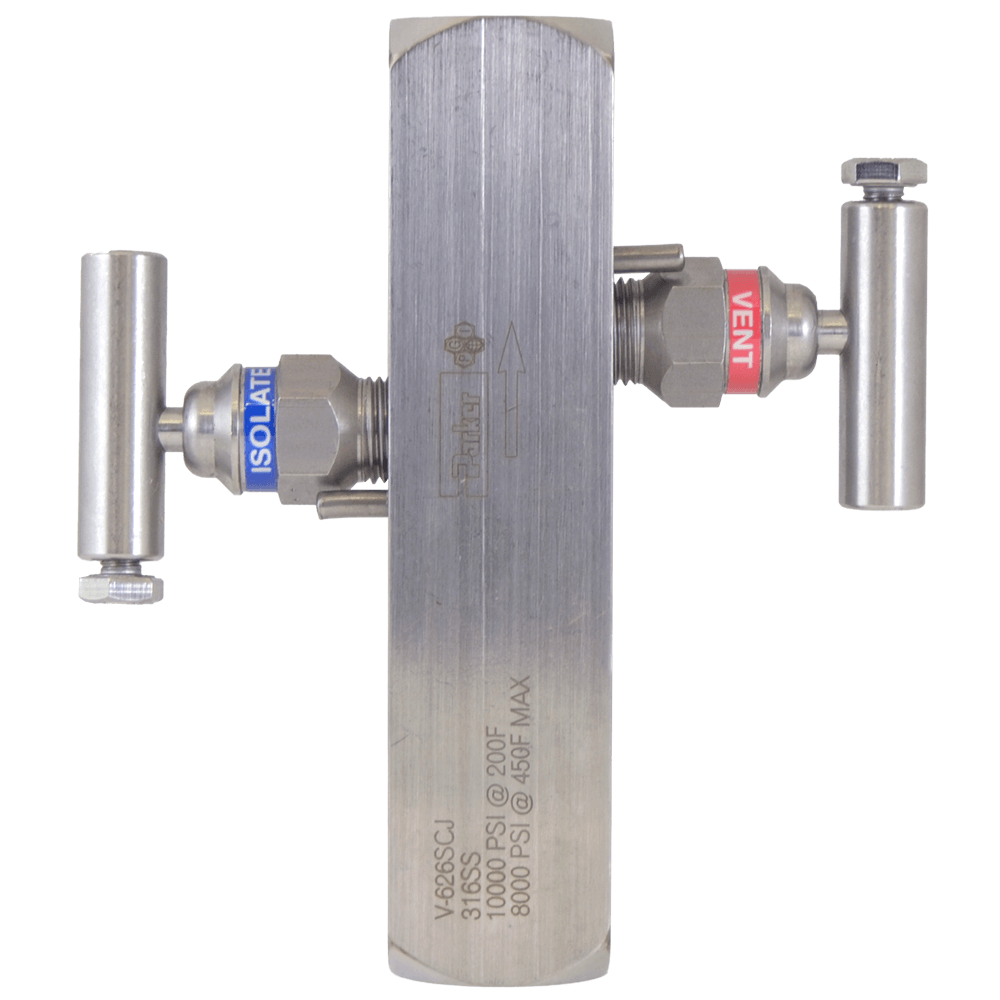

V-626 Block & Bleed Valve

Brand: PGI International
  • Design: Hard Seat Block and Bleed Valve
  • Inlet (Process) Connection: 1/2" NPT Female
  • Outlet (Instrument) Connection: 1/2" NPT Female
  • Standard Features:
    • Carbide Ball Seat
    • Teflon Pressure-Core Stem Seal for Low Temperatures
    • Max Pressure 10000 psi @ +200°F (+93°C) / 1000 psi @ +450°F (+232°C)
    • Stainless Steel Body and Bonnet
      • 316 Stainless Steel meets the requirements of NACE MR0175/ISO 15156-36
  • Benefits:
    • Non-rotating ball eliminates seat galling and ball creasing
    • Leak free, bubble tight seating
    • 100% Pressure Tested
show more
Images are representations only.
  • Design: Hard Seat Block and Bleed Valve
  • Inlet (Process) Connection: 1/2" NPT Female
  • Outlet (Instrument) Connection: 1/2" NPT Female
  • Standard Features:
    • Carbide Ball Seat
    • Teflon Pressure-Core Stem Seal for Low Temperatures
    • Max Pressure 10000 psi @ +200°F (+93°C) / 1000 psi @ +450°F (+232°C)
    • Stainless Steel Body and Bonnet
      • 316 Stainless Steel meets the requirements of NACE MR0175/ISO 15156-36
  • Benefits:
    • Non-rotating ball eliminates seat galling and ball creasing
    • Leak free, bubble tight seating
    • 100% Pressure Tested
8 models matching criteria
V-626-SCG
PGI Hard Seat Block & Bleed Valved, 1/2" FNPT x 1/2" FNPT, SST, Grafoil Packing, NACE
2 - 4 weeks
$280.00USD
$9.99 Shipping
available on backorder
V-626-SCJ-P9
PGI Block & Bleed, 1/2" FNPT x 1/2" FNPT, 1/4" Hex Head Pipe Plug, 316 SST, Carbide Ball, PTFE
2 - 4 weeks
$307.00USD
$9.99 Shipping
available on backorder
V-626-S6P
PGI Block & Bleed, 1/2" FNPT x 1/2" FNPT, 0.187 Orfice, 1/4" NPT Hex Plugs, SST
2 - 4 weeks
$333.00USD
$9.99 Shipping
available on backorder
V-626-S6P-P9
PGI Block & Bleed, 1/2" FNPT x 1/2" FNPT, 0.187 Orfice, 1/4" NPT Hex Plugs, SST
2 - 4 weeks
$333.00USD
$9.99 Shipping
available on backorder
V-626-SCJ
PGI Block & Bleed, 1/2" FNPT x 1/2" FNPT, SST, NACE
4 - 5 weeks
$347.00USD
$9.99 Shipping
available on backorder
V-626-S6T
PGI Block & Bleed, 1/2" FNPT x 1/2" FNPT, 0.187 Orfice, 1/4" NPT Hex Plugs, SST, Teflon
2 - 4 weeks
$354.00USD
$9.99 Shipping
available on backorder
V-626-S6J
PGI Block & Bleed, 1/2" FNPT x 1/2" FNPT, 0.187 Orfice, 1/4" NPT Hex Plugs, SST
2 - 4 weeks
$420.00USD
$9.99 Shipping
available on backorder
V-626-HHT
PGI Block & Bleed, 1/2" FNPT x 1/2" FNPT, 0.187 Orfice, 1/4" NPT Hex Plugs, Hastelloy C, Teflon,
2 - 4 weeks
$4,736.00USD
$9.99 Shipping
available on backorder

V-626

Inlet (Process) Connection Size

Outlet (Instrument) Connection Size

Body and Bonnet Material

Seat Material

Stem Packing Material

Options

Specifications

Enclosure, Body Material

  • ASTM A479-316 Stainless Steel

Handle Assembly Material

  • ASTM A581 18-8 300 Stainless Steel

Maximum Cv Ratings

  • Cv 0.53 on 0.187" Orifice

NACE & NIST

  • NACE MR-0175, ISO 15156-36

NPT Inlet

  • 1/2" NPT Female

NPT Outlet

  • 1/2" NPT Female

Orifice Size

  • 0.187"

Packing Material

  • Teflon
  • Teflon Pressure-Core® Stem Seal for Low Temperatures -45.5° C (-50° F)

Pressure Rating

  • psi: 10,000 at 93° C (200° F)
  • psi: 8,000 at 232° C (450° F)

Process Temperature

  • -45° to 232° C (-50° to 450° F)

Seal Retainer

  • ASTM A479-316 Stainless Steel

Seat/Seal Material

  • Carbide

Stem Material

  • ASTM A479-316 Stainless Steel
