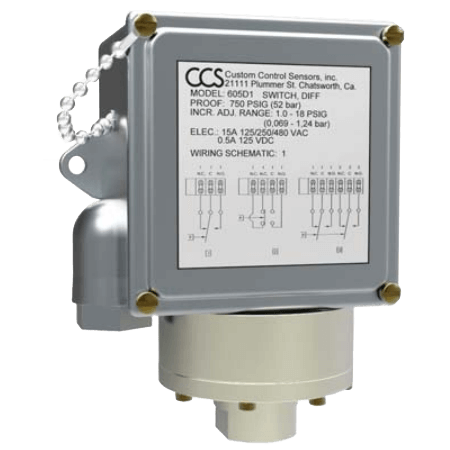

605D Series Pressure Switch

Brand: Custom Control Sensors
  • Adjustable Set Point Range:
    • Increasing: 1 to 75 psid, 6.9 to 517.1 kPa, 0.069 to 5.17 bar
    • Decreasing: 0.4 to 71 psid, 2.7 to 489.5 kPa, 0.02 to 4.9 bar
  • Deadband: Approximately 0.6 to 4 psi, 4.13 to 27.5 kPa, 0.042 to 0.28 bar
  • System Pressure (Maximum): 400 psig, 2757.90 kPa, 28 bar
  • Proof Pressure:
    • Both Ports: 750 psig, 5171.07 kPa, 52 bar
    • High: 750 psig, 5171.07 kPa, 52 bar
    • Low: 400 psig, 2757.90 kPa, 28 bar
  • Wetted Materials:
    • Pressure Port: 1/4"-18 Female NPT Aluminum
    • Diaphragm: Polyimide
    • O-Ring: Viton
  • Relay: SPDT or DPDT
  • CRN, CE Mark, General Purpose
show more
Images are representations only.
  • Adjustable Set Point Range:
    • Increasing: 1 to 75 psid, 6.9 to 517.1 kPa, 0.069 to 5.17 bar
    • Decreasing: 0.4 to 71 psid, 2.7 to 489.5 kPa, 0.02 to 4.9 bar
  • Deadband: Approximately 0.6 to 4 psi, 4.13 to 27.5 kPa, 0.042 to 0.28 bar
  • System Pressure (Maximum): 400 psig, 2757.90 kPa, 28 bar
  • Proof Pressure:
    • Both Ports: 750 psig, 5171.07 kPa, 52 bar
    • High: 750 psig, 5171.07 kPa, 52 bar
    • Low: 400 psig, 2757.90 kPa, 28 bar
  • Wetted Materials:
    • Pressure Port: 1/4"-18 Female NPT Aluminum
    • Diaphragm: Polyimide
    • O-Ring: Viton
  • Relay: SPDT or DPDT
  • CRN, CE Mark, General Purpose
605D1
Differential Pressure Switch
84 - 90 days
$746.00USD
$9.99 Shipping
available on backorder
605DM2
CCS DUAL-SNAP Pressure Switch, Non-Hazardous Area, 1/4" NPT Aluminum Port, Polyimide Diaphragm, Viton O-Ring, DPDT, Approvals: CE, CRN, CCC, EAC
5 - 7 weeks
$1,057.00USD
$9.99 Shipping
available on backorder

605D

Base Model

Process Connection

O-Ring

Output

Electrical Contacts

Paint

Specifications

Adjustment Type

  • Field Adjustable

Approvals & Certifications

  • CE
  • CRN
  • CRN - Alberta
  • CRN - British Columbia
  • CRN - Saskatchewan
  • EMC
  • LVD
  • PED
  • RoHS

Deadband, Approximate

  • bar: 0.042 to 0.28
  • kPa: 4.13 to 27.58
  • psig: 0.6 to 4

Diaphragm Material

  • Polyimide

Electrical Connectors

  • Terminal Strip - Internal

Electrical Contacts

  • Gold
  • Silver

Electrical Rating

  • 1 A at 125 Vac, 50/60 Hz
  • 15 A at 125/250/480 Vac Resistive, 0.4 A at 125 DC, 0.2 A at 250 DC
  • 5 A at 125/250 Vac Resistive, 5 A at 28 Vdc, 0.5 A at 125 Vdc

Enclosure, Body Material

  • Aluminum

Environmental Protection

  • IP65
  • IP66
  • NEMA 13
  • NEMA 4, 13 / IP65, 66
  • Non-Hazardous Area

NPT Connection

  • 1/4" NPT Female

Operating Temperature

  • -40° to 86° C (-40° to 187° F)

O-Ring Material

  • Ethylene Propylene (EPR)
  • Viton

Process Connection Material

  • Aluminum

Proof Pressure - Both Ports

  • bar: 52
  • kPa: 5,171
  • psig: 750

Proof Pressure - High Over Low

  • bar: 52
  • kPa: 5,171
  • psig: 750

Proof Pressure - Low Over High

  • bar: 28
  • kPa: 2,758
  • psig: 400

Service

  • Sweet (Oil & Gas)

Set Point - Decreasing

  • bar: 0.02 to 4.9
  • kPa: 2 to 489.5
  • psid: 0.4 to 71

Set Point - Increasing

  • bar: 0.069 to 5.17
  • kPa: 6.89 to 517.11
  • psid: 1 to 75

Standard Features

  • Internal Case Ground
  • Weatherproof

Switch Type

  • DPDT
  • SPDT

System Pressure

  • bar: 28
  • kPa: 2,758
  • psig: 400
