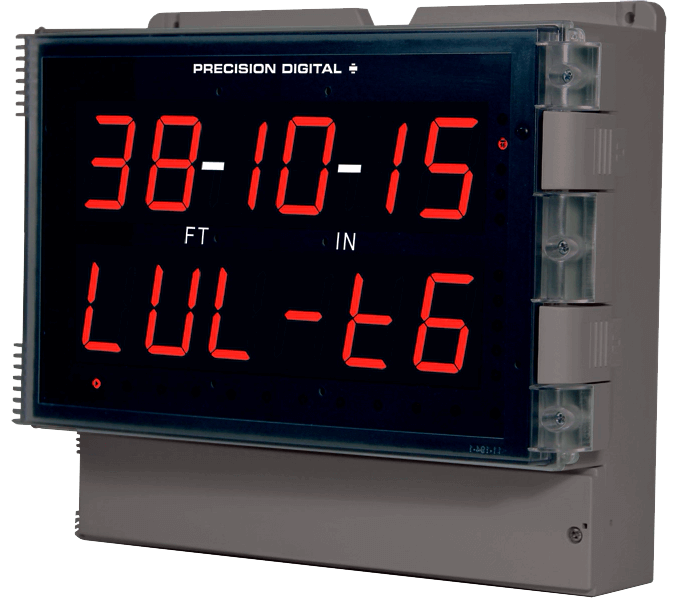

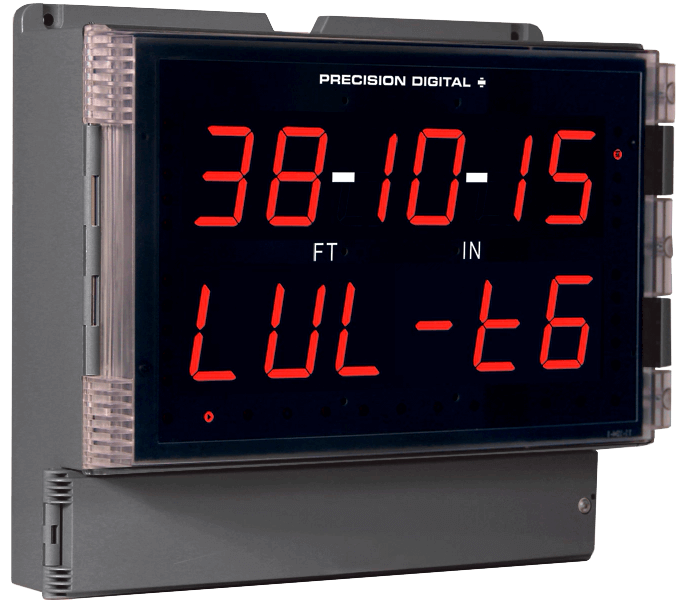

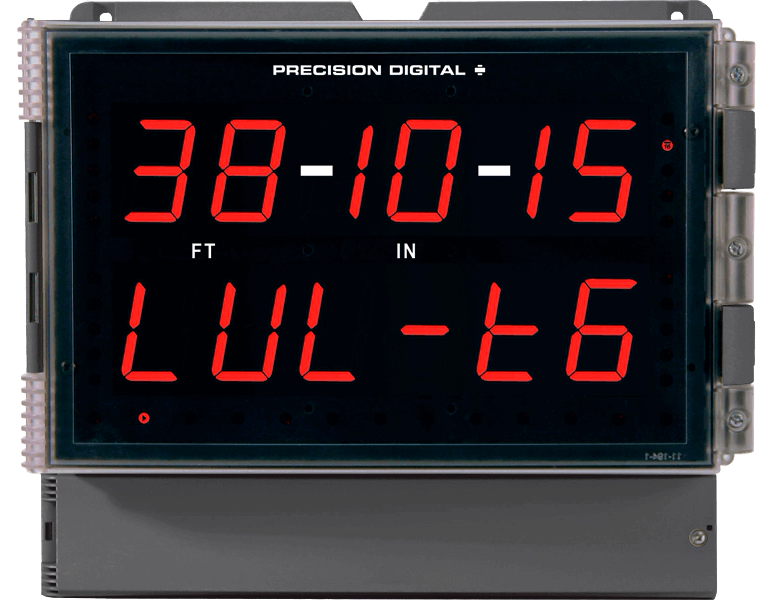

PD2-6081 Helios Feet & inches Modbus Scanner with Dual Analog Inputs

Brand: Precision Digital Corporation
Go with the Helios PD2-6081 when you have a level application involving Modbus signals and you prefer to display in feet and inches instead of the more common decimal format.

The PD2-6081 can display up to 16 modbus registers so a typical application might be 16 tank levels, 8 tank levels and 8 interface levels, or 5 tank levels, 5 interface levels and 5 temperatures.

The PD2-6081 makes a great outdoor tank side indicator because its display is bright enough to read in direct sunlight and it will operate from -40 to 150°F.
Features
  • Large 1.80" Digits
  • Dual-line 6-digit Display
  • Readable from Up to 100' - 30 Meters Away
  • Superluminous Sunlight Readable Display
  • NEMA 4X, IP65 Rated Field Mountable Enclosure
  • Operating Temperature Range of -40° to 65° C / -40° to 150° F
  • Modbus RTU Master, Slave, or Snooper Mode
  • Poll and Display Up to 16 Process Variables
  • Addition, Difference, Average, Multiplication, Division, Minimum, Maximum, Weighted Average, Ratio, Concentration, & More
  • Universal 85 to 265 Vac, or 12 to 24 Vdc Input Power Models
  • 2 or 4 Relays + Isolated 4-20 mA Output Options
  • Onboard USB & RS-485 Serial Communication Options
  • Program the Meter from a PC with Onboard USB and ScanView
show more
Go with the Helios PD2-6081 when you have a level application involving Modbus signals and you prefer to display in feet and inches instead of the more common decimal format.

The PD2-6081 can display up to 16 modbus registers so a typical application might be 16 tank levels, 8 tank levels and 8 interface levels, or 5 tank levels, 5 interface levels and 5 temperatures.

The PD2-6081 makes a great outdoor tank side indicator because its display is bright enough to read in direct sunlight and it will operate from -40 to 150°F.
Features
  • Large 1.80" Digits
  • Dual-line 6-digit Display
  • Readable from Up to 100' - 30 Meters Away
  • Superluminous Sunlight Readable Display
  • NEMA 4X, IP65 Rated Field Mountable Enclosure
  • Operating Temperature Range of -40° to 65° C / -40° to 150° F
  • Modbus RTU Master, Slave, or Snooper Mode
  • Poll and Display Up to 16 Process Variables
  • Addition, Difference, Average, Multiplication, Division, Minimum, Maximum, Weighted Average, Ratio, Concentration, & More
  • Universal 85 to 265 Vac, or 12 to 24 Vdc Input Power Models
  • 2 or 4 Relays + Isolated 4-20 mA Output Options
  • Onboard USB & RS-485 Serial Communication Options
  • Program the Meter from a PC with Onboard USB and ScanView

Specifications

Input / Output

  • Modbus RTU over RS-485, Two analog Inputs (4-20 mA, ± 10 V)

Display

  • Two lines with 1.8” (46 mm) High Digits, Red LEDs, 6 Digits per line (-99999 to 999999), with Lead Zero Blanking

Display Intensity

  • Eight user selectable intensity levels

Display Update Rate

  • 5/second (200 ms)

Overrange

  • Display flashes 999999

Underrange

  • Display flashes -99999

Programming Methods

  • Four Programming Buttons, digital inputs, PC and ScanView Software, or Modbus registers

Maximum / Minimum Display

  • Max./Min. Readings reached by the process are stored until reset by the user or until power to the meter is turned off.

Password Restrict Modifications

  • Pass 1: Allows use of function keys and digital inputs
  • Pass 2: Allows use of function keys, digital inputs and editing set/reset Points
  • Pass 3: Restricts all Programming, function keys, and digital inputs

Power Options

  • 85-265 Vac 50/60 Hz, 90-265 Vdc, 20 W max
  • 12-24 Vdc ± 10 %, 15 W max
  • Powered over USB for configuration only

Isolated Transmitter Power Supply

  • Terminals P+ & P-: 24 Vdc ± 10 %. 12-24 Vdc Powered models selectable for 24, 10, or 5 Vdc Supply (Internal P+/P- switch). 85-265 Vac models rated @ 200 mA max., 12-24 Vdc Powered models rated @ 100 mA max., @ 50 mA max. for 5 or 10 Vdc Supply.

Non-Volatile Memory

  • All programmed settings are stored in non-volatile memory for a minimum of ten years if power is lost.

Fuse

  • Required External Fuse: UL Recognized, 5 A max., Slow Blow, up to 6 metres may share one 5 A fuse

Isolation

  • 4 kV Input/Output-to-Power Line, 500 V Input-to-Output or Output-to-P+ Supply

Overvoltage Category

  • Installation Overvoltage Category II: Local level with smaller transient overvoltages than Installation Overvoltage Category III.

Environmental

  • Storage Temperature Range: -40 to 185° F (-40 to 85° C)
  • Relative Humidity: 0 to 90 % Non-Condensing
  • Operating Temperature Range: -40 to 150° F (-40 to 65° C)

Connections

  • Removable and integrated screw terminal blocks accept 12 to 22 AWG wire.

Enclosure

  • UL Type 4X, IP65 rated. Polycarbonate & glass blended plastic Case, color: gray. Includes four PG11 through-hole conduit openings, with two factory installed PG11, IP68, Black nylon threaded hole plugs with backing nuts

Wall Mounting

  • Four (4) mounting holes provided for mounting meter to wall

Pipe Mounting

  • Optional Pipe Mounting Kit (PDA6260) Allows for Pipe Mounting. Sold Separately.

Tightening Torque:

  • Removable Screw Terminals: 5 lb-in (0.56 Nm)
  • Digital I/O and RS-485 Terminals: 2.2 lb-in (0.25 Nm)

Overall Dimensions

  • 10.63” x 12.59” x 4.77” (270 mm x 319.7 mm x 121.2 mm) (H x W x D)

Weight

  • 6.10 lbs (2.76 kg)

UL File Number

  • UL & C-UL Listed. E160849, 508 Industrial Control Equipment

Warranty

  • 3 Years Parts & Labor

USB Connection

  • Compatibility: USB 2.0 Standard, Compliant Connector Type: Micro-B receptacle
  • Cable: USB A Male to Micro-B Cable
  • Driver: Windows® 98/SE, ME, 2000, Server 2003/2008, XP 32/64-Bit, Vista 32/64-Bit, Windows 7 32/64-Bit, Windows 10 32/64-Bit
  • Power: USB Port
