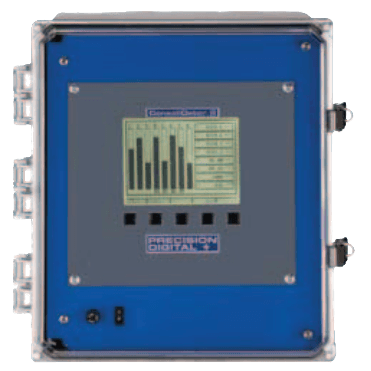

PDA2901 NEMA 4X Enclosures for ConsoliDator

Brand: Precision Digital Corporation
Request Information
Favorite
PDA2900 enclosures are NEMA 4X enclosures specifically designed for our ConsoliDator line of multi-channel controllers.

These enclosures will fit one PD981 or PD941 (panel mounted) and feature hinged front and rear panels, stainless steel quick-release latches, fuse holder, and power switch.

Optional sub-panels and mounting kits are available.

Enclosures and meters are ordered and packaged separately.
Features
  • Fits One PD981 or PD941 Controller
  • Stainless Steel Quick-Release Latches
  • Hinged Clear Cover
  • Hinged Front Mounting Panel
  • Fuse Holder & Power Switch
  • Optional Sub-Panels
  • Optional Mounting Kit
show more
PDA2900 enclosures are NEMA 4X enclosures specifically designed for our ConsoliDator line of multi-channel controllers.

These enclosures will fit one PD981 or PD941 (panel mounted) and feature hinged front and rear panels, stainless steel quick-release latches, fuse holder, and power switch.

Optional sub-panels and mounting kits are available.

Enclosures and meters are ordered and packaged separately.
Features
  • Fits One PD981 or PD941 Controller
  • Stainless Steel Quick-Release Latches
  • Hinged Clear Cover
  • Hinged Front Mounting Panel
  • Fuse Holder & Power Switch
  • Optional Sub-Panels
  • Optional Mounting Kit
Close

Displaying prices & availability for United States in USD. Change location or currency

PDA2901
PRECISION DIGITAL Enclosure for ConsoliDator Controller, NEMA 4X View More
  • NEMA 4X Enclosure for ConsoliDator® Controller models PD941 or PD981
2 - 4 weeks
$404.54 USD
$15.55 Shipping
Close
Close

Specifications

Brand

Approvals & Certifications

  • cUL
  • UL

Enclosure, Body Material

  • Enclosure and Cover: Polycarbonate; Front Panel: Painted aluminum; Cover Latches: Stainless steel

Environmental Protection

  • IP10
  • IP11
  • IP14
  • IP52
  • IP54
  • IP66
  • NEMA 1
  • NEMA 12
  • NEMA 12K
  • NEMA 2
  • NEMA 3
  • NEMA 3R
  • NEMA 4
  • NEMA 4X

Overall Dimensions

  • PDA2901: 15.00"; x 15.75"; x 7.30" (W x H x D) (381 mm x 400 mm x 185 mm)

Inside Dimensions

  • PDA2901: 12.00" x 14.00"; x 6.00" (W x H x D) (305 mm x 355 mm x 152 mm)

Weight

  • PDA2901: 9.00 lbs (4.1 kg)

Optional Sub-Panel

  • Anodized aluminum

Color

  • Enclosure: Light gray; Cover: Transparent; Front Panel: Blue

Material

  • Enclosure and Cover: Polycarbonate
  • Front Panel: Painted aluminum
  • Cover Latches: Stainless steel
