Model 311 Z, I, GI, AI Pressure Transmitter

Brand: GP:50 New York Ltd.
  • Output Signal: 4-20 mA
  • Excitation Voltage: 9 to 36 Vdc / 10 to 28 Vdc
  • Pressure Range: 0 to 75,000 psi, 0 to 5,171 bar, 0 to 517,107 kPa
  • Burst Pressure: 5 times FSO or 22,500 psi whichever is less
  • Proof Pressure: 2 times FSO or 22,500 psi whichever is less
  • Electrical Connections: 36" long PVC jacketed, 18 AWG, 4 conductor cable
  • Process Connection: 1/4" Female NPT
  • Temperature Range:
    • Operating: -40° to 80° C (-40° to 186° F)
    • Compensated: -18° to 82° C (0° to 180° F)
    • Storage: -53° to 121° C (-65° to 250° F)
    • Effect on Zero/Span: ±2.0% Full ScaleO at 100 °F
  • Static Accuracy: ±0.5%
  • Materials of Construction:
    • Housing: 316 Stainless Steel
    • Wetted Parts: 316 or 17-4 Stainless Steel
show more

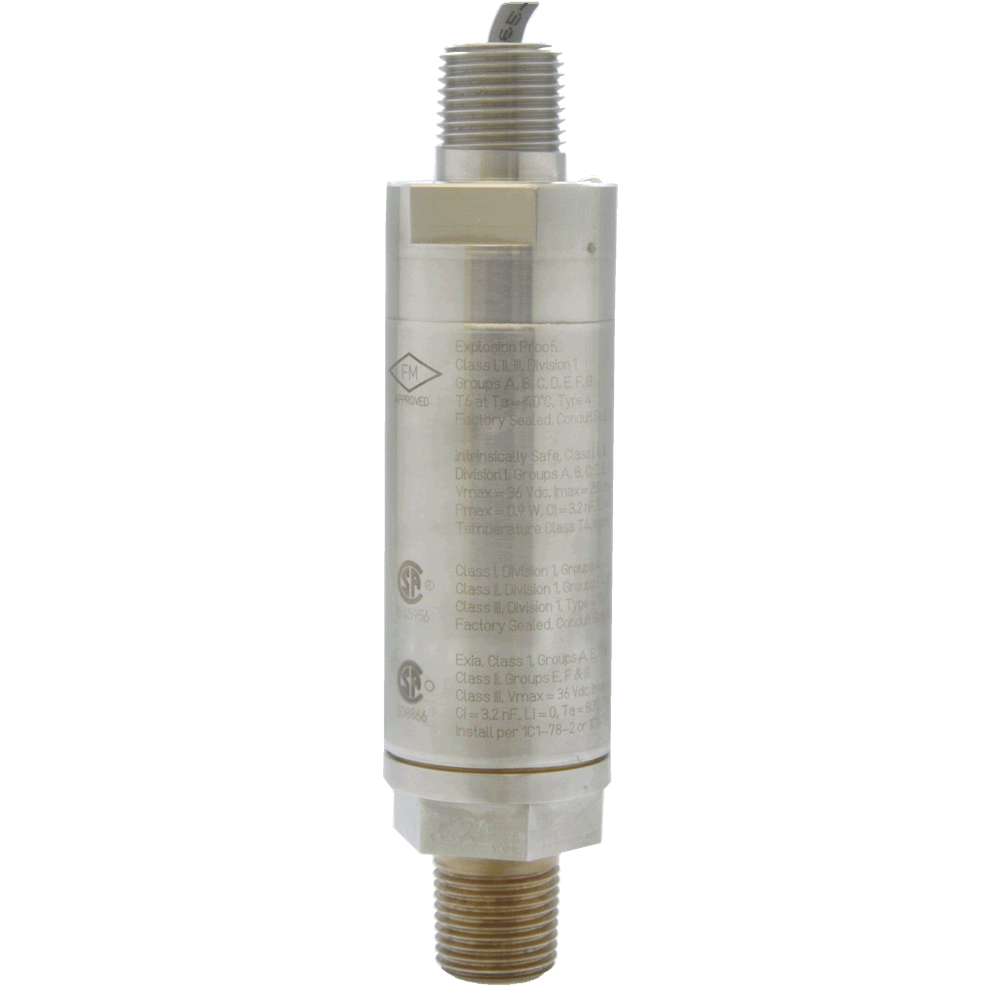

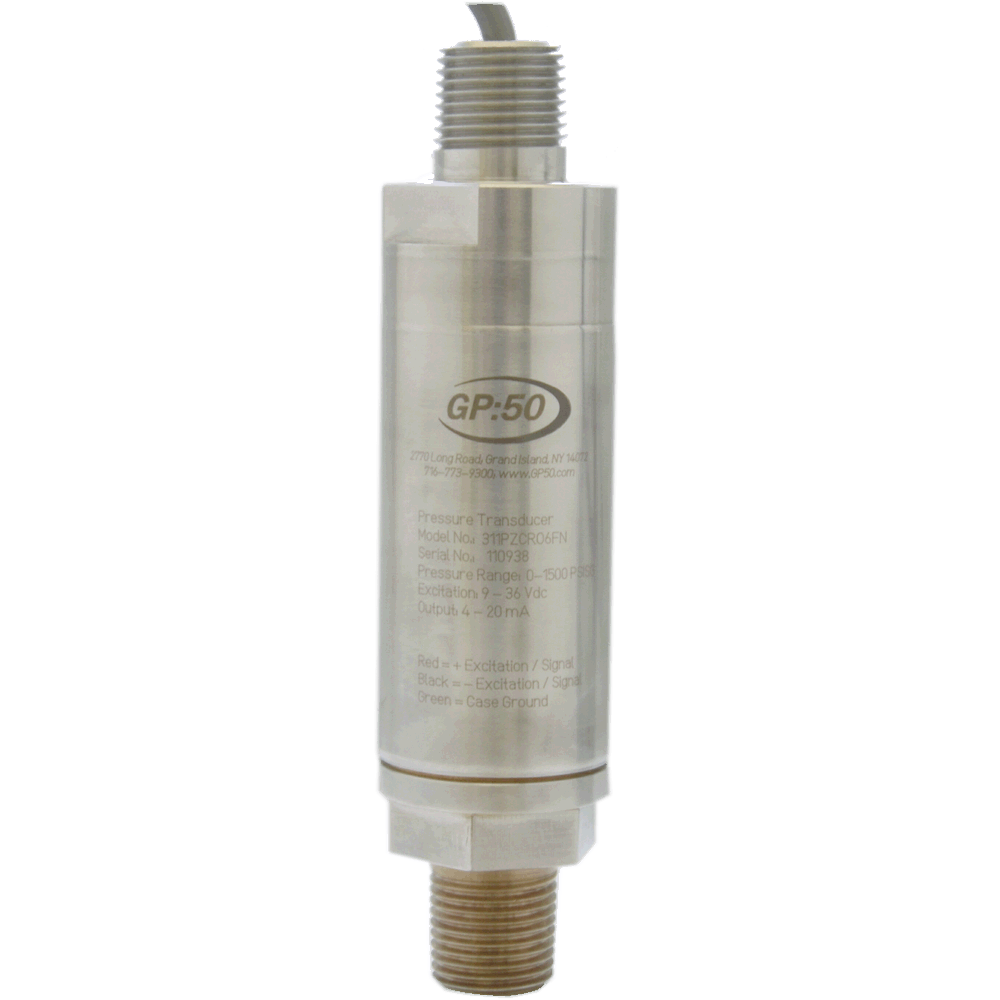

Images are representations only.
  • Output Signal: 4-20 mA
  • Excitation Voltage: 9 to 36 Vdc / 10 to 28 Vdc
  • Pressure Range: 0 to 75,000 psi, 0 to 5,171 bar, 0 to 517,107 kPa
  • Burst Pressure: 5 times FSO or 22,500 psi whichever is less
  • Proof Pressure: 2 times FSO or 22,500 psi whichever is less
  • Electrical Connections: 36" long PVC jacketed, 18 AWG, 4 conductor cable
  • Process Connection: 1/4" Female NPT
  • Temperature Range:
    • Operating: -40° to 80° C (-40° to 186° F)
    • Compensated: -18° to 82° C (0° to 180° F)
    • Storage: -53° to 121° C (-65° to 250° F)
    • Effect on Zero/Span: ±2.0% Full ScaleO at 100 °F
  • Static Accuracy: ±0.5%
  • Materials of Construction:
    • Housing: 316 Stainless Steel
    • Wetted Parts: 316 or 17-4 Stainless Steel
109 models matching criteria
311I-D-RH-6-CA-A53
GP:50 Model 311 Pressure Transducer, Intrinsically Safe, 0.1%, 500 psi, Sealed Gauge, Bendix PT1H, A53
10 In Stock
$134.96USD
$8.27 Shipping
311Z-C-RM-7-GJ/DR4
GP:50 Model 311 Pressure Transducer, Intrinsically Safe, 0.2%, 1000 psi, Sealed, Zero & Span, 4-Pin Mini Fast
4 In Stock
$110.95USD
$8.27 Shipping
311GI-B-RJ-7-CA/FN/MR
GP:50 Model 311 Pressure Transducer, Intrinsically Safe, 0.5%, 600 psi, Absolute, 6-Pin Bendix, 1/2" MNPT
3 In Stock
$105.15USD
$8.27 Shipping
311Z-B-RO-7-CJ/GJ/HL
GP:50 Model 311 Pressure Transducer, Intrinsically Safe, 0.5%, 1500 psi, Sealed, DIN 43650, Zero & Span, RFI
2 In Stock
$97.70USD
$8.27 Shipping
311I-B-RM-7-CA/MR
GP:50 Model 311 Pressure Transducer, Intrinsically Safe, 1000 psi, Sealed Gauge, Bendix PT1H, Alternate
2 In Stock
$438.08 USD $173.04USD
$8.27 Shipping
311Z-B-PJ-2-GM/CZPV60
GP:50 Model 311 Pressure Transducer, Intrinsically Safe, 0.5%, 5 psi, Gauge, Submersible, Special, 60 psi
2 In Stock
311I-B-RZ-7-CA/FJ/MR
GP:50 Model 311 Pressure Transducer, Intrinsically Safe, 10,000 psi, Sealed, Bendix PT1H, 1/4" MNPT, Alternate
1 In Stock
$100.18USD
$8.27 Shipping
311I-D-RM-6-CA-A53
GP:50 Model 311 Pressure Transducer, Intrinsically Safe, 0.1%, 1000 psi, Sealed Gauge, Bendix PT1H, A53
1 In Stock
$140.75USD
$8.27 Shipping
311Z-B-SZ-2-GM/CZPV50
GP:50 Model 311 Pressure Transducer, Intrinsically Safe, 0.5%, Other psi, Gauge, Submersible, 50-foot
1 In Stock
$171.39USD
$8.27 Shipping
311Z-B-RB-2-CJ/GJ/HL
GP:50 Model 311 Pressure Transducer, Intrinsically Safe, 0.5%, 150 psi, Gauge, DIN 43650, Zero & Span, RFI
Out of Stock
$71.20USD
$8.27 Shipping
311Z-C-RZ-7-GZ/FN/HL
GP:50 Model 311 Pressure Transducer, Intrinsically Safe, 0.2%, 10,000 psi, Sealed, Special, 1/2" MNPT, RFI
Out of Stock
$77.83USD
$8.27 Shipping
311Z-B-PZ-2-CJ/JS/GJ/HL
GP:50 Model 311 Pressure Transducer, Intrinsically Safe, 0.5%, 100 psi, Gauge, DIN 43650, Internal, Zero & Span, RFI
4 - 6 weeks
$120.05USD
$8.27 Shipping
311I-B-RT-7-CJ
GP:50 Model 311 Pressure Transducer, Intrinsically Safe, 3000 psi, Sealed Gauge, DIN 43650 w/Mate
4 - 6 weeks
$181.32USD
$8.27 Shipping
311Z-B-RD-2-CJ
GP:50 Model 311 Pressure Transducer, Intrinsically Safe, 0.5%, 200 psi, Gauge, DIN 43650 w/Mate
4 - 6 weeks
$181.32USD
$8.27 Shipping
311Z-B-RV-7/CJ
GP:50 Model 311 Pressure Transducer, Intrinsically Safe, 0.5%, 5000 psi, Sealed Gauge, DIN 43650 w/Mate
4 - 6 weeks
$181.32USD
$8.27 Shipping
311Z-C-RF-7/CJ
GP:50 Model 311 Pressure Transducer, Intrinsically Safe, 0.2%, 300 psi, Sealed Gauge, DIN 43650w/Mate
4 - 6 weeks
$181.32USD
$8.27 Shipping
311I-B-RV-7-FN
GP:50 Model 311 Pressure Transducer, Intrinsically Safe, 5000 psi, Sealed Gauge, 1/2" MNPT
4 - 6 weeks
$183.81USD
$8.27 Shipping
311I-B-RB-2-CA/MR
GP:50 Model 311 Pressure Transducer, Intrinsically Safe, 0.5%, 150 psi, Sealed, Bendix PT1H, Alternate
4 - 6 weeks
$187.12USD
$8.27 Shipping
311I-B-RB-7-CA/MR
GP:50 Model 311 Pressure Transducer, Intrinsically Safe, 0.5%, 150 psi, Sealed, Bendix PT1H, Alternate
4 - 6 weeks
$187.12USD
$8.27 Shipping
311I-B-RH-7-CA/MR
GP:50 Model 311 Pressure Transducer, Intrinsically Safe, 0.5%, 500 psi, Sealed, Bendix PT1H, Alternate
4 - 6 weeks
$187.12USD
$8.27 Shipping
311I-B-RZ-7-CA/MR
GP:50 Model 311 Pressure Transducer, Intrinsically Safe, 0.5%, 10,000 psi, Sealed, Bendix PT1H, Alternate
4 - 6 weeks
$187.12USD
$8.27 Shipping
311I-C-RD-2-CA/MR
GP:50 Model 311 Pressure Transducer, Intrinsically Safe, 0.2%, 200 psi, Gauge, Bendix PT1H, Alternate
4 - 6 weeks
$187.12USD
$8.27 Shipping
311GI-B-RZ-7-DT4
GP:50 Model 311 Pressure Transducer, Intrinsically Safe, 0.5%, 10,000 psi, Sealed Gauge, Mini Fast 4-Pin
4 - 6 weeks
$187.95USD
$8.27 Shipping
311Z-B-RB-2-CH
GP:50 Model 311 Pressure Transducer, Intrinsically Safe, 0.5%, 150 psi, Gauge, Vented Cable
4 - 6 weeks
$187.95USD
$8.27 Shipping
311I-B-RB-7-CA/FJ
GP:50 Model 311 Pressure Transducer, Intrinsically Safe, 0.5%, 150 psi, Sealed, Bendix PT1H, 1/4" MNPT
4 - 6 weeks
$192.09USD
$8.27 Shipping
