Images are representations only.
Description

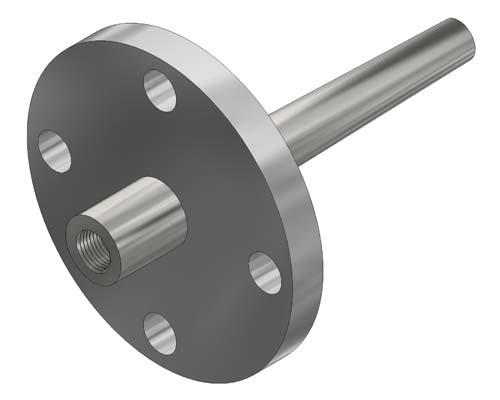

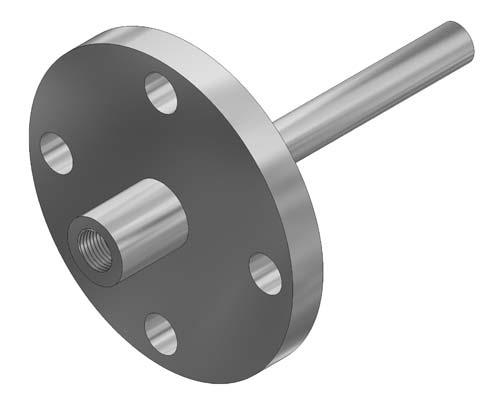

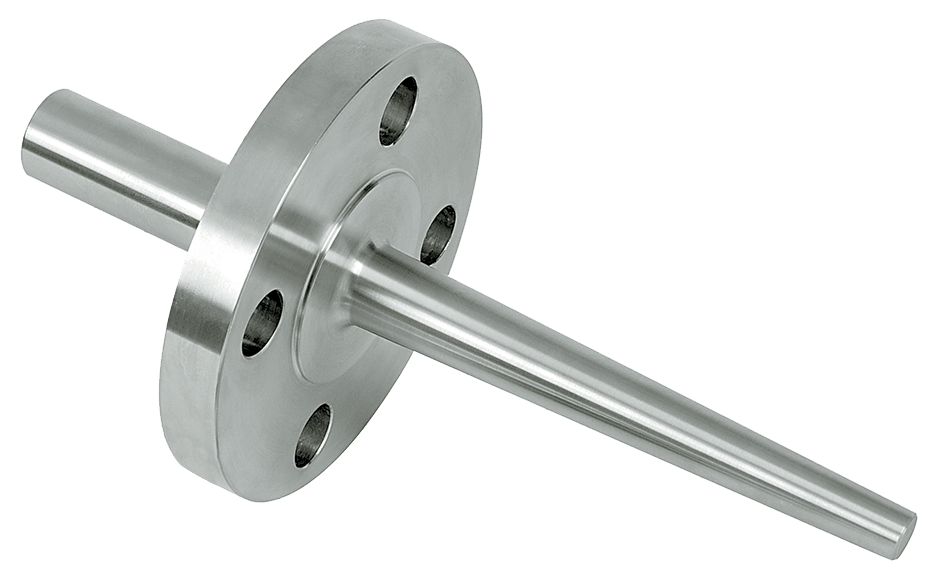

- Flanged Tapered Thermowell: Custom Lengths
- Flange Size: 1"-3" NPT
- Flange Material: 304 or 316 Stainless Steel
- Flange Rating: 150# to 2500#
- Flange Type: Raised Face, Flat Face, Ring Type Joint
- Materials: 304 or 316 Stainless Steel
Configure
F34/32
Thermowell Type

Material

Flange Material

Flange Rating

Flange Type

Flange Size

'U' Length

Specifications
Specifications
Bore Size
- 0.385" (9.78 mm)
Flange Material
- 304L Stainless Steel
- 316L Stainless Steel
Flange Size - 1" (DN25)
- 1" (DN25) - 150#
- 1" (DN25) - 1500#
- 1" (DN25) - 2500#
- 1" (DN25) - 300#
- 1" (DN25) - 600#
- 1" (DN25) - 900#
Flange Size - 1-1/2" (DN40)
- 1-1/2" (DN40) - 150#
- 1-1/2" (DN40) - 1500#
- 1-1/2" (DN40) - 2500#
- 1-1/2" (DN40) - 300#
- 1-1/2" (DN40) - 600#
- 1-1/2" (DN40) - 900#
Flange Size - 2" (DN50)
- 2" (DN50) - 150#
- 2" (DN50) - 1500#
- 2" (DN50) - 2500#
- 2" (DN50) - 300#
- 2" (DN50) - 600#
- 2" (DN50) - 900#
Flange Size - 2-1/2" (DN65)
- 2-1/2" (DN65) - 150#
- 2-1/2" (DN65) - 1500#
- 2-1/2" (DN65) - 2500#
- 2-1/2" (DN65) - 300#
- 2-1/2" (DN65) - 600#
- 2-1/2" (DN65) - 900#
Flange Size - 3" (DN80)
- 3" (DN80) - 150#
- 3" (DN80) - 1500#
- 3" (DN80) - 2500#
- 3" (DN80) - 300#
- 3" (DN80) - 600#
- 3" (DN80) - 900#
Flange Type
- Flat Face (FF)
- Raised Face (RF)
- RTJ - Ring Typical Joint
Materials of Construction
- 304L Stainless Steel
- 316L Stainless Steel
Documentation
Documentation
Catalogs
- Thermowell-Flanged-Straight-F32-D32-D33-2.pdf (/documents/Aircom-Instrumentation-Ltd/F34/32-Flanged-Thermowell/Thermowell-Flanged-Straight-F32-D32-D33-2-pdf) (421 KB)
- Thermowell-Flanged-Tapered-F34-D35-3.pdf (/documents/Aircom-Instrumentation-Ltd/F34/32-Flanged-Thermowell/Thermowell-Flanged-Tapered-F34-D35-3-pdf) (435 KB)
