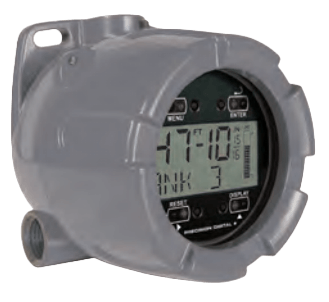

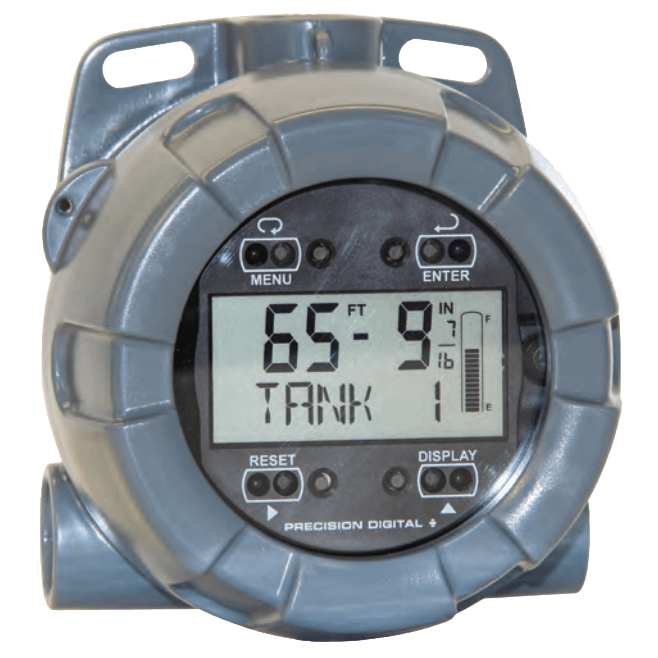

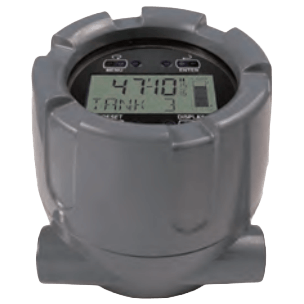

PD6701 Vantageview Loop-Powered F & I Level Meter

Brand: Precision Digital Corporation
The Vantageview PD6701 is one of Precision Digital's most advanced and feature-packed plastic, field-mounted, loop-powered indicators designed specifically for level applications that require a feet & inches display.

The PD6701 can indicate up to 399 feet, 11 and 15/16 (or 7/8) inches. The PD6701 is built in a NEMA 4X and IP65 rated plastic enclosure which can stand up to even the harshest environmental conditions. It features a dual-line display that can be easily scaled in the field for any 4-20 mA analog input.

Two features that really make the PD6701 stand out are its wide viewing angle display and SafeTouch® through-window buttons. These buttons allow the PD6701 tank-side indicator to be programmed and operated through the cover window, thus eliminating the need to remove the cover in dirty or wet environments.
Features
  • Display Level in Feet & Inches
  • 4-20 mA Input Loop-Powered
  • Programmable 1/8 or 1/16 Inch Display
  • 20-Segment Tank Level Indicator
  • Lower Display for Tag, Volume, or Percent
  • SafeTouch® Through-Window Button Programming
  • Open Collector Alarm Output
  • Password Protection
  • Flanges for Wall or Pipe Mounting
  • HART® Protocol Transparent
  • Loop-Powered or External DC-Powered Backlight Standard
  • 3.0 V Drop (6.0 V with Backlight)
  • NEMA 4X, IP65 Plastic Enclosure for Safe Areas
  • Operates from -40 to 75°C
show more
Images are representations only.
The Vantageview PD6701 is one of Precision Digital's most advanced and feature-packed plastic, field-mounted, loop-powered indicators designed specifically for level applications that require a feet & inches display.

The PD6701 can indicate up to 399 feet, 11 and 15/16 (or 7/8) inches. The PD6701 is built in a NEMA 4X and IP65 rated plastic enclosure which can stand up to even the harshest environmental conditions. It features a dual-line display that can be easily scaled in the field for any 4-20 mA analog input.

Two features that really make the PD6701 stand out are its wide viewing angle display and SafeTouch® through-window buttons. These buttons allow the PD6701 tank-side indicator to be programmed and operated through the cover window, thus eliminating the need to remove the cover in dirty or wet environments.
Features
  • Display Level in Feet & Inches
  • 4-20 mA Input Loop-Powered
  • Programmable 1/8 or 1/16 Inch Display
  • 20-Segment Tank Level Indicator
  • Lower Display for Tag, Volume, or Percent
  • SafeTouch® Through-Window Button Programming
  • Open Collector Alarm Output
  • Password Protection
  • Flanges for Wall or Pipe Mounting
  • HART® Protocol Transparent
  • Loop-Powered or External DC-Powered Backlight Standard
  • 3.0 V Drop (6.0 V with Backlight)
  • NEMA 4X, IP65 Plastic Enclosure for Safe Areas
  • Operates from -40 to 75°C

PD6701

Options

Specifications

Conduit Connection

  • 3/4" NPT

Deadband

  • 0 to 100% of Full Scale

Display

  • 0.60" High

Enclosure, Body Material

  • Polycarbonate with UV Stabilizer

Environmental Protection

  • IP65
  • IP66
  • NEMA 4X

Humidity

  • 0 to 90% Non-Condensing

Input

  • 4-20 mA

Operating Temperature

  • -40° to 75° C (-40° to 167° F)

Power

  • 0.25 W
  • 0.5 W
  • 0.75 W

Storage Temperature

  • -40° to 75° C (-40° to 167° F)

Supply Voltage

  • 9 to 36 Vdc

Voltage Drop

  • 3.0 Vdc at 20 mA with DC Powered Backlight
  • 6.0 Vdc at 20 mA with Loop-Powered Backlight
