605T Series Temperature Switch

Brand: Custom Control Sensors
  • Adjustable Set Point Range:
    • Increasing: -30°F to +420°F, -34°C to +216°C
    • Decreasing: -39°F to +414°F, -39°C to +212°C
  • Deadband: Approximately
    • At Bottom of Range: +9°F to +19°F, +5°C to +11°C
    • At Top of Range: +3°F to +6°F, +2°C to +4°C
  • Probe Temperature (Maximum): +250°F to +500°F, +121°C to +260°C
  • Wetted Materials:
    • Temperature Probe: 300 Stainless Steel, Nickel Plated Steel
    • O-Ring: Buna N or Silicone Rubber
  • Relay: SPDT or DPDT
  • UL, CE Mark, General Purpose
show more

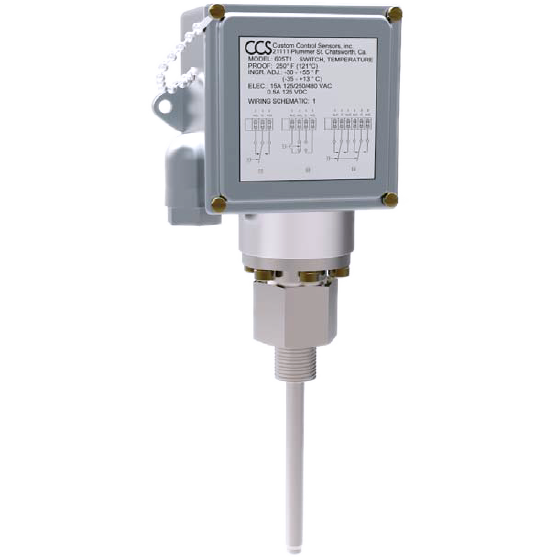

Images are representations only.
  • Adjustable Set Point Range:
    • Increasing: -30°F to +420°F, -34°C to +216°C
    • Decreasing: -39°F to +414°F, -39°C to +212°C
  • Deadband: Approximately
    • At Bottom of Range: +9°F to +19°F, +5°C to +11°C
    • At Top of Range: +3°F to +6°F, +2°C to +4°C
  • Probe Temperature (Maximum): +250°F to +500°F, +121°C to +260°C
  • Wetted Materials:
    • Temperature Probe: 300 Stainless Steel, Nickel Plated Steel
    • O-Ring: Buna N or Silicone Rubber
  • Relay: SPDT or DPDT
  • UL, CE Mark, General Purpose
605T1
CCS DUAL-SNAP Temperature Switch, Non-Hazardous Area, 1/2" NPT 300 SST Direct Mount Probe, Buna-N, SPDT
Out of Stock
605TJ3
CCS DUAL-SNAP Temperature Switch, Non-Hazardous Area, 1/2" NPT 300 SST Direct Mount Probe, SPDT, CSA
Out of Stock

605T

Base Model

Process Connection

Output

Electrical Contacts

Paint

Specifications

Adjustment Type

  • Field Adjustable

Approvals & Certifications

  • CCC
  • CE
  • CRN
  • CRN - Alberta
  • CRN - British Columbia
  • CRN - Saskatchewan
  • CSA
  • EMC
  • LVD
  • PED
  • RoHS

Deadband, Approximate - Bottom of Range

  • -13° to -7° C (9° to 19° F)
  • 5° to 12° C (41° to 54° F)

Deadband, Approximate - Top of Range

  • -16° to -14° C (3° to 6° F)
  • 2° to 8° C (36° to 46° F)

Electrical Connectors

  • Terminal Strip - Internal

Electrical Contacts

  • Gold
  • Silver

Electrical Rating

  • 1 A at 125 Vac, 50/60 Hz
  • 15 A at 125/250/480 Vac Resistive, 0.4 A at 125 DC, 0.2 A at 250 DC
  • 5 A at 125/250 Vac Resistive, 5 A at 28 DC, 0.5 A at 125 DC

Enclosure, Body Material

  • Aluminum

Environmental Protection

  • IP65
  • IP66
  • NEMA 13
  • NEMA 4, 13 / IP65, 66

Maximum Sensor, Probe Temperature

  • 121° to 260° C (250° to 500° F)

NACE & NIST

  • NACE MR-0175:2003

NPT Connection

  • 1/2" NPT Male

Operating Temperature

  • -40° to 86° C (-40° to 187° F)

O-Ring Material

  • Buna-N (Ranges 1, 2, 3)
  • Silicone Rubber (Ranges 4, 5)

Proof Pressure

  • bar: 103.4
  • kPa: 10,342
  • psig: 1,500

Sensor, Probe Material

  • Stainless Steel with Nickel-Plated Steel

Set Point - Decreasing

  • 1° to 100° C (34° to 212° F)
  • 101° to 250° C (214° to 482° F)
  • -39° to 212° C (-38° to 414° F)
  • -50° to 0° C (-58° to 32° F)

Set Point - Increasing

  • 1° to 100° C (34° to 212° F)
  • 101° to 250° C (214° to 482° F)
  • -34° to 216° C (-30° to 420° F)
  • -50° to 0° C (-58° to 32° F)

Standard Features

  • Internal Case Ground
  • Weatherproof

Switch Type

  • DPDT
  • SPDT

System Pressure

  • bar: 86
  • kPa: 8,618
  • psig: 1,250
