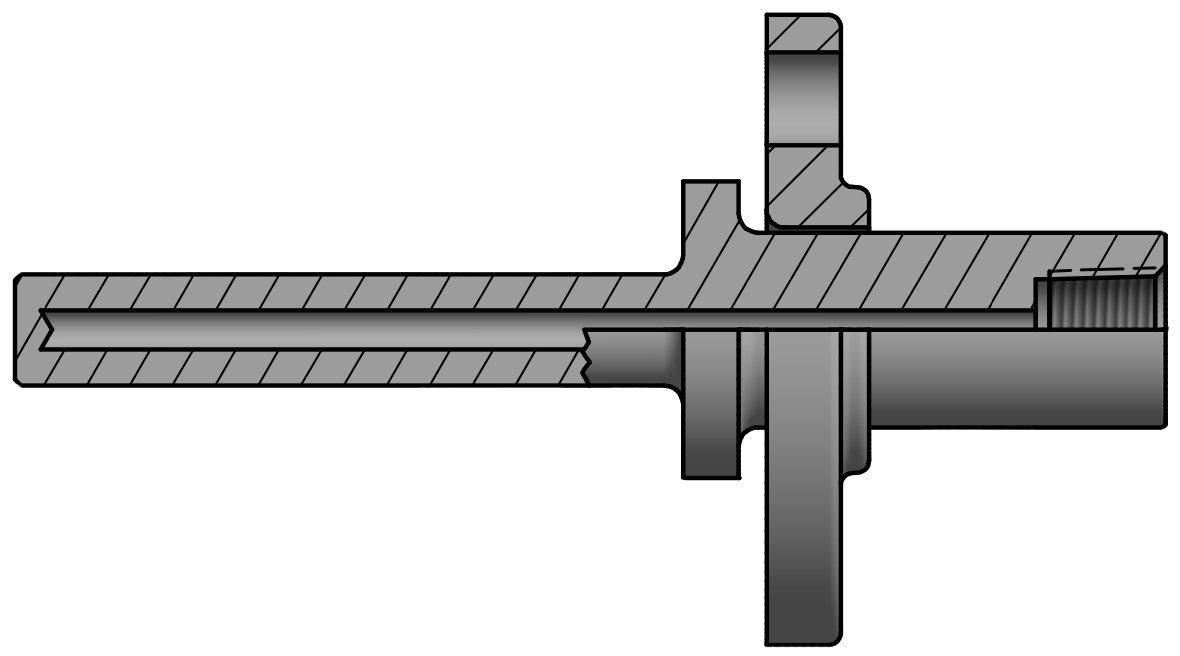

Straight Van Stone Thermowell

Brand: Pyromation
Straight Van Stone Thermowells are available in a variety of materials, flange sizes, and pressure ratings. They are also available in various lengths and with optional lagging extensions. Thermowell specifications should be determined based on process conditions which include strength, temperature, pressure and corrosion-resistance requirements.

Straight Van Stone thermowells are supplied with a 0.260" or 0.385" bore diameter to accommodate sensing elements with a 0.252" or 0.377" maximum diameter, respectively. Van Stone thermowells are connected using a separate and reusable lapped backing flange, eliminating the need for expensive flange materials.

These wells are available as separate components or as part of complete sensor assemblies.
show more
Straight Van Stone Thermowells are available in a variety of materials, flange sizes, and pressure ratings. They are also available in various lengths and with optional lagging extensions. Thermowell specifications should be determined based on process conditions which include strength, temperature, pressure and corrosion-resistance requirements.

Straight Van Stone thermowells are supplied with a 0.260" or 0.385" bore diameter to accommodate sensing elements with a 0.252" or 0.377" maximum diameter, respectively. Van Stone thermowells are connected using a separate and reusable lapped backing flange, eliminating the need for expensive flange materials.

These wells are available as separate components or as part of complete sensor assemblies.

Specifications

Brand

Bore Size

  • 0.260", 0.385"

Flange Size

  • 1" (DN25)
  • 1-1/2" (DN40)

Flange Type

  • Van Stone (lap joint)

Pressure Rating

  • Class 150
  • Class 300
  • Class 600
  • Class 900
  • Class 1500

Material of Construction

  • Well cap & chain: 316 stainless steel, brass
