PD8-6300 ProtEX-MAX Explosion-Proof Pulse Input Flow Rate/Totalizer

Brand: Precision Digital Corporation

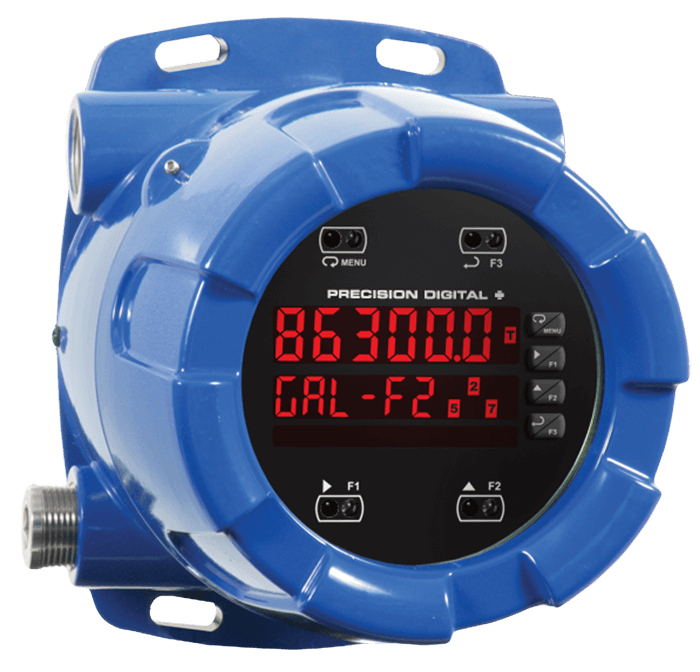

The ProtEX-MAX™ PD8-6300 offers all the functionality of the ProVu PD6300 as a fully FM, CSA, ATEX, and IECEx approved explosion-proof product. It is specifically designed to display flow rate and total from a pulse output (NPN, PNP, TTL, switch contact, sine wave, etc.) flowmeter.

It displays that signal on a dual-line, 6-digit Sunbright sunlight readable display. Flow rate is typically displayed on the upper line and the cumulative total is displayed on the lower line. The total overflow feature allows up to a 9-digit total and grand total to be displayed.

The PD8-6300 includes a 24 VDC power supply to drive the flowmeter and can be equipped with four internal relays and a 4-20 mA analog output.

It can be programmed and operated without opening the housing by using the built-in SafeTouch® through-glass buttons or the RS485 serial communication port with free Modbus® protocol.
Features
  • SunBright Display Standard
  • Displays rate and total simultaneously
  • 5, 10, or 24 VDC flowmeter power supply
  • Gate function for rate display of slow pulse rates
  • 4-20 mA output option converts the pulse input to an isolated 4-20 mA output
  • SafeTouch through-glass button programming
  • Modbus RS-485 serial communications
  • Flanges for wall or pipe mounting
  • Isolated 24 VDC @ 25 mA transmitter power supply
  • Onboard USB and MeterView® Pro programming software
show more
Images are representations only.
The ProtEX-MAX™ PD8-6300 offers all the functionality of the ProVu PD6300 as a fully FM, CSA, ATEX, and IECEx approved explosion-proof product. It is specifically designed to display flow rate and total from a pulse output (NPN, PNP, TTL, switch contact, sine wave, etc.) flowmeter.

It displays that signal on a dual-line, 6-digit Sunbright sunlight readable display. Flow rate is typically displayed on the upper line and the cumulative total is displayed on the lower line. The total overflow feature allows up to a 9-digit total and grand total to be displayed.

The PD8-6300 includes a 24 VDC power supply to drive the flowmeter and can be equipped with four internal relays and a 4-20 mA analog output.

It can be programmed and operated without opening the housing by using the built-in SafeTouch® through-glass buttons or the RS485 serial communication port with free Modbus® protocol.
Features
  • SunBright Display Standard
  • Displays rate and total simultaneously
  • 5, 10, or 24 VDC flowmeter power supply
  • Gate function for rate display of slow pulse rates
  • 4-20 mA output option converts the pulse input to an isolated 4-20 mA output
  • SafeTouch through-glass button programming
  • Modbus RS-485 serial communications
  • Flanges for wall or pipe mounting
  • Isolated 24 VDC @ 25 mA transmitter power supply
  • Onboard USB and MeterView® Pro programming software

PD8-6300

Power

Relay

Specifications

Accuracy

  • ± 0.03%

Approvals & Certifications

  • ATEX, II 2 GD Ex D IIC T* Gb Ex Tb IIIC T90° C Db
  • CSA Class I, Division 1, Groups B, C, D, Class II, Division 1, Groups E, F, G Class III, Division 1, Class I, Zone 1 Ex D IIC Zone 21 Ex Tb IIIC T90° C
  • FM Class I, Division 1, Groups B, C, D Class II, Division 1, Groups E, F, G Class III, Division 1, T5/T6 Class I, Zone 1, AEx D, IIC Gb T5/T6 Zone 21, AEx Tb IIIC T90° C
  • IEC Ex D IIC T* Gb Ex Tb IIIC T90° C Db

Communication

  • Modbus

Display

  • 6-Digit Display

Enclosure, Body Material

  • Aluminum

Environmental Protection

  • IP66
  • IP68
  • NEMA 4X
  • NEMA 7
  • NEMA 9

Input

  • ± 10 VCD
  • 0-20 mA
  • 4-20 mA

Operating Temperature

  • -40° to 65° C (-40° to 150° F)

Operating Voltages

  • 50/60 Hz

Power Supply

  • 12-36 Vdc
  • 85-265 Vac

Relay Output

  • 2 or 4 SPDT
  • 4 SPST

Update Time

  • 10 seconds
