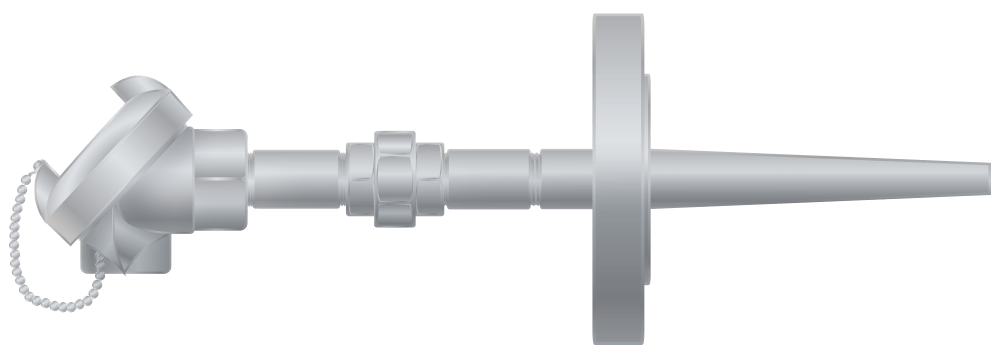

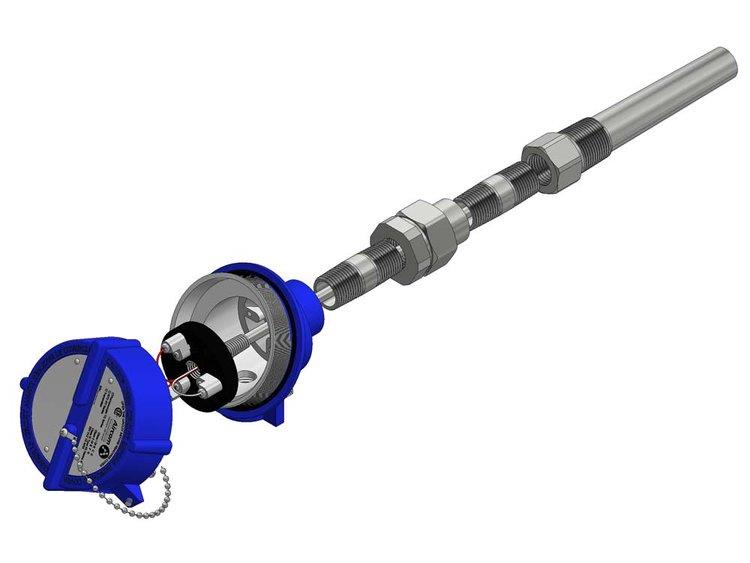

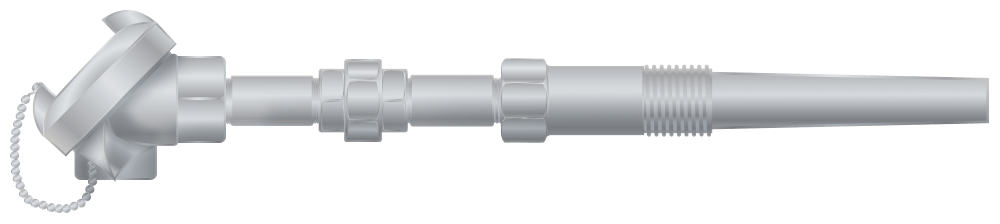

Images are representations only.
Description
Element:
- 100 Ohms Platinum
- 120 Ohms Nickel
- 10 Ohms Copper
- Single / Dual Elements
Number of Leadwires: 2 to 4 (Compensated Loop with 4)
Probe Diameter: 1.25 mm to 2.5 mm (1/8" to 1/4")
Temperature Rating:
- Low Temp 204°C (399°F Max.)
- High Temp 482°C (899°F Max.)
- High Temp and Vibration 850°C (1,562°F)
Connection Head:
- Explosion Proof: Class I, Div. I, Gr. A, B, C, D. Class II, Div. I, Gr. E, F, G. Class III
- General Purpose
- Non Hazardous
Indoor/Outdoor/Sanitary Material: 304 or 316 Stainless Steel
Flange Size: 3/4" NPT, 1" NPT
Inventory
21 models matching criteria
RT6-2AL-3.5-A-S-3-LT-1.75-9-316-34
AIRCOM RTD Assembly, Tapered Thermowell, Explosion Proof, Aluminum Connection Head, PT100, Single, 3-Wire, -50 to 260°C, 9" U, 316 SST, 3/4" NPT
Out of Stock
RT6-2AL-3-A-S-3-LT-1.75-6-316-1
AIRCOM RTD Assembly, Tapered Thermowell, Explosion Proof, Aluminum Connection Head, PT100, Single, 3-Wire, -50 to 260°C, 6" U, 316 SST, 1" NPT
Out of Stock
RT6-2ALT-4-A-S-3-LT-1.75-6-316-34
AIRCOM RTD Assembly, Tapered Thermowell, Explosion Proof, Aluminum Epoxy Connection Head, PT100, Single, 3-Wire, -50 to 260°C, 6" U, 316 SST, 3/4" NPT
Out of Stock
RT6-1AL-3-A-S-3-VT-1.75-6-316-34
AIRCOM RTD Assembly, Tapered Thermowell, Explosion Proof, Aluminum Connection Head, PT100, Single Element, 3-Wire, -50 to 482°C (Vibration Construction), 6" U, 316 SST, 3/4" NPT
Out of Stock
RT6-2AL-3-A-S-3-LT-1.75-12-316-1
AIRCOM RTD Assembly, Tapered Thermowell, Explosion Proof, Aluminum Connection Head, PT100, Single Element, 3-Wire, -50 to 260°C, 12" U, 316 SST, 1" NPT
Out of Stock
RT6-2AL-3-A-S-3-LT-1.75-2.3-316-34
AIRCOM RTD Assembly, Tapered Thermowell, Explosion Proof, Aluminum Connection Head, PT100, Single Element, 3-Wire, -50 to 260°C, 2.3" U, 316 SST, 3/4" NPT
Out of Stock
RT6-2AL-3-A-S-3-LT-1.75-2.5-316-34
AIRCOM RTD Assembly, Tapered Thermowell, Explosion Proof, Aluminum Connection Head, PT100, Single Element, 3-Wire, -50 to 260°C, 2.5" U, 316 SST, 3/4" NPT
Out of Stock
RT6-2AL-3-A-S-3-LT-1.75-2-316-34
AIRCOM RTD Assembly, Tapered Thermowell, Explosion Proof, Aluminum Connection Head, PT100, Single Element, 3-Wire, -50 to 260°C, 2" U, 316 SST, 3/4" NPT
Out of Stock
RT6-2AL-3-A-S-3-LT-1.75-3-316-1
AIRCOM RTD Assembly, Tapered Thermowell, Explosion Proof, Aluminum Connection Head, PT100, Single Element, 3-Wire, -50 to 260°C, 3" U, 316 SST, 1" NPT
Out of Stock
RT6-2AL-3-A-S-3-LT-1.75-4-316-1
AIRCOM RTD Assembly, Tapered Thermowell, Explosion Proof, Aluminum Connection Head, PT100, Single Element, 3-Wire, -50 to 260°C, 4" U, 316 SST, 1" NPT
Out of Stock
RT6-2AL-3-A-S-3-LT-1.75-4-316-34
AIRCOM RTD Assembly, Tapered Thermowell, Explosion Proof, Aluminum Connection Head, PT100, Single Element, 3-Wire, -50 to 260°C, 4" U, 316 SST, 3/4" NPT
Out of Stock
RT6-2AL-3-A-S-3-LT-1.75-5-316-34
AIRCOM RTD Assembly, Tapered Thermowell, Explosion Proof, Aluminum Connection Head, PT100, Single Element, 3-Wire, -50 to 260°C, 5" U, 316 SST, 3/4" NPT
Out of Stock
RT6-2AL-3-A-S-3-VT-1.75-6-316-34
AIRCOM RTD Assembly, Tapered Thermowell, Explosion Proof, Aluminum Connection Head, PT100, Single Element, 3-Wire, -50 to 482°C (Vibration Construction), 6" U, 316 SST, 3/4" NPT
Out of Stock
RT6-2SS-3-A-S-3-LT-1.75-10-316-1
AIRCOM RTD Assembly, Tapered Thermowell, Explosion Proof, 316 SST Connection Head, PT100, Single Element, 3-Wire, -50 to 260°C, 10" U, 316 SST, 1" NPT
Out of Stock
RT6-2SS-3-A-S-3-LT-1.75-12-316-1
AIRCOM RTD Assembly, Tapered Thermowell, Explosion Proof, 316 SST Connection Head, PT100, Single Element, 3-Wire, -50 to 260°C, 12" U, 316 SST, 1" NPT
Out of Stock
RT6-2SS-3-A-S-3-LT-1.75-2-316-34
AIRCOM RTD Assembly, Tapered Thermowell, Explosion Proof, 316 SST Connection Head, PT100, Single Element, 3-Wire, -50 to 260°C, 2" U, 316 SST, 3/4" NPT
Out of Stock
RT6-2SS-3-A-S-3-LT-1.75-3-316-1
AIRCOM RTD Assembly, Tapered Thermowell, Explosion Proof, 316 SST Connection Head, PT100, Single Element, 3-Wire, -50 to 260°C, 3" U, 316 SST, 1" NPT
Out of Stock
RT6-2SS-3-A-S-3-LT-1.75-4-316-34
AIRCOM RTD Assembly, Tapered Thermowell, Explosion Proof, 316 SST Connection Head, PT100, Single Element, 3-Wire, -50 to 260°C, 4" U, 316 SST, 3/4" NPT
Out of Stock
RT6-2SS-3-A-S-3-LT-1.75-6-316-34
AIRCOM RTD Assembly, Tapered Thermowell, Explosion Proof, 316 SST Connection Head, PT100, Single Element, 3-Wire, -50 to 260°C, 6" U, 316 SST, 3/4" NPT
Out of Stock
RT6-2SS-3-A-S-3-VT-1.75-2.5-316-34
AIRCOM RTD Assembly, Tapered Thermowell, Explosion Proof, 316 SST Connection Head, PT100, Single Element, 3-Wire, -50 to 482°C (Vibration Construction), 2.5" U, 316 SST, 3/4" NPT
Out of Stock
RT6-2SS-3-A-S-4-VT-1.75-1.5-316-12
AIRCOM RTD Assembly, Tapered Thermowell, Explosion Proof, 316 SST Connection Head, PT100, Single Element, 4-Wire, -50 to 482°C (Vibration Construction), 1.5" U, 316 SST, 1/2" NPT
Out of Stock
Configure
RT6
Connection Head
Connection Head Material
Connection Head Material
Connection Head Material
Connection Head Material
Union Length
Element Type
Number of Elements
Lead Wire Configuration
Temperature Rating
Thermowell Lag Length
Thermowell 'U' Length
Threaded Thermowell Material
Thermowell Process Connection
Specifications
Specifications
Conduit Connection
- 1/2" NPT Female
- 3/4" NPT Female
Element
- 10 ohms Copper 427 0.039 ohm / °C
- 100 ohms Platinum 385 ± 0.01%
- 100 ohms Platinum 385 ± 0.1%
- 100 ohms Platinum 392 ± 0.1%
- 120 ohms Nickel 627 0.806 ohm / °C
- Dual Elements
- Single Element
Materials of Construction
- 304 Stainless Steel
- 316 Stainless Steel
Process Connection Material
- Explosion-proof: Class 1, Groups B, C & D. Class II, Groups E, F, G., Aluminum, Iron, Stainless Steel or Epoxy Coated Aluminum Casing. 3/4" NPT Conduit, 1/2" NPT Process, Bakelite Termination, 1/2" NPT Extension (Many More Options Available)
- General-purpose: Non-Hazardous, Cast Aluminum, 3/4" NPT Conduit, 1/2" Process, Ceramix Composition, 1/2" NPT Extension (Many Options Available for Different Applications)
Process Temperature
- -200° to 850° C (-328° to 1,562° F)
Version/Leadwires
- 2-Wire
- 3-Wire
- 4-Wire
- 4-Wire Compensated Loop
Documentation
Documentation
Document
- RTD-Overview-RT0-C1-0.pdf (/documents/Aircom-Instrumentation-Ltd/RT6-RTD-Assembly/RTD-Overview-RT0-C1-0-pdf) (212 KB)
- RTD-Resistance-Table-RT0-C2-0.pdf (/documents/Aircom-Instrumentation-Ltd/RT6-RTD-Assembly/RTD-Resistance-Table-RT0-C2-0-pdf) (212 KB)
- RTD-Wiring-Configuration-RT0-C3-0.pdf (/documents/Aircom-Instrumentation-Ltd/RT6-RTD-Assembly/RTD-Wiring-Configuration-RT0-C3-0-pdf) (153 KB)
