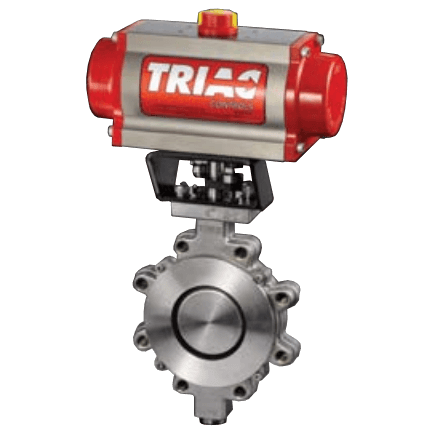

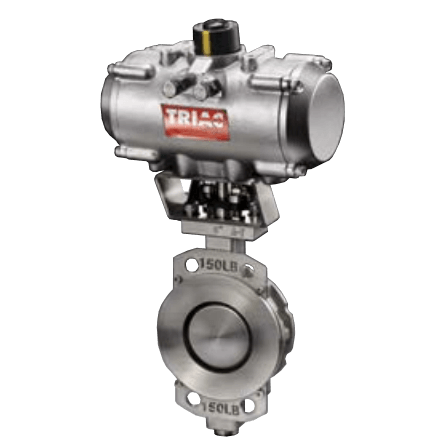

Series P1 Automated Butterfly Valve

Brand: A-T Controls, Inc.
Features:
  • Available inventory includes sizes 2" to 36".
  • Standard body materials are 316 Stainless Steel or WCB. Application specific options include: Alloy 20, Monel, CD3MN, Hastelloy® C-276, Inconel® 625, Aluminum Bronze, LCB and others.
  • ANSI/ASME Class 150 and 300 Lug and Wafer.
  • New & improved standard seat material: G2TFE. The new G2TFE seat contains 80% PTFE, 15% glass fiber and 5% molybdenum. The molybdenum is an element found in stainless steels which adds lubricity and longevity to the seat. Standard seat materials are G2TFE (soft seat), G2TFE/316L Stainless Steel (Firesafe), and 316L Stainless Steel (metal seat). Application specific seat materials include: 50/50 STFE, PTFE, TFM-1600 and Inconel® 625.
  • Standard Stem Material is 17-4 PH ®. Another option is XM-19.
  • Soft seat and Firesafe seat designs offer bubble-tight, bi-directional shutoff to full ANSI/ASME Class 150 and 300 standards. Metal seat design offers Class V shutoff.
  • Blow out proof stem design.
show more
Features:
  • Available inventory includes sizes 2" to 36".
  • Standard body materials are 316 Stainless Steel or WCB. Application specific options include: Alloy 20, Monel, CD3MN, Hastelloy® C-276, Inconel® 625, Aluminum Bronze, LCB and others.
  • ANSI/ASME Class 150 and 300 Lug and Wafer.
  • New & improved standard seat material: G2TFE. The new G2TFE seat contains 80% PTFE, 15% glass fiber and 5% molybdenum. The molybdenum is an element found in stainless steels which adds lubricity and longevity to the seat. Standard seat materials are G2TFE (soft seat), G2TFE/316L Stainless Steel (Firesafe), and 316L Stainless Steel (metal seat). Application specific seat materials include: 50/50 STFE, PTFE, TFM-1600 and Inconel® 625.
  • Standard Stem Material is 17-4 PH ®. Another option is XM-19.
  • Soft seat and Firesafe seat designs offer bubble-tight, bi-directional shutoff to full ANSI/ASME Class 150 and 300 standards. Metal seat design offers Class V shutoff.
  • Blow out proof stem design.

Specifications

Actuator Type

  • Gear Operator
  • Handwheel

Approvals & Certifications

  • ATEX 94/9/EC
  • CE 97/23/EC
  • CRN
  • FCI 70-2
  • IEC 61508:2010
  • ISO 5211

Approvals & Certifications

  • API-598/607/609
  • MSS-SP-25, MSS SP-55, MSS SP-67, MSS SP-68

Bearing Material

  • Bronze
  • Carbon Graphite
  • PTFE Composite

Cover Material

  • Stainless Steel - Bottom Cover, Belleville Washer Cover

Disc Material

  • Alloy 20 or Incoloy®
  • Aluminum Bronze
  • Carbon Steel (A351 Gr CF8M-316/HCr)
  • Disc Pin: Stainless Steel (A351 Gr CF8M-316 / HCr)
  • Hastelloy® C-276
  • Inconel® 625
  • Monel®

Enclosure, Body Material

  • 316L Stainless Steel
  • Alloy 20 or Incoloy®
  • Aluminum Bronze
  • Carbon Steel (A216-WCB/LCB)
  • Cast Stainless Steel (CD3MN)
  • Hastelloy® C-276
  • Inconel® 625
  • Monel®
  • Stainless Steel (A351 Gr CF8M-316)

Flange Size - 10" (DN250)

  • 10" (DN250) - 150#
  • 10" (DN250) - 300#

Flange Size - 12" (DN300)

  • 12" (DN300) - 150#
  • 12" (DN300) - 300#

Flange Size - 14" (DN350)

  • 14" (DN350) - 150#
  • 14" (DN350) - 300#

Flange Size - 16" (DN400)

  • 16" (DN400) - 150#
  • 16" (DN400) - 300#

Flange Size - 18" (DN450)

  • 18" (DN450) - 150#
  • 18" (DN450) - 300#

Flange Size - 2" (DN50)

  • 2" (DN50) - 150#
  • 2" (DN50) - 300#

Flange Size - 20" (DN500)

  • 20" (DN500) - 150#
  • 20" (DN500) - 300#

Flange Size - 2-1/2" (DN65)

  • 2-1/2" (DN65) - 150#
  • 2-1/2" (DN65) - 300#

Flange Size - 24" (DN600)

  • 24" (600) - 150#
  • 24" (600) - 300#

Flange Size - 26" (DN650)

  • 26" (DN650) - 150#
  • 26" (DN650) - 300#

Flange Size - 28" (DN700)

  • 28" (DN700) - 150#
  • 28" (DN700) - 300#

Flange Size - 3" (DN80)

  • 3" (DN80) - 150#
  • 3" (DN80) - 300#

Flange Size - 30" (DN750)

  • 3" (DN750) - 150#
  • 3" (DN750) - 300#

Flange Size - 32" (DN800)

  • 32" (DN800) - 150#
  • 32" (DN800) - 300#

Flange Size - 36" (DN900)

  • 36" (DN900) - 150#
  • 36" (DN900) - 300#

Flange Size - 4" (DN100)

  • 4" (DN100) - 150#
  • 4" (DN100) - 300#

Flange Size - 40" (DN1000)

  • 40" (DN1000) - 150#
  • 40" (DN1000) - 300#

Flange Size - 44" (DN1100)

  • 44" (DN1100) - 150#
  • 44" (DN1100) - 300#

Flange Size - 48" (DN1200)

  • 48" (DN1200) - 150#
  • 48" (DN1200) - 300#

Flange Size - 5" (DN125)

  • 5" (DN125) - 150#
  • 5" (DN125) - 300#

Flange Size - 6" (DN150)

  • 6" (DN150) - 150#
  • 6" (DN150) - 300#

Flange Size - 8" (DN200)

  • 8" (DN200) - 150#
  • 8" (DN200) - 300#

Flow Rate

  • 1 to 100,500 Cv - ANSI Class 150
  • 1 to 90,450 Cv - ANSI Class 300

Gasket Material

  • Graphite

Gland Material

  • 304 Stainless Steel

Gland Packing Material

  • Carbon Steel - Gland Packing Flange
  • Stainless Steel - Packing Gland Nuts & Studs

Materials of Construction

  • 304 Stainless Steel - Thrust Bearing
  • 410 Stainless Steel - Thrust Bearing
  • Carbon Steel - Bracket Washer, Bracket, Belleville Washers & Low/Upper Bearing
  • Metaloplast (316 Stainless Steel+RTFE) - Lower/Upper Bearing
  • Stainless Steel - Clamp Plate (Wafer Only), Belleville Washer Cover, Clamps

Mounting

  • ISO 5211

Nut & Bolt Material

  • Carbon Steel - Bracket Bolt
  • Stainless Steel - Clamps, Clamp Bolt, Nut, Stud, Packing Gland Nut/Stud/Flange

Override

  • Manual Override

Packing Material

  • Graphite
  • PTFE Chevron

Pressure Range

  • psi: 0 to 740 (kPa: 0 to 5,100, bar: 0 to 51)

Process Connection Style

  • Lug
  • Wafer

Ring Material

  • Carbon Steel - Retainer Ring

Seat / Seal Material

  • Seat Gasket: PTFE
  • Seat: 50/50 STFE
  • Seat: G2TFE
  • Seat: Inconel® 625
  • Seat: TFM-1600
  • Secondary Seat: 316L Stainless Steel (Firesafe & Metal Seat)

Shaft Material

  • 630 Stainless Steel (17-4 PH)
  • Inconel® 718
  • K-Monel®
  • Stainless Steel (XM-19 & Duplex 2205)

Stem Material

  • 630 Stainless Steel (17-4 PH)
  • K-Monel®
  • Stainless Steel (XM-19)

Temperature Range

  • -73° to 593° C (-100° to 1,100° F)

Torque

  • 195 to 3,59,988 In/Lbs - ANSI Class 150
  • 195 to 8,98,856 In/Lbs - ANSI Class 300

Valve Size

  • 2" to 48"
