Description

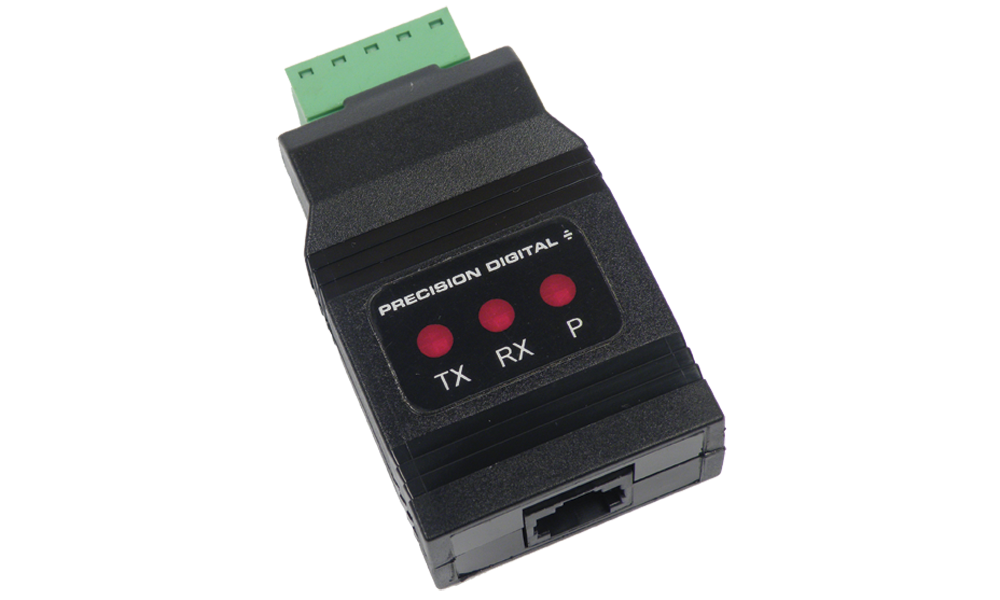

The PDA1485 converts the serial output of the ProVu meter to balanced, full or half-duplex RS-485 signals.
The PDA1485 has a removable screw terminal connector for the RS-485 terminals which includes Transmit Data (DO) and (/DO), Receive Data (DI) and (/DI), and Signal Ground. The adapter is provided by the ProVu meter M-Link connection.
The PDA1485 has three diagnostic LEDs: a Power (P) LED to show when the adapter is powered properly, a Transmit Data (TX) LED to show when the adapter is sending data out from the PC side, and a Receive Data (RX) LED to show when the adapter is receiving data from the ProVu meter.
Inventory
Specifications
Specifications
Compatibility
- EIA-485
Connectors
- Removable screw terminal connector and RJ45 (adapter to meter)
Cable
- 6’ (1.8 m) standard Cat5e cable provided with adapter
Distance
- Adapter to to ProVu meter: 6’ (1.8 m) max, Adapter to computer: 3,937’ (1,200 m) max
Power
- Powered by ProVu meter M-Link connection
Status Indication
- Separate LEDs for Power (P), Transmit (TX), and Receive (RX)
Documentation
Documentation
Instruction Manuals
Reviews (0)
Review this product and let us know your experiences
Write a ReviewQ & A (0)
Similar Products

PDA7422 Trident RS-485 Serial Adapter
Precision Digital Corporation

PDA8485 USB to RS-485 Converter
Precision Digital Corporation

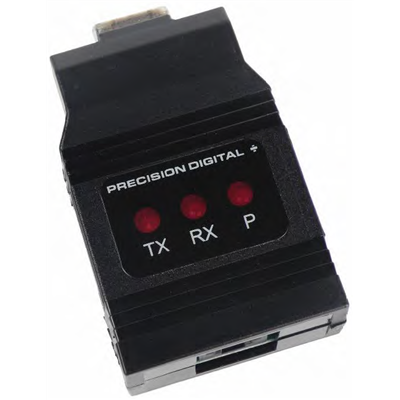

Serial Communication Converter & Adapter
Precision Digital Corporation

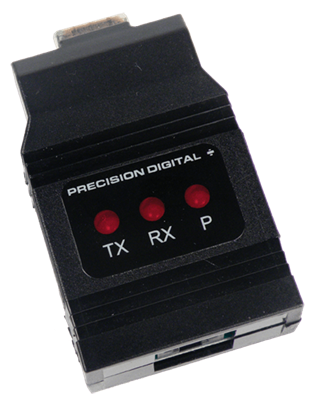

PDA7232 Trident RS-232 Serial Adapter
Precision Digital Corporation

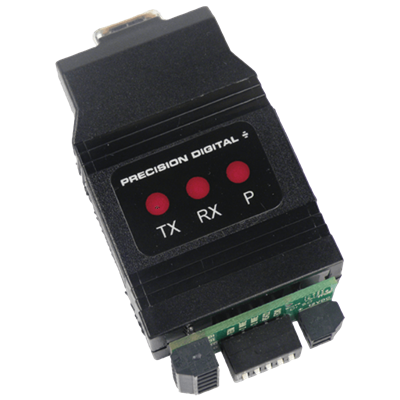

PDA7485 Converter
Precision Digital Corporation

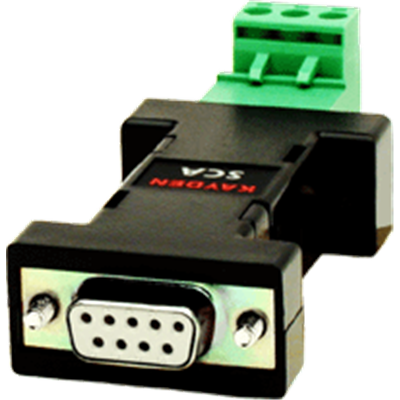

Serial Communication Adaptor RS-232 to RS-485, A15-321
Kayden Instruments

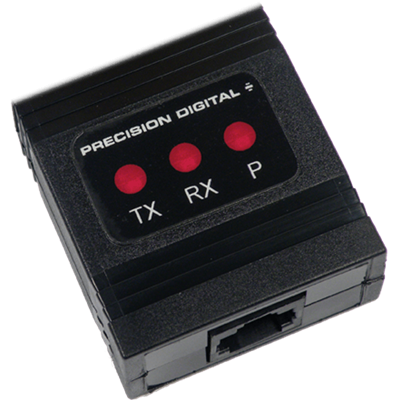

PDA8008 ProVu USB Serial Adapter
