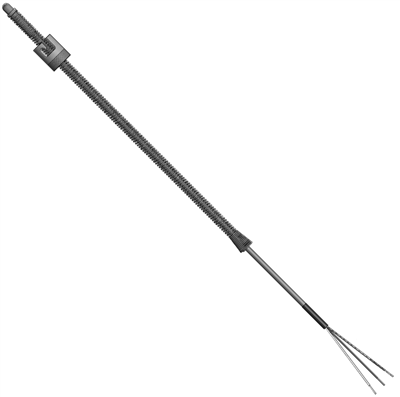

92 Series Spring Stainless Steel Nipple Union

Brand: International Metal Engineering (IME)
The 92 series are the ATEX and IECEx approved spring loaded stainless steel nipple union assemblies that can be used with any approved equipment or transmitter that offers at least the same level of protection. This allows the entire assembly to be ATEX and IECEx approved. The assembly has a 1/2" NPT thread at the probe end and a 1/2" NPT or M20 thread at the lead end (thread for flame lock). The probe end of the nipple union is threaded to accommodate an optional protection of the probe such as a thermowell.
show more
The 92 series are the ATEX and IECEx approved spring loaded stainless steel nipple union assemblies that can be used with any approved equipment or transmitter that offers at least the same level of protection. This allows the entire assembly to be ATEX and IECEx approved. The assembly has a 1/2" NPT thread at the probe end and a 1/2" NPT or M20 thread at the lead end (thread for flame lock). The probe end of the nipple union is threaded to accommodate an optional protection of the probe such as a thermowell.

Specifications

Approvals & Certifications

  • ATEX
  • CE
  • Ex: II 2 GD, Exd IIC T6 Gb, Ex Tb IIIC T85° C Db, IP68 Ta = -40° to 70° C
  • IECEx D IIC T6 Gb, Ex Tb IIIC T85° C Db, IP68 Ta = -40° to 70° C

Element

  • Dual Elements
  • Single Element

Environmental Protection

  • IP68

Length

  • N Length: 2 to 7" (50.8 to 177.8 mm)
  • OLA Length: 3 to 8" (76.2 to 203.2 mm)

Materials of Construction

  • Nipple: Stainless Steel

Metric Connection

  • Thread for Flame Lock: M20 x 1.5 Male

NPT Connection

  • Thread for Flame Lock: 1/2" NPT Male

RTD Type

  • Pt100

Sensor, Probe Connection

  • 3-Wire
  • 4-Wire

Sensor, Probe Diameter

  • 0.23" (6 mm)
  • 0.25" (6.4 mm)

Sensor, Probe Type

  • E Thermocouple
  • J Thermocouple
  • K Thermocouple
  • RTD
  • R Thermocouple
  • S Thermocouple
  • T Thermocouple
