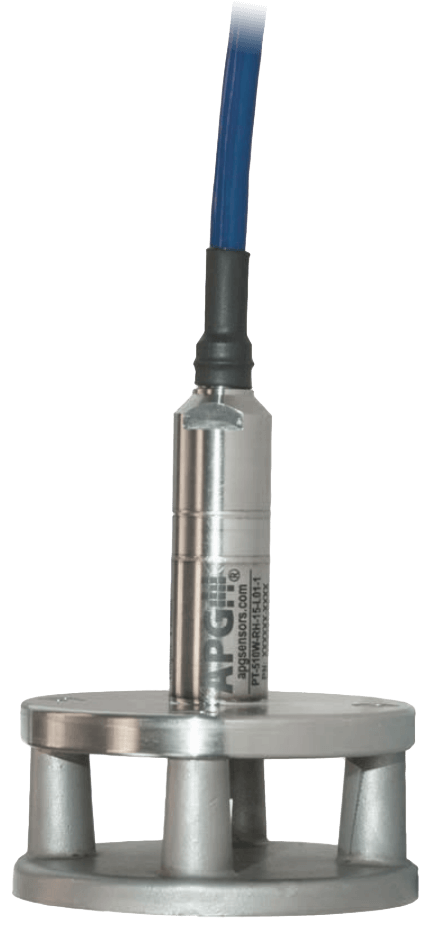

PT-510/510W Submersible Liquid Level Transmitter

Brand: Automation Products Group Inc. (APG)
The PT-510 and PT-510W are rugged submersible pressure transmitters designed for tank liquid level measurement, water and wastewater applications, and well depth measurement.
Features
  • Simple to install
  • High precision, solid state signal: 4-20 mA
  • Removable nose cone for clean liquids
  • Welded steel cage suitable for wastewater
  • Durable transducer face
show more
The PT-510 and PT-510W are rugged submersible pressure transmitters designed for tank liquid level measurement, water and wastewater applications, and well depth measurement.
Features
  • Simple to install
  • High precision, solid state signal: 4-20 mA
  • Removable nose cone for clean liquids
  • Welded steel cage suitable for wastewater
  • Durable transducer face

Specifications

Accuracy

  • Accuracy (Linearity, Hysteresis & Repeatability): ± 0.50% of Span (BFSL)

Applications

  • Tank Liquid Level Measurement
  • Water & Wastewater Applications
  • Well Depth Measurement

Cable Length

  • 15 to 20 psi: 60 feet (18.3 meters)
  • 5 to 10 psi: 40 feet (12.2 meters)

Cable Material

  • Hytrel
  • Polyurethane
  • PVC

Cone Material

  • Nose Cone: PVC for PT-510

Current

  • Current Draw: 3-30 mA

Electrical Connectors

  • Vented Watertight Cable with Free Ends up to 200 Lbs Tensile Strength

Enclosure, Body Material

  • Stainless Steel (18-8)

Operating Temperature

  • -20° to 85° C (-4° to 185° F)

Output

  • 4-20 mA, 2-Wire

Pressure Range

  • bar: 0 to 1.379
  • kPa: 0 to 137.9
  • psi: 0 to 20

Seat / Seal Material

  • Seal: Neoprene Rubber

Sensor, Probe Material

  • Sensor Housing: Stainless Steel (18-8)

Supply Voltage

  • 11-30 Vdc

Temperature Effect

  • Zero & Span: ≤ 0.025% of Full Scale / °F at 21.1° C (70° F)

Wetted Materials

  • Protective Cage: Stainless Steel (18-8) for PT-510W
