PD6820 ProtEX-RTA Explosion-Proof Loop-Powered Flow Rate/Totalizer

Brand: Precision Digital Corporation

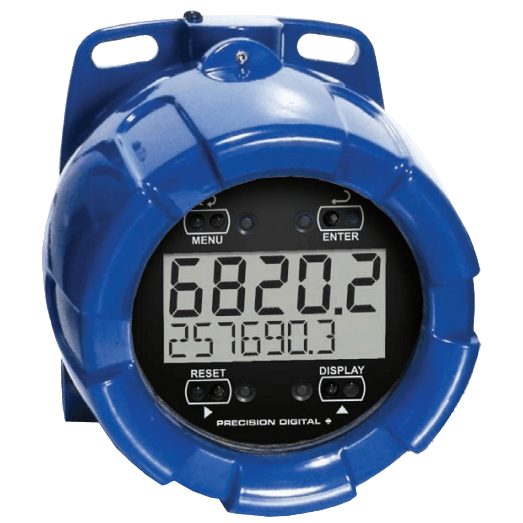

The ProtEX-RTA PD6820 is an explosion-proof, loop-powered flow rate/totalizer that can display flow rate and total from an Analog output (4-20 mA) flowmeter.

The display has a five digit upper display for rate, a seven alpha-numeric character lower display for total, and comes standard with a backlight. Like all ProtEX products, the PD6820 explosion-proof flow rate/totalizer carries FM, CSA, ATEX, and IECEx approvals for use in hazardous areas.

Two features that really make this flow rate/totalizer stand out are a wide viewing angle display and SafeTouch®through-glass buttons. These buttons allow the PD6820 to be programmed and operated through the glass, thus eliminating the need to remove the cover in a hazardous area.
Features
  • 4-20 mA input loop-powered
  • Modern, sleek and practical enclosure 5-digit, 0.7" (17.8 mm) upper display
  • 7 alphanumeric character, 0.4" (10.2 mm) lower display
  • 7-Digit totalizer
  • Safetouch through-glass button programming
  • Password protection
  • 32-Point, square root, or exponential linearization
  • Rate in units per second, minute, hour, or day
  • Open collector pulse or alarm output
  • Loop or external DC-powered backlight standard
  • 3.0 V drop (6.0 V with backlight)
  • Flanges for wall or pipe mounting
  • HART protocol transparent
  • Operates from -40° to 75° C (-40° to 167° F)
show more
Images are representations only.
The ProtEX-RTA PD6820 is an explosion-proof, loop-powered flow rate/totalizer that can display flow rate and total from an Analog output (4-20 mA) flowmeter.

The display has a five digit upper display for rate, a seven alpha-numeric character lower display for total, and comes standard with a backlight. Like all ProtEX products, the PD6820 explosion-proof flow rate/totalizer carries FM, CSA, ATEX, and IECEx approvals for use in hazardous areas.

Two features that really make this flow rate/totalizer stand out are a wide viewing angle display and SafeTouch®through-glass buttons. These buttons allow the PD6820 to be programmed and operated through the glass, thus eliminating the need to remove the cover in a hazardous area.
Features
  • 4-20 mA input loop-powered
  • Modern, sleek and practical enclosure 5-digit, 0.7" (17.8 mm) upper display
  • 7 alphanumeric character, 0.4" (10.2 mm) lower display
  • 7-Digit totalizer
  • Safetouch through-glass button programming
  • Password protection
  • 32-Point, square root, or exponential linearization
  • Rate in units per second, minute, hour, or day
  • Open collector pulse or alarm output
  • Loop or external DC-powered backlight standard
  • 3.0 V drop (6.0 V with backlight)
  • Flanges for wall or pipe mounting
  • HART protocol transparent
  • Operates from -40° to 75° C (-40° to 167° F)

Specifications

Approvals & Certifications

  • ATEX II 2 GD. Ex D IIC T6 Gb. Ex Tb IIIC T85° C Db IP68. Ta = -40° to 75° C, Certificate Number: Sira 10-ATEX-1116X
  • CSA Class I, Division 1, Groups B, C, D, Class II, Division 1, Groups E, F, G, Class III, Division 1, T6. Class I, Zone 1, Ex D IIC T6. Ta = -40° to 75° C. Enclosure: Typical 4X & IP66. Certificate Number: 11 2325749
  • FM Explosion-proof for use in Class I, Division 1, Groups B, C, D, Class II, Division 1, Groups E, F, G, Class III, Division 1, T6. Class I, Zone 1, AEx D IIC T6 Gb. Zone 21, AEx Tb IIIC T85° C. Ta = -40° to 75° C. Enclosure: Typical 4X & IP66. Certificat
  • IEC Ex D IIC T6 Gb. Ex Tb IIIC T85° C Db IP68. Ta = -40° to 75° C, Certificate Number: IECEx SIR 10.0056X

Environmental Protection

  • IP66
  • IP68
  • NEMA 4X

Display

  • Upper: Five digits (-9,999 to 99,999) 0.70" (17.8 mm) high, 7-segment, automatic lead zero blanking.
  • Symbols: for high & low alarm, password lock. Backlight: white
  • Lower: Seven characters 0.4" (10.2 mm) high, 14 segment alphanumeric.

Display Update Rate

  • Ambient > -25° C: 2 Updates/Second. Ambient -25° C: 2 Updates/Second. Ambient < -25° C: 1 Update/5 Seconds

Display Orientation

  • Display may be mounted at 90° increments up to 270° from default orientation

Overrange

  • Display flashes 99,999

Underrange

  • Display flashes -9,999

Programming Method

  • Four SafeTouch® through-glass buttons when cover is installed. Four internal pushbuttons when cover is removed.

Noise Filter

  • Programmable Lo, Med, Hi, or Off

Recalibration

  • Recalibration is recommended at least every 12 months

Max/Min Display

  • Max/Min readings reached by the process are stored until reset by the user or until power to the meter is turned off.

Password

  • Programmable password restricts modification of programmed settings.

Advanced Functions

  • Live input calibration, linearization, square root, or programmable exponent

Non-Volatile Memory

  • All programmed settings are stored in non-volatile memory for a minimum of ten years if power is lost.

Normal Mode Rejection

  • 64 dB at 50/60 Hz

Operating Temperature Range

  • -40 to 75° C

Storage Temperature Range

  • -40 to 85° C.

Relative Humidity

  • 0 to 90% non-condensing

Connections

  • Screw terminals accept 12 to 22 AWG wire

Enclosure

  • Explosion-proof die-cast aluminum with glass window, corrosion resistant epoxy coating, color: blue. NEMA 4X IP68. Copper-free (0.3%). Two 3/4" NPT threaded conduit openings. One 3/4" NPT metal conduit plug with 12 mm hex key fitting installed.

Mounting

  • May be mounted directly to conduit. Two Slotted flanges for wall mounting or NPS 11/2" to 21/2" or DN 40 to 65 mm pipe mounting.

Overall Dimensions

  • 5.65" x 5.25" x 4.86" (W x H x D) (144 mm x 133 mm x 124 mm)

Weight

  • 5.00 lbs (80 oz, 2.27 kg)

Warranty

  • 3 years parts and labor
