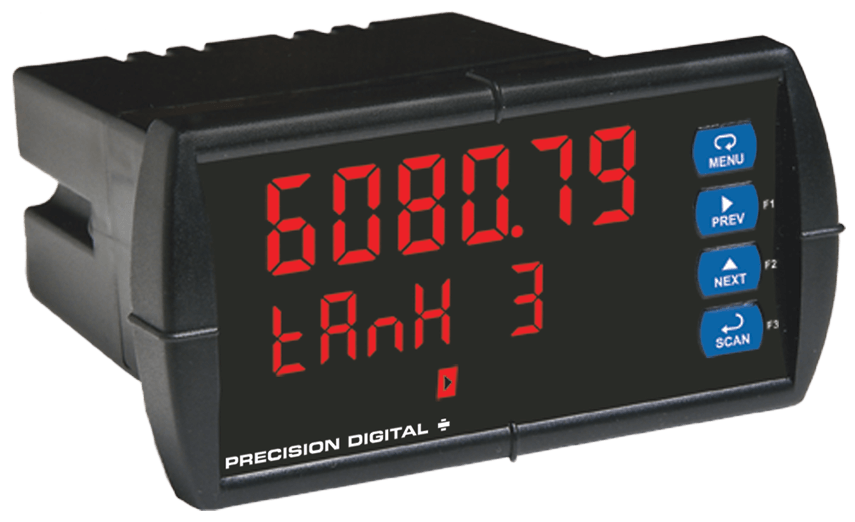

PD6080 ProVu Decimal Display Modbus Scanner

Brand: Precision Digital Corporation
The ProVu PD6080 Super Snooper Modbus® scanner is a multi-purpose display and controller capable of scanning up to 16 Modbus process variables and accepts two analog process inputs.

The scanner can be programmed as a Modbus RTU master, slave, or snooper. It is the ideal display for Modbus multivariable transmitters or for existing Modbus networks with transmitters in need of an easy-to-read and conveniently located remote display.

As a master, the PD6080 can read up to 16 Modbus registers on up to 16 Modbus devices and automatically alternate each of these process variables (PVs) on the dual-line display along with a unit and tag for each. In snooper mode, the PD6080 can read any Modbus variable being polled by a master, which allows you to easily add a display into an existing Modbus network.

Like all ProVu meters, the PD6080 includes UL / C-UL listing and CE marking, a NEMA 4X front, and AC or DC power options. Powerful math functions may be applied to the analog or Modbus inputs, such as addition, difference, average, and ratio.
Features
  • Modbus® RS-485 RTU Serial Communications as Master, Slave, or Snooper
  • RS-485 Serial Communications Standard
  • Decimal Display • Scan up to 16 Modbus Process Variables
  • Dual Analog Inputs (0-20 mA, 4-20 mA, 0-5 V, 1-5 V, and ±10 V)
  • Addition, Difference, Average, Multiplication, Division, Min, Max, Weighted Average, Ratio, Concentration, & More
  • Large Dual-Line 6-Digit Display, 0.60" & 0.46"
  • Sunlight Readable Display Standard
  • NEMA 4X, IP65 Front • Universal 85-265 Vac, or 12/24 Vdc Input Power Models
  • Isolated 24 Vdc @ 200 mA Transmitter Power Supply
  • Programmable Display & Function Keys
  • 32-Point, Square Root, or Exponential Linearization
  • Multi-Pump Alternation Control
  • 2 or 4 Relays + Isolated 4-20 mA Output Options
  • External 4-Relay & Digital I/O Expansion Modules
  • Configure, Monitor, and Datalog from a PC with Free ScanView Software
show more
Images are representations only.
The ProVu PD6080 Super Snooper Modbus® scanner is a multi-purpose display and controller capable of scanning up to 16 Modbus process variables and accepts two analog process inputs.

The scanner can be programmed as a Modbus RTU master, slave, or snooper. It is the ideal display for Modbus multivariable transmitters or for existing Modbus networks with transmitters in need of an easy-to-read and conveniently located remote display.

As a master, the PD6080 can read up to 16 Modbus registers on up to 16 Modbus devices and automatically alternate each of these process variables (PVs) on the dual-line display along with a unit and tag for each. In snooper mode, the PD6080 can read any Modbus variable being polled by a master, which allows you to easily add a display into an existing Modbus network.

Like all ProVu meters, the PD6080 includes UL / C-UL listing and CE marking, a NEMA 4X front, and AC or DC power options. Powerful math functions may be applied to the analog or Modbus inputs, such as addition, difference, average, and ratio.
Features
  • Modbus® RS-485 RTU Serial Communications as Master, Slave, or Snooper
  • RS-485 Serial Communications Standard
  • Decimal Display • Scan up to 16 Modbus Process Variables
  • Dual Analog Inputs (0-20 mA, 4-20 mA, 0-5 V, 1-5 V, and ±10 V)
  • Addition, Difference, Average, Multiplication, Division, Min, Max, Weighted Average, Ratio, Concentration, & More
  • Large Dual-Line 6-Digit Display, 0.60" & 0.46"
  • Sunlight Readable Display Standard
  • NEMA 4X, IP65 Front • Universal 85-265 Vac, or 12/24 Vdc Input Power Models
  • Isolated 24 Vdc @ 200 mA Transmitter Power Supply
  • Programmable Display & Function Keys
  • 32-Point, Square Root, or Exponential Linearization
  • Multi-Pump Alternation Control
  • 2 or 4 Relays + Isolated 4-20 mA Output Options
  • External 4-Relay & Digital I/O Expansion Modules
  • Configure, Monitor, and Datalog from a PC with Free ScanView Software

PD6080

Power

24 V Transmitter power supply standard on all models

Relay

Specifications

Approvals & Certifications

  • UL

Deadband

  • 0 to 100% of Span

Environmental Protection

  • IP65
  • IP66
  • NEMA 4X

Function

  • Absolute Difference
  • Addition
  • Average
  • Concentration
  • Difference
  • Division
  • Draw
  • Multiplication
  • Ratio
  • Weighted Average

Humidity

  • 0 to 90% Non-Condensing

Input

  • Two Channel

Isolation

  • 4 kV Input/Output-to-Power-Line
  • 500 V Input to Output or Output to P+ Supply

Mounting

  • 1/8" DIN

Operating Temperature

  • -40° to 65° C (-40° to 150° F)

Output

  • 4-20 mA

Relay Output

  • 2 or 4 SPDT
  • 4 SPST

Supply Voltage

  • 90-265 Vdc

Torque

  • 5 In/Lbs
