Images are representations only.

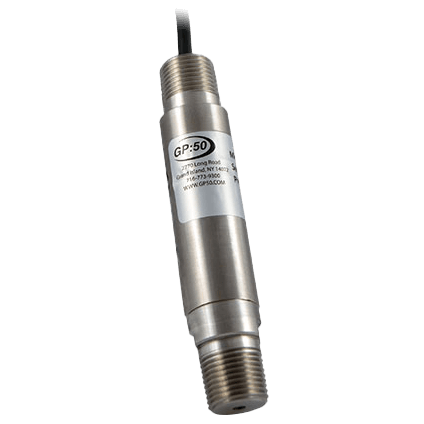

Model 340/P/AP/N/AN/I/AI Pressure Transducer

Brand: GP:50 New York Ltd.
  • Output Signal: 0 to 5 Vdc, 4-20 mA
  • Excitation Voltage: 10 to 28 Vdc
  • Pressure Range: 0 to 15,000 psi, (0 to 1,034 bar, 0 to 103,421 kPa)
  • Burst Pressure: 5 times FSO
  • Proof Pressure: 2 times FSO
  • Electrical Connections: 1/2" Male NPT conduit with 6 foot 18 AWG multi-conductor cable
  • Process Connection: 1/4" Male NPT
  • Temperature Range:
    • Compensated: -18° to 82° C (0° to 180° F)
    • Operating: -40° to 80° C (-40° to 176° F)
    • Storage: -53° to 121° C (-65° to 250° F)
    • Effect on Zero/Span: ±2.0% Full ScaleO at 100 °F
  • Static Accuracy: ±0.5%
  • Materials of Construction:
    • Housing: 316 Stainless Steel
    • Wetted parts: 17-4 PH Stainless Steel
show more
  • Output Signal: 0 to 5 Vdc, 4-20 mA
  • Excitation Voltage: 10 to 28 Vdc
  • Pressure Range: 0 to 15,000 psi, (0 to 1,034 bar, 0 to 103,421 kPa)
  • Burst Pressure: 5 times FSO
  • Proof Pressure: 2 times FSO
  • Electrical Connections: 1/2" Male NPT conduit with 6 foot 18 AWG multi-conductor cable
  • Process Connection: 1/4" Male NPT
  • Temperature Range:
    • Compensated: -18° to 82° C (0° to 180° F)
    • Operating: -40° to 80° C (-40° to 176° F)
    • Storage: -53° to 121° C (-65° to 250° F)
    • Effect on Zero/Span: ±2.0% Full ScaleO at 100 °F
  • Static Accuracy: ±0.5%
  • Materials of Construction:
    • Housing: 316 Stainless Steel
    • Wetted parts: 17-4 PH Stainless Steel
340-C-RB-2-CA/IM/MR
GP:50 Model 340 Blender Discharge Pressure Transducer, 0.2%, 150 psi, Gauge, Bendix PT1H, Alternate
Out of Stock
$184.83USD
$8.03 Shipping
340-C-SZ-2-CA/IM
GP:50 Model 340 Blender Discharge Pressure Transducer, 0.2%, Other psi, Guage, Bendix PT1H
Out of Stock
$184.83USD
$8.03 Shipping

Specifications

Accuracy

  • ± 0.2% of Full Scale Output
  • ± 0.5% of Full Scale Output

Burst Pressure

  • 5 times Full Scale Output

Compensated Temperature

  • -17° to 82° C (0° to 180° F)

Electrical Connectors

  • 1/2" NPT Male Conduit with 6 feet of 18 AWG Multiconductor Cable

Electromagnetic Interference Effect

  • EMC Directive 2004/108/EC, EN 61326 Emission

Enclosure, Body Material

  • 316 Stainless Steel

Excitation Voltage

  • 10-28 Vdc

Insulation Resistance

  • > 10 MegaOhms at 50 Vdc & 21° C (70° F)

Load Impedance

  • 750 ohms Maximum

NPT Connection

  • 1/4" NPT Male

Operating Temperature

  • -40° to 80° C (-40° to 176° F)

Output

  • 0-5 Vdc
  • 4-20 mA

Pressure Range

  • bar: 0 to 1,034
  • kPa: 0 to 103,421
  • psi: 0 to 15,000

Pressure Type

  • Absolute
  • Gauge
  • Sealed Gauge
  • Vacuum

Proof Pressure

  • 2 times Full Scale Output

Span & Zero Effect

  • <± 2.0% of Full Scale Output at 38° C (100° F)

Storage Temperature

  • -53° to 121° C (-65° to 250° F)

Wetted Materials

  • 630 Stainless Steel

Zero Balance

  • ± 1% of Full Scale Output at 21.1° C (70° F)
